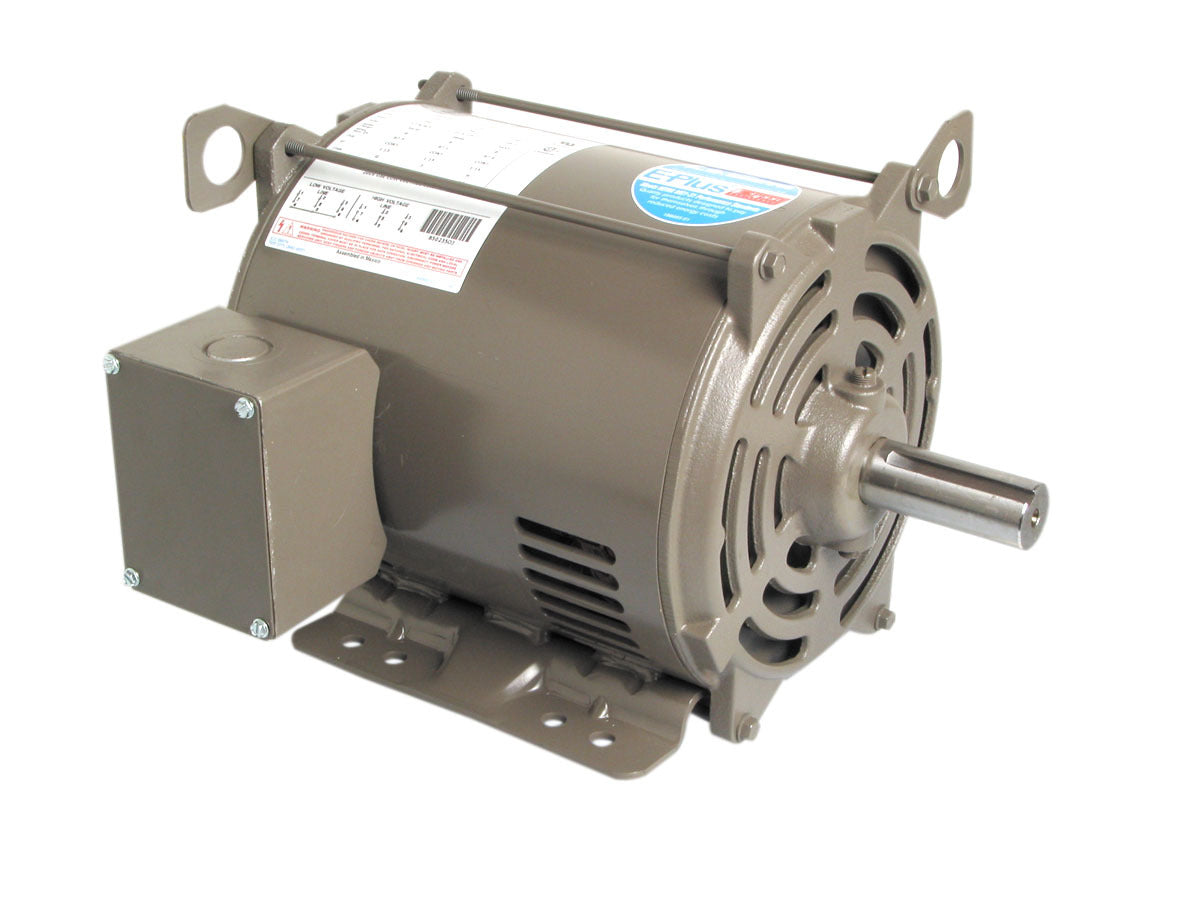

Century UE207V1 General Purpose Motor 2 HP 230/460V 184T

Product Description

The Century UE207V1 general purpose motor is designed for various industrial applications. This three-phase motor provides reliable performance with 2 horsepower and operates at 230/460 volts.

• [Electrical Type] Polyphase
• [HP] 2 [KW] 1.5
• [RPM] 1180 [Frame] 184T

Product Highlights

The Century UE207V1 motor offers rolled steel construction, making it durable for long-term use. It meets or exceeds all USA mandated efficiencies and features a drip-proof enclosure. With a reversible rotation and rigid base mounting, it ensures versatile application in various settings.

Product Information

Standard Information

• Brand: Century
• MPN: UE207V1
• Type: General Purpose Motor
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Polyphase
• HP: 2
• KW: 1.5
• RPM: 1180
• Frame: 184T
• Enclosure: Drip Proof
• Phase: Three
• Voltage: 230/460
• Rotation: Reversible
• Overload Protector: None
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: Rigid Base
• Amperage: 7.15/3.6
• Shaft Type: Keyed
• Shaft Extension: 2.81 inches
• Shaft Diameter: 1.125 inches
• Ambient Temperature: 40°C
• Frequency: 60
• Insulation Class: F
• Poles: 6
• Service Factor: 1.15
• Duty: Continuous
• Certifications: UL Recognized, CE, CSA
• Additional Data: Data Pack
