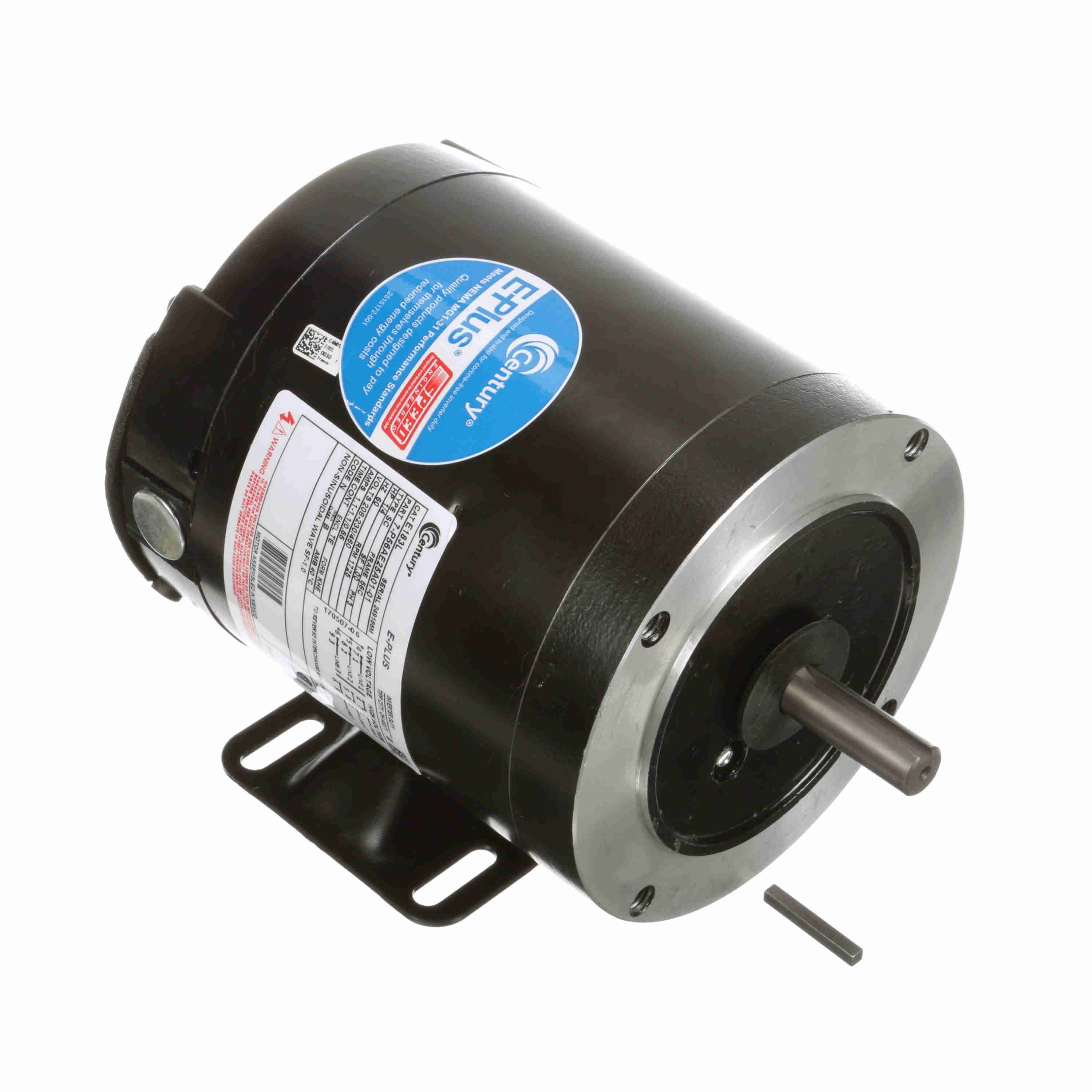

Century UE183L Inverter Duty Motor Polyphase 1/4 HP 208-230/460 V

Product Description

The Century UE183L Inverter Duty Motor offers reliable performance for various industrial applications. Built with a polyphase, induction type, this motor can handle single or dual voltage operations. With an output power of 1/4 HP, it achieves 1725 RPM on a 56C frame.

• Polyphase, Induction Type
• Single or Dual Voltage
• 208-230/460 Voltage

Product Highlights

This motor is made with rolled steel and features a totally enclosed non-ventilated (TENV) design, providing durability and protection from environmental elements. Its reversible counterclockwise rotation and keyed shaft make it adaptable for numerous uses.

Product Information

Standard Information

• Brand: Century
• MPN: UE183L
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• HP: 1/4
• KW: 0.19
• RPM: 1725
• Frame: 56C
• Diameter: 6.5
• Enclosure: Totally Enclosed Non Ventilated
• Phase: 3
• Voltage: 208-230/460
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 1.1-1.1/0.55
• Shaft Type: Keyed
• Shaft Extension: 2.07
• Shaft Diameter: 0.625
• Dutyy: Continuous
• Efficiency: 70%
• Insulation Class: B
• Service Factor: 1
• Frequency: 60
• Poles: 4
