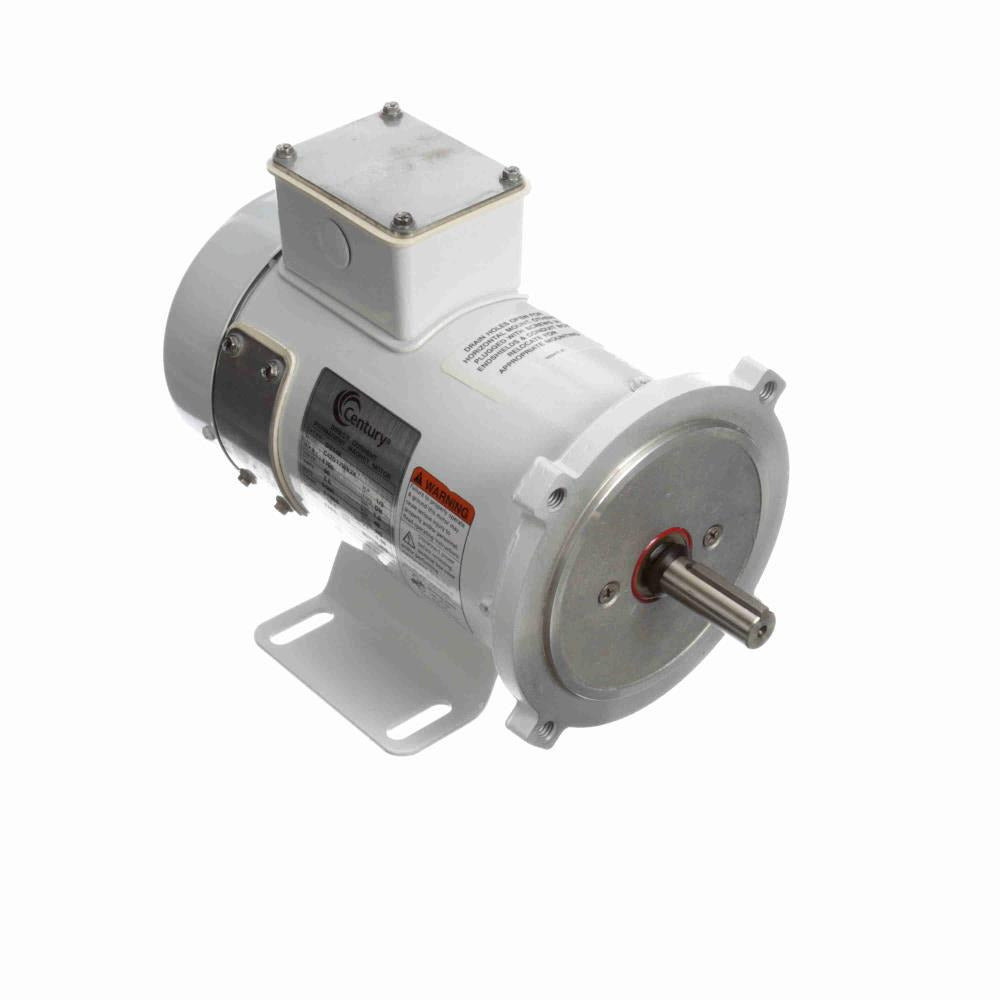

Century UDC149 PMDC Motor 1/3 HP 90V 1750 RPM TEFC

Product Description

The Century UDC149 PMDC Motor is a reliable choice for various electrical applications. Designed with a 1/3 HP power capacity and a 90 voltage rating, this motor operates at 1750 RPM within a TEFC enclosure, ensuring consistent and safe performance.

• 1/3 HP power
• 90 volts
• 1750 RPM

Product Highlights

The Century UDC149 PMDC Motor is ideal for use in demanding environments, thanks to its durable rolled steel construction and ball bearings. The keyed shaft and rigid base mounting make it easy to install and secure in place.

Product Information

Standard Information

• Brand: Century
• MPN: UDC149
• Type: Motor

Technical Specifications

• Electrical Type: PMDC
• HP: 1/3
• KW: 0.25
• RPM: 1750
• Frame: 56C
• Diameter: 6.5
• Enclosure: TEFC
• Voltage: 90
• Rotation: REV
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: Rigid Base
• Amperage: 3.5
• Shaft Type: Keyed
• Shaft Extension: 2.06
• Shaft Diameter: 0.625
• Insulation Class: H
• Service Factor: 1
• Start Method: Across The Line
• Shaft Length: 14.44
• Body Length: 7.94
• Connection Drawing Number: 10.88
