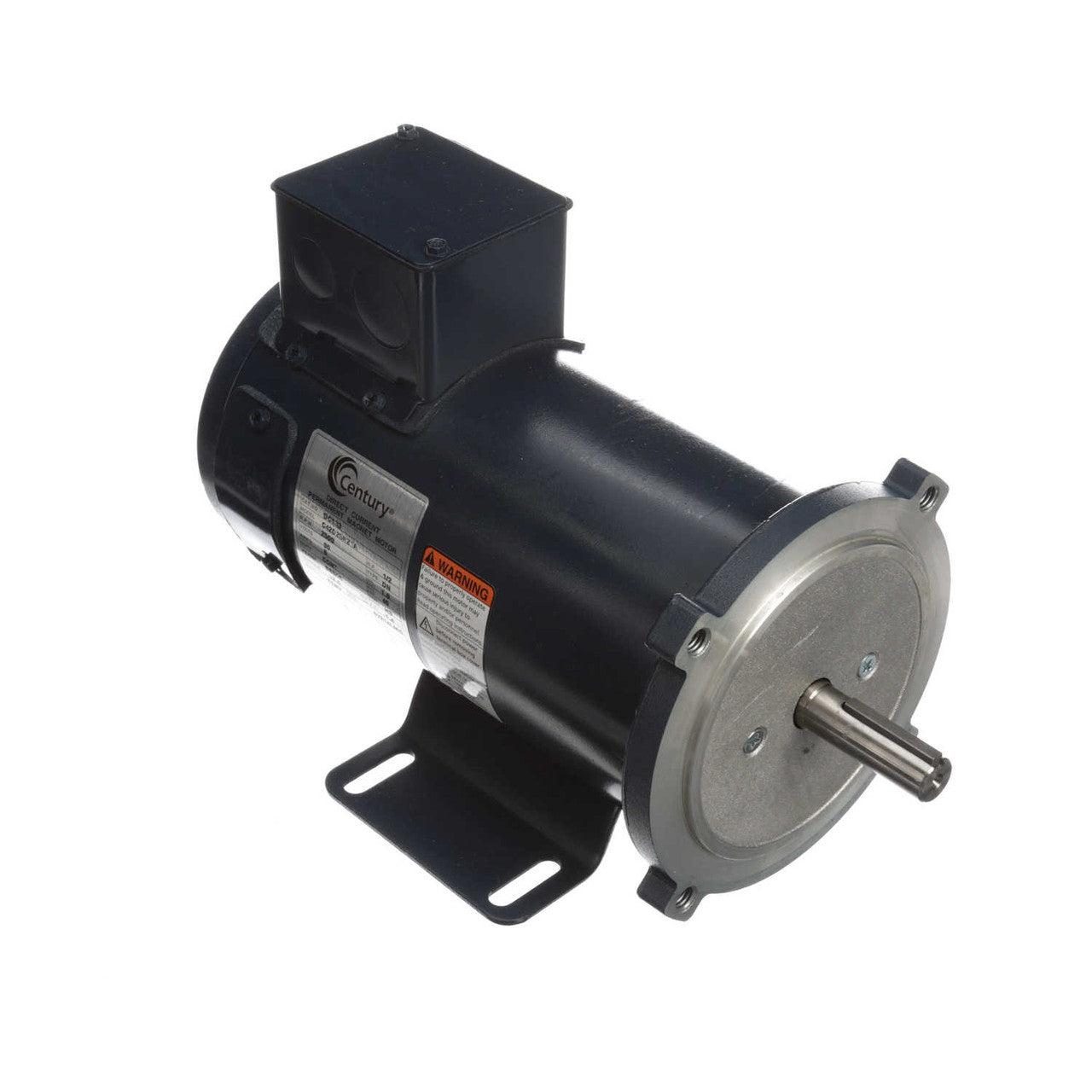

CENTURY MOTORS UDC133 PMDC Electric Motor 90V DC (56C Frame Size)

Product Description

The CENTURY MOTORS UDC133 is a PMDC electric motor suitable for multiple applications. It operates on ninety volts direct current and has a frame size of fifty-six C. This model features a Totally Enclosed Non-Ventilated (TENV) configuration and is constructed with rolled steel. Designed for continuous duty, it ensures reliability in demanding environments.

• Voltage rating of ninety volts direct current.
• Constructed with rolled steel for durability.
• Reversible rotation with a speed of twenty-five hundred RPM.

Product Highlights

This electric motor is ideal for applications requiring consistent performance and durability.

Product Information

Standard Information

• Voltage: 90V DC
• Frame Size: 56C

Technical Specifications

• Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
• Material: Rolled Steel
• Horsepower: 1/2 HP
• Rotation: Reversible
• Speed: 2500 RPM
• Number of Speeds: 1
• Load Amps: 5.0A at 1/2 HP and 2500 RPM
• Service Factor: 1.0
• Keyed Shaft Diameter: 5/8 inches
• Keyed Shaft Length: 1 7/8 inches
• Ambient Temperature Rating: 40°C
• Insulation Class: UL Class H
• Certifications: CE, CSA certified (File # LR39033)
• Construction: UL recognized (File # 55476)
