Product Description

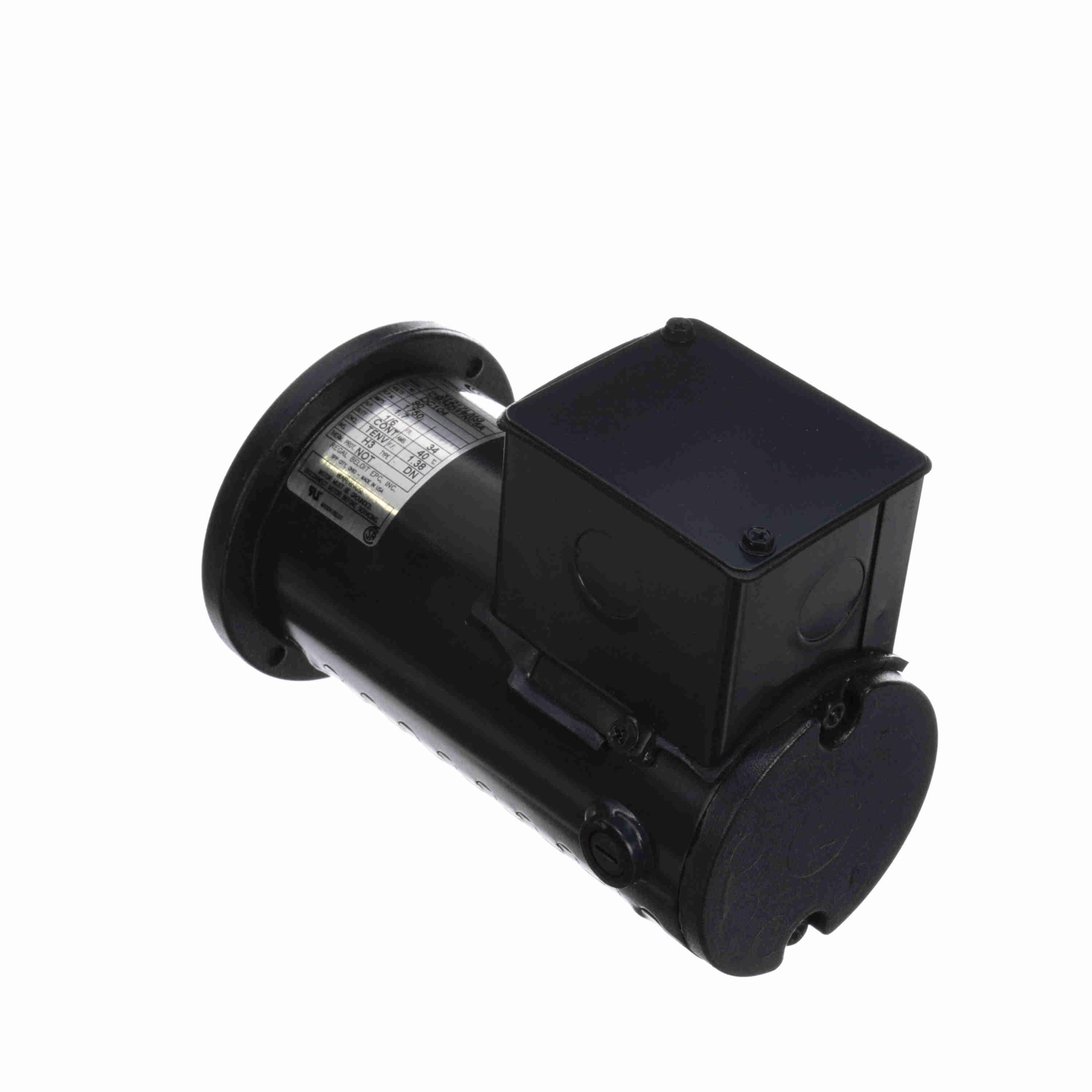

The Century UDC104 PMDC Motor is a DC permanent magnet motor designed for various applications requiring reliable and efficient performance. This motor features a 1/6 horsepower output, delivering 0.13 kilowatts of power at 1750 RPM. It operates on 90 volts and is fully enclosed to protect against environmental hazards.
- DC Permanent Magnet Motor
- 1/6 HP, 0.13KW, 1750 RPM
- 90V, Reversible Rotation
Product Highlights
UL and CSA listed. Easy access for maintenance. Efficient performance with a permanent magnet design. Sealed bearings for extended life. Compatible with various controllers.
Product Information
Standard Information
-
Brand: Century
-
MPN: UDC104
-
Horsepower: 1/6
-
Power: 0.13 KW
-
Voltage: 90V
Technical Specifications
-
Electrical Type: DC Permanent Magnet
-
RPM: 1750
-
Frame: 34
-
Enclosure: Totally Enclosed Non Ventilated
-
Rotation: Reversible
-
Overload Protection: None
-
Material: Rolled Steel
-
Bearings Type: Ball
-
Mounting Type: Round
-
Amperage: 1.7
-
Shaft Type: Keyed
-
Shaft Extension: 1.38 inches
-
Shaft Diameter: 0.5 inches
-
Certification CSA: Yes
-
Certification UL: Recognized
-
Insulation Class: H
-
Service Factor: 1
-
Duty: Continuous
-
Country of Origin: United States of America
