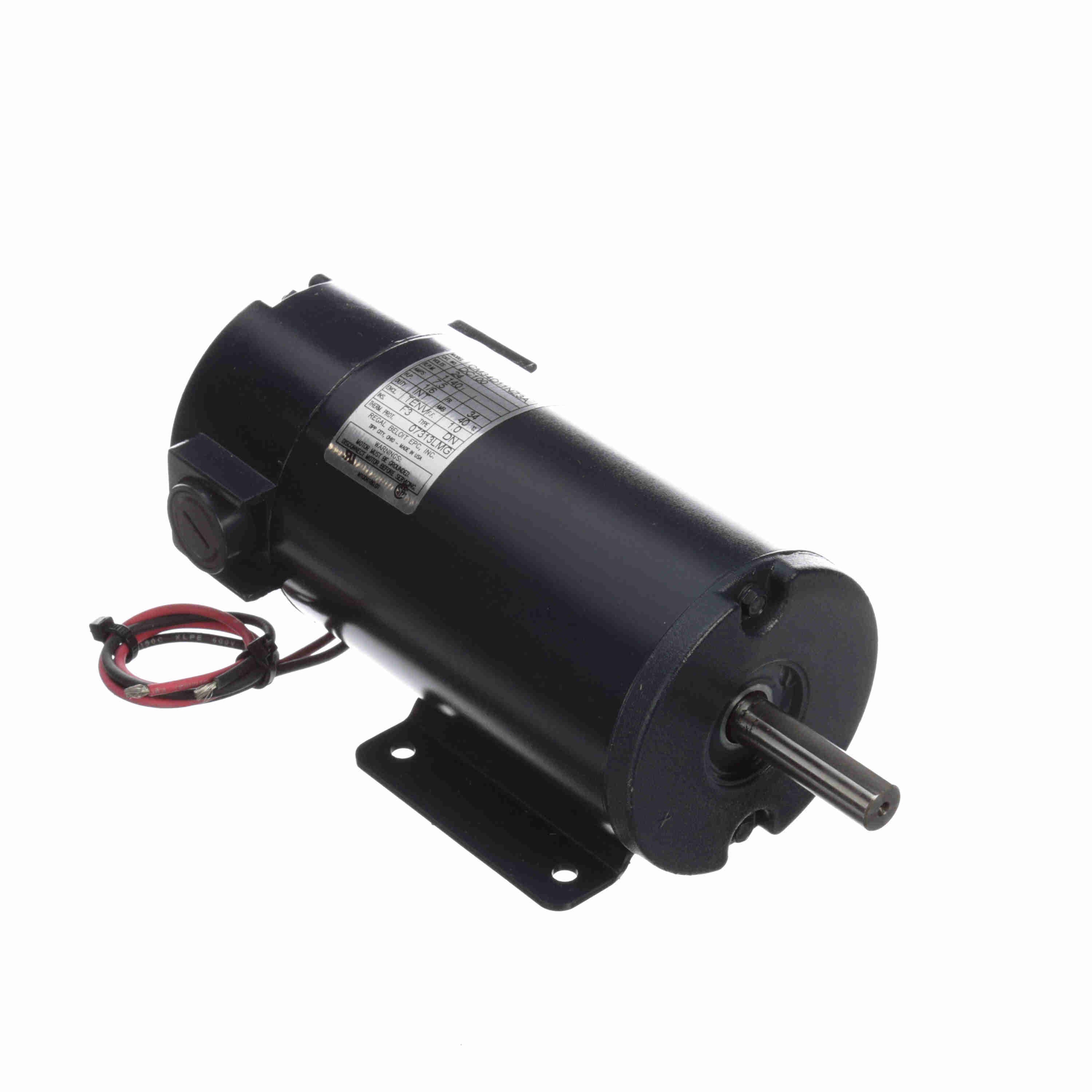

Century UDC100 PMDC Motor 1/6 HP 24 Voltage 1140 RPM

Product Description

The Century UDC100 PMDC Motor 1/6 HP is a permanent magnet DC motor designed for use in various applications requiring reliable and efficient operation. This motor features a skewed armature for smooth and quiet performance.

• DC Permanent Magnet Motor
• 1/6 HP Power Rating
• 1140 RPM Speed

Product Highlights

The Century UDC100 PMDC Motor operates at 24 volts and delivers 1140 RPM. It includes ball bearings, a flat shaft type with a shaft extension of 1.62 inches, and is made from rolled steel for durability.

Product Information

Standard Information

• Brand: Century
• MPN: UDC100
• Application: DC Motor
• Certifications: UL Recognized, CSA Y, CE N

Technical Specifications

• Electrical Type: DC Permanent Magnet
• Horsepower: 1/6
• KW: 0.13
• RPM: 1140
• Frame: 34
• Enclosure: Totally Enclosed Non Ventilated
• Voltage: 24
• Rotation: Reversible
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball
• Mounting: Rigid Base
• Amperage: 7.5
• Shaft Type: Flat
• Shaft Extension: 1.62 inches
• Shaft Diameter: 0.5 inches
• AC/DC: DC
• Ambient Temperature: 40 degrees Celsius
• Duty: Intermittent
• Efficiency: 66.9
• Insulation Class: F
• Service Factor: 1
