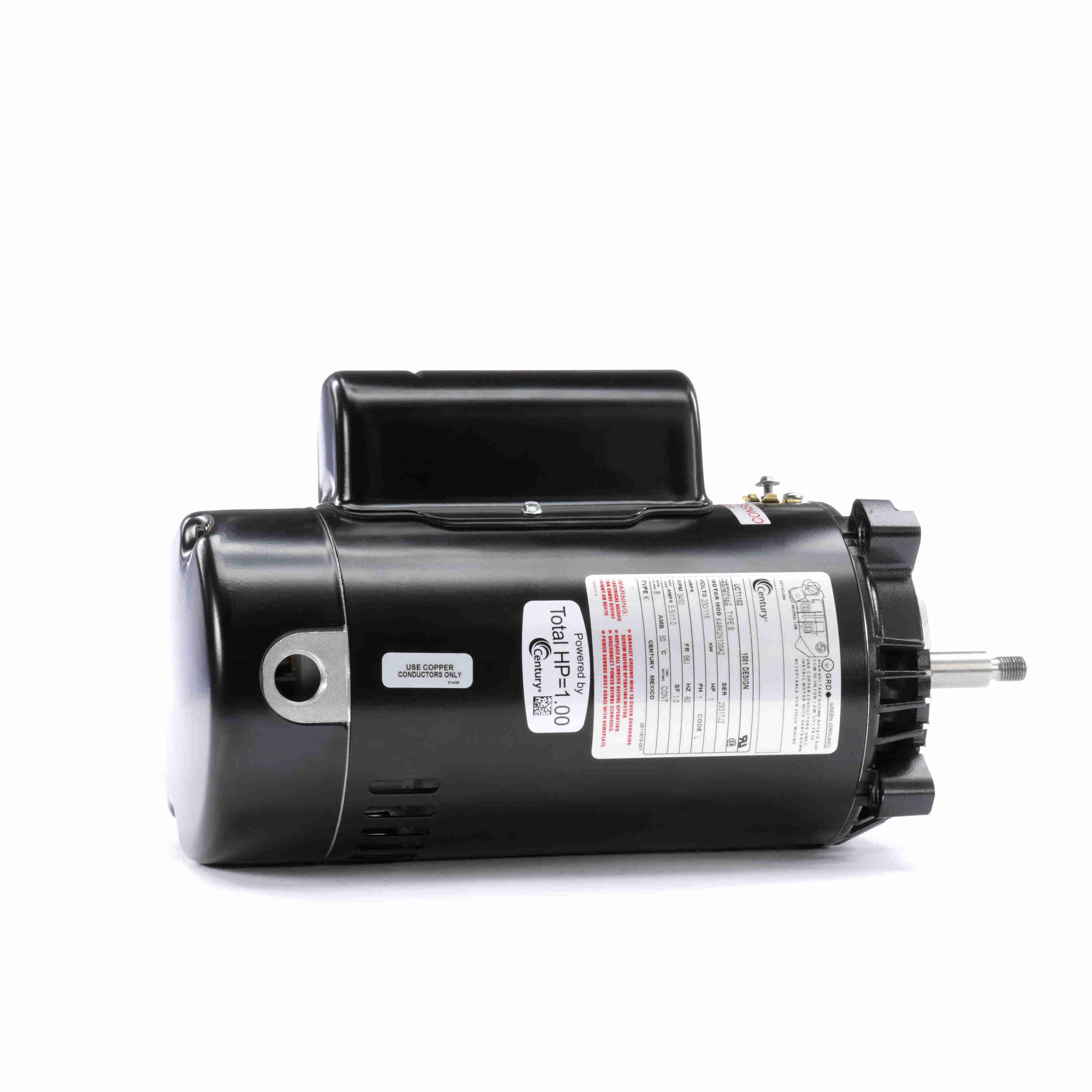

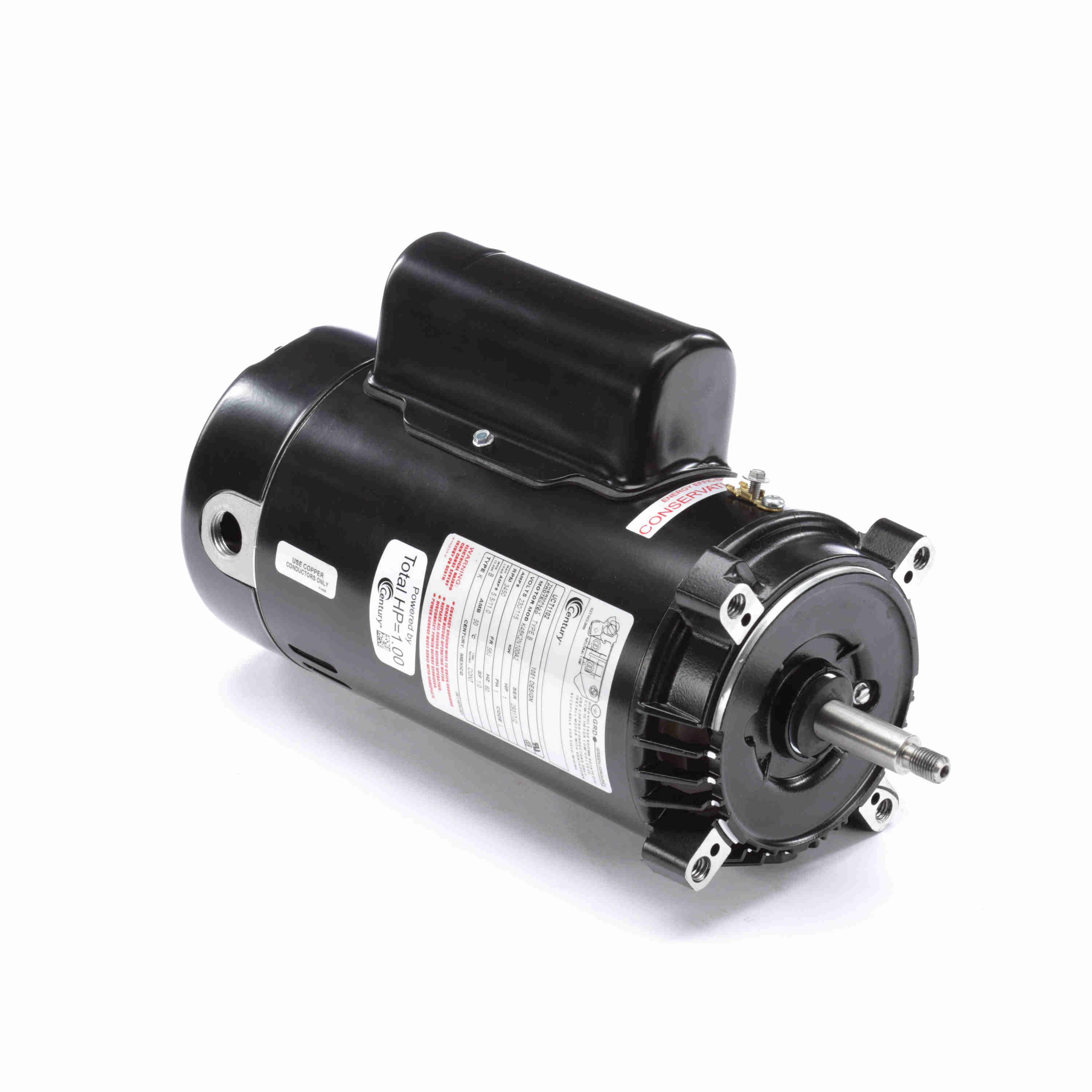

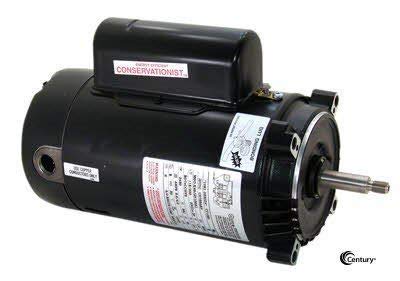

Century UCT1102 Pool Pump Motor 1 HP 1-Speed 56J Frame

Product Description

The Century UCT1102 Pool Pump Motor is a robust and efficient solution for maintaining the optimal performance of your pool's filtration system. This motor comes with a 1 horsepower capacity, operating at a single speed, and designed to fit a 56J frame.

• Sealed switch design
• UL 1081 design
• 50 degree C ambient

Product Highlights

This motor features a sealed switch design and is UL 1081 certified, ensuring safe and reliable operation. The ambient handling up to 50 degrees Celsius makes it durable in various temperatures.

Product Information

Standard Information

• Brand: Century
• MPN: UCT1102
• Voltage: 115/230V AC
• Horsepower: 1 HP

Technical Specifications

• Frame: 56J
• Phase: Single
• Shaft: Threaded 7/16-20 UNF-2A RH
• Finish: Black
• Height: 5 5/8 inches
• Weight: 25 lbs
• RPM: 3,450
• Insulation Class: B
• Length without Shaft: 11 11/16 inches
• Motor Bearings: Ball
• Overall Length: 14 1/4 inches
• Shaft Material: Stainless Steel
• Max. Ambient Temp.: 50 degrees C
• Duty Cycle: Continuous
