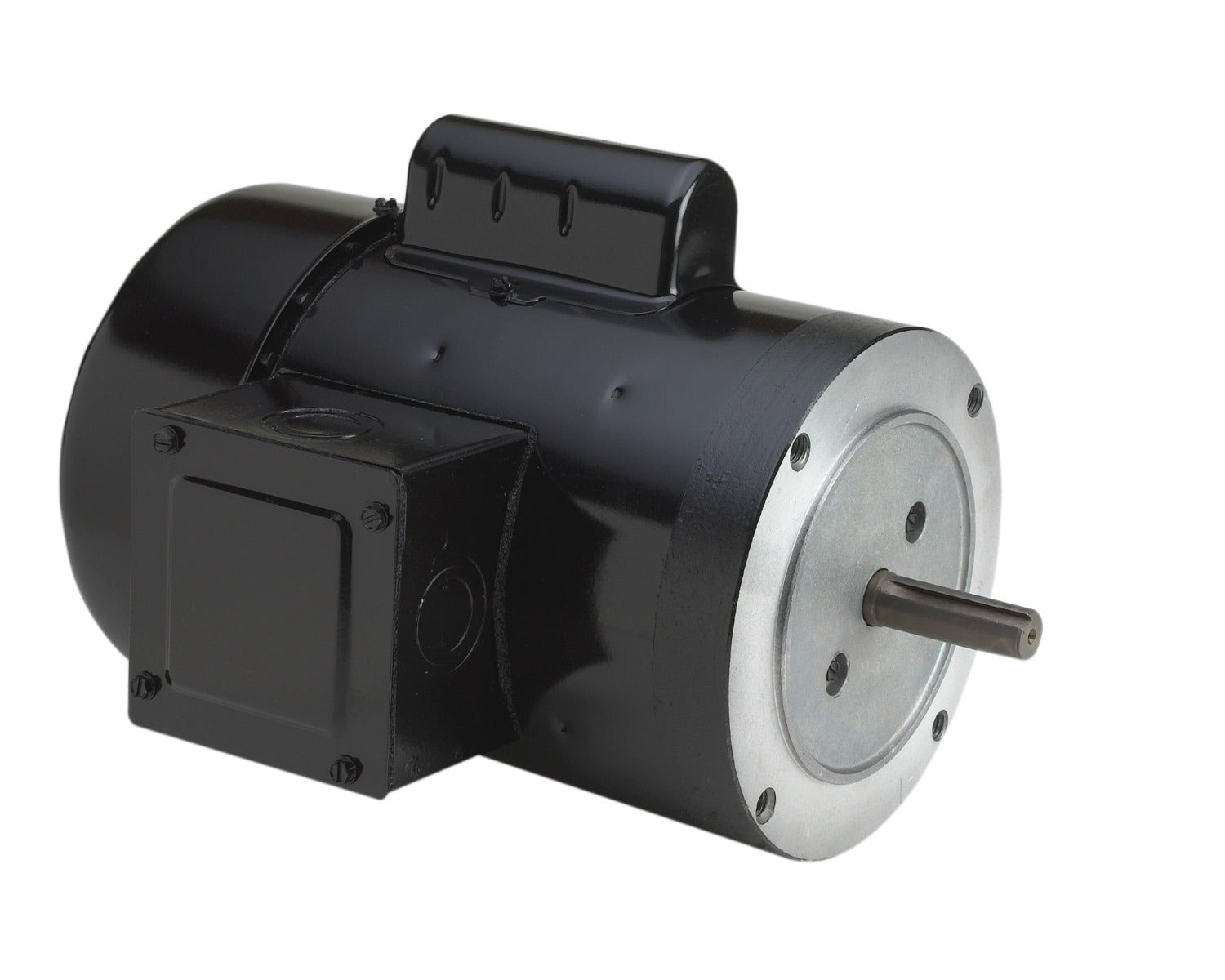

Century UC926 General Purpose Motor 1 HP 56C

Product Description

The Century UC926 is a 1 horsepower general purpose motor designed for reliable operation. It features a capacitor start induction run with a voltage of 115/208-230 volts. This motor is made of rolled steel with a totally enclosed fan cooled design, making it suitable for various applications.

• Continuous duty cycle for maximum operation.
• Permanently lubricated sealed bearings.
• Capacitor start for optimized torque and efficiency.

Product Highlights

UL recognized and CSA certified, the Century UC926 motor ensures safety and reliability in operation.

Product Information

Standard Information

• Brand: Century
• MPN: UC926

Technical Specifications

• Electrical Type: Capacitor Start Induction Run
• Horsepower: 1 HP
• KW: 0.75
• RPM: 1725
• Frame: 56C
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Fan Cooled
• Phase: 1
• Amperage: 12.2/6.2-6.1
• Shaft Type: NEMA 56
• Shaft Diameter: 0.625 inches
• Weight: 35 lbs
