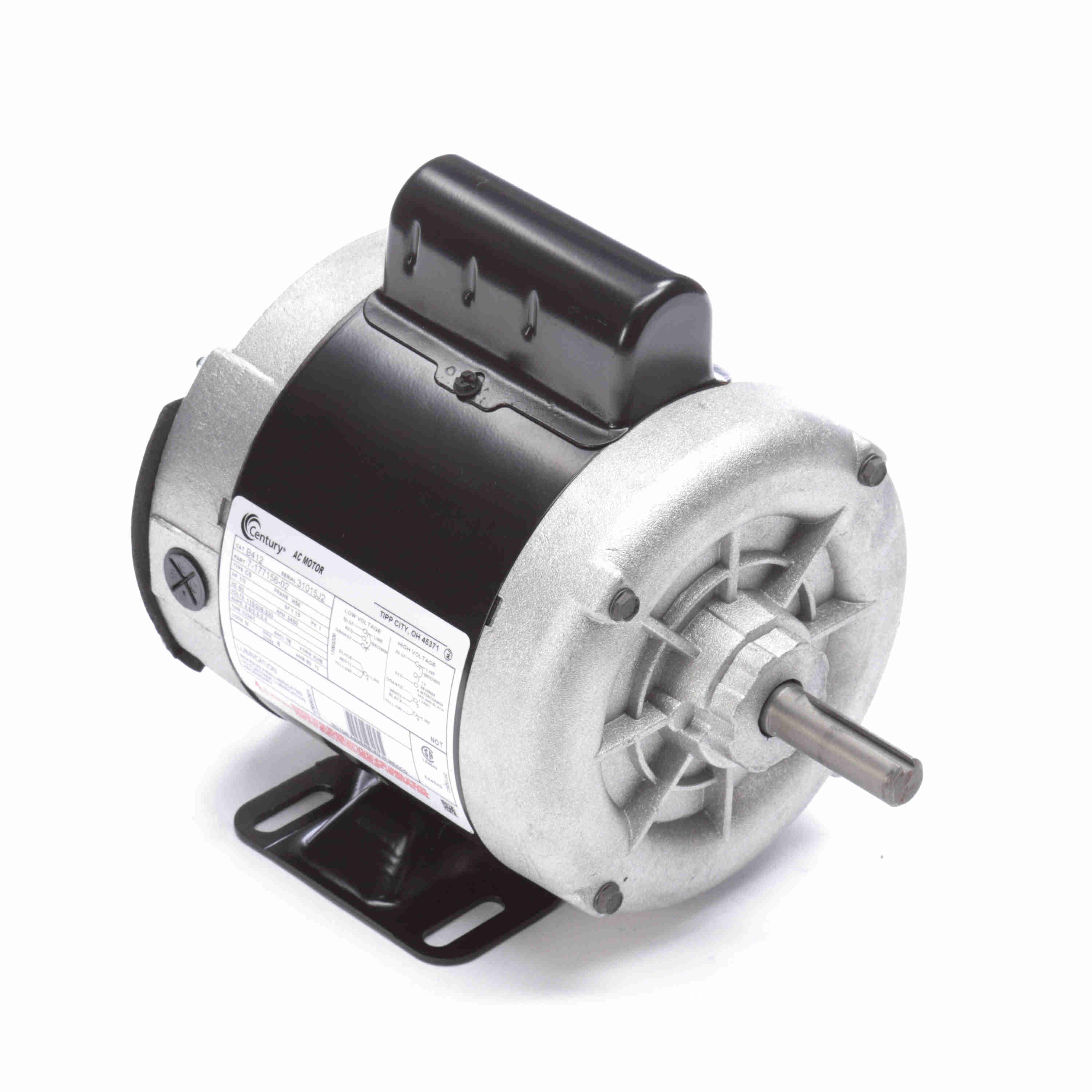

Century UC842ES General Purpose Motor 1/2 HP 115/230V

Product Description

The Century UC842ES General Purpose Motor is built for various applications. With a 1/2 HP rating, it operates at 115/230V. Ideal for HVAC, electric systems, and other uses.

• 1/2 HP electric motor
• Voltage: 115/230V
• Reversible counterclockwise rotation

Product Highlights

This motor features a capacitor start, capacitor run electrical type and a durable rolled steel frame. It is a single-phase motor with a drip-proof enclosure, ensuring reliable performance in various environments.

Product Information

Standard Information

• Brand: Century
• Model: UC842ES

Technical Specifications

• HP: 1/2
• KW: 0.37
• Frame: 48
• Diameter: 5.6 inches
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 115/230
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Amperage: 4.4/2.2
• Shaft Type: Flat
• Shaft Extension: 1.59 inches
• Shaft Diameter: 0.5 inches
• RPM: 3450
• Overload: None
• Mounting: Resilient Base
