Product Description

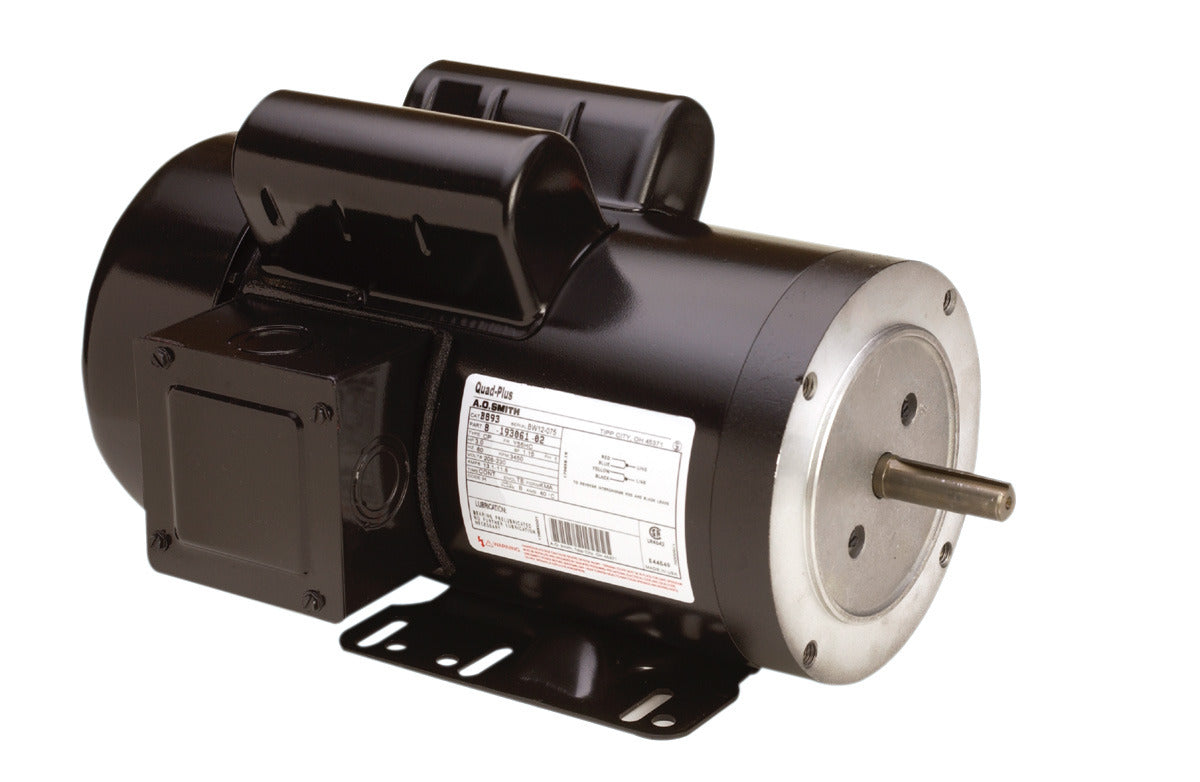

The Century UC832 is a general-purpose motor known for its reliability and efficiency. This motor operates at two horsepower and is designed for both single and dual voltage use.
- UL recognized component listing and CSA certified for safety and compliance.
- Continuous duty cycle design enables extensive use at rated power.
- Permanently lubricated sealed bearings prolong motor lifespan.
Product Highlights
The Century UC832 motor is ideal for various applications, providing superior torque and efficiency due to its capacitor start design.
Product Information
Standard Information
-
Brand: Century
-
MPN: UC832
Technical Specifications
-
Type: General Purpose Motor
-
Power: 2.0 HP
-
Voltage: 208-230/115
-
RPM: 1725
-
Frame: P56HC
-
Material: Rolled Steel
-
Amperage: 9.6-8.9/17.8
-
Bearings Type: Ball
-
Mounting: Rigid Base
-
Shaft Type: Keyed
-
Enclosure: Totally Enclosed Fan Cooled
-
Phase: 1
-
Rotation: Reversible Counterclockwise
-
Length: 17 inches
-
Width: 11 inches
-
Height: 11 inches
-
Weight: 32 lbs
