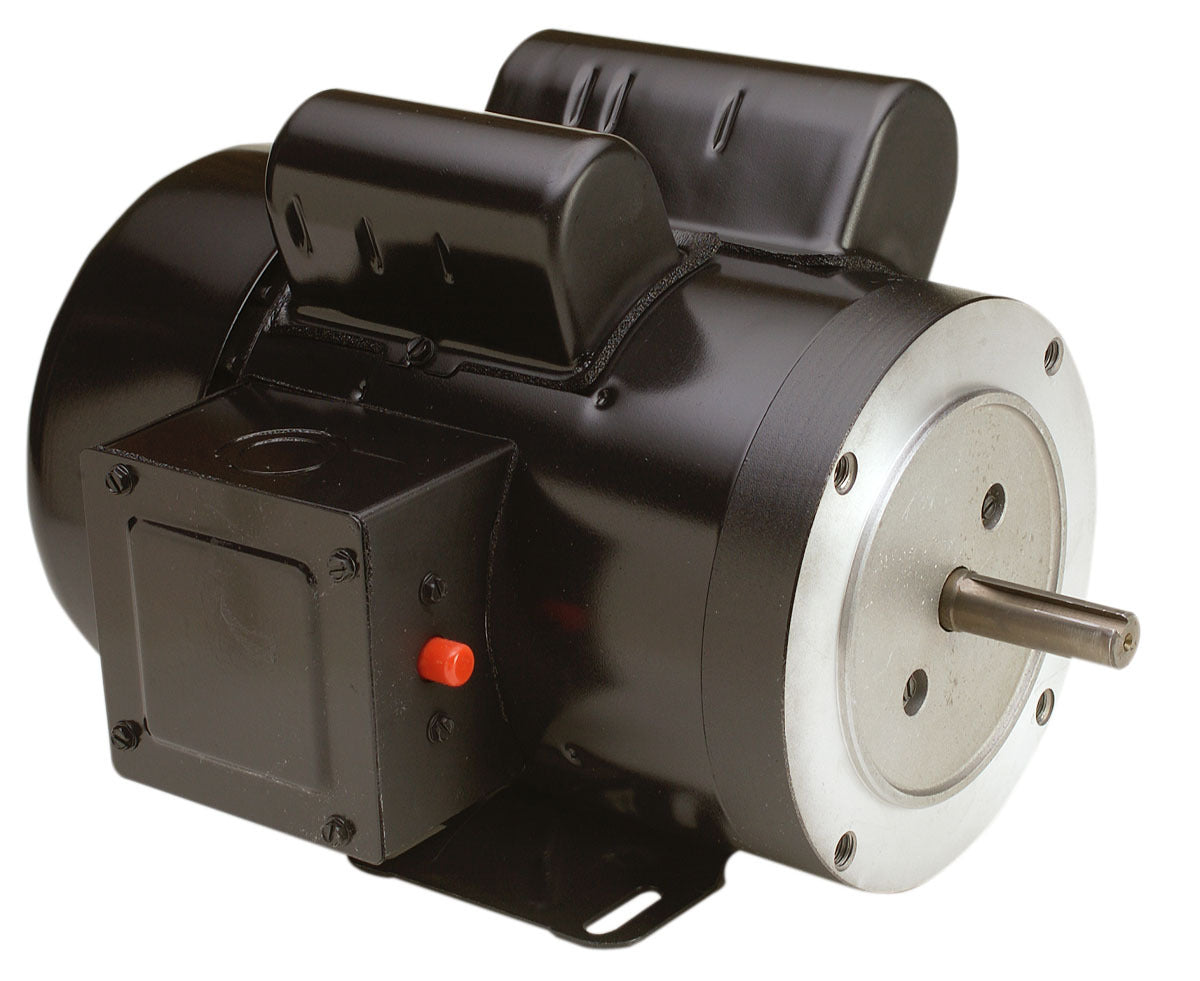

Century UC829 General Purpose Motor 3/4 HP 1140 RPM 208-230/115 Volts

Product Description

The Century UC829 General Purpose Motor offers reliable performance for various applications.

• Designed with capacitor start and capacitor run
• Features a totally enclosed fan cooled enclosure
• Permanently lubricated sealed bearings

Product Highlights

This motor is ideal for general-purpose use. It has a continuous duty cycle, ensuring sustained operation at the rated power. Constructed with heavy-duty rolled steel, this motor is durable and long-lasting. The design includes a reversible counterclockwise rotation.

Product Information

Standard Information

• Brand: Century
• MPN: UC829

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• HP: 3/4
• RPM: 1140
• Frame: N56C
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Fan Cooled
• Phase: 1
• Voltage: 208-230/115
• Rotation: Reversible Counterclockwise
• Overload Protection: None
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 4.6-4.4/8.8
• Shaft Type: Keyed
• KW: 0.56
• Shaft Diameter: 0.625 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 2.070 inches
