Product Description

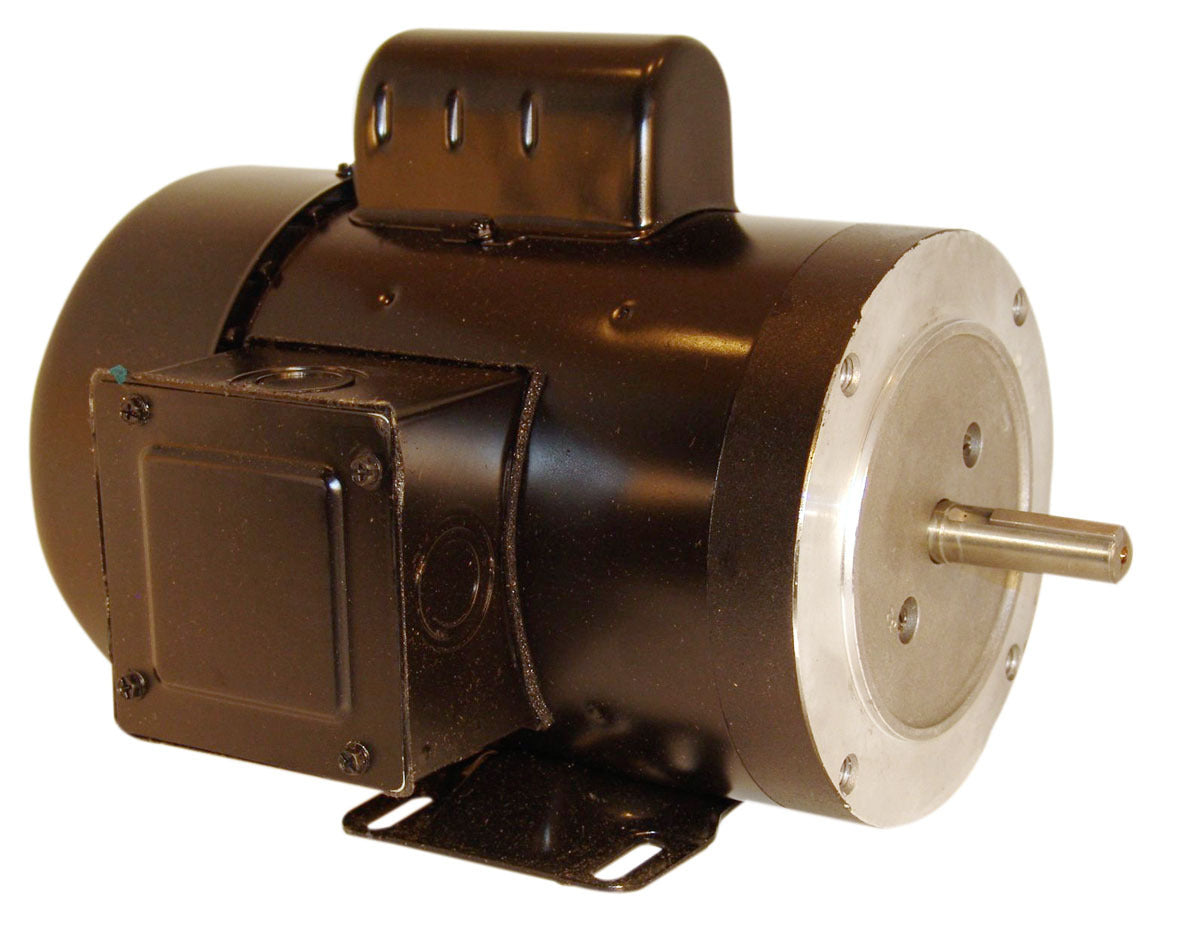

The Century UC828 General Purpose Motor is a reliable motor designed for various industrial applications. This motor has a power rating of 0.75 HP and operates at 1725 RPM. It features a totally enclosed fan cooled design and is made from rolled steel for durability.
- UL recognized and CSA certified for safety
- Continuous duty cycle for maximum operation
- Capacitor start for optimal torque and efficiency
Product Highlights
Reliable motor for various applications with continuous duty cycle and optimal performance.
Product Information
Standard Information
-
Brand: Century
-
MPN: UC828
Technical Specifications
-
Electrical Type: Capacitor Start Induction Run
-
HP: 0.75
-
RPM: 1725
-
Frame: 56C
-
Diameter: 6.5
-
Enclosure: Totally Enclosed Fan Cooled
-
Phase: 1
-
Voltage: 115/208-230
-
Rotation: Selective Counterclockwise
-
Material: Rolled Steel
-
Mounting: Rigid Base
-
Amperage: 10.4/5.2-5.2
-
Shaft Type: NEMA 56
-
Bearings DE Type: Ball
-
Bearings ODE Type: Ball
-
Shaft Diameter: 0.625
-
Shaft Extension: 2.06
-
Duty: Continuous
-
Efficiency: 72%
-
Frequency: 60Hz
-
Insulation Class: F
-
Poles: 4
-
Service Factor: 1.15
-
Frame Size: 56C
-
Ambient Temperature: 40°C
-
Connection Drawing Number: DD10029-002
-
Outline Drawing Number: OL56100325-002
-
Starting Type: Across The Line
-
CULus: Recognized
