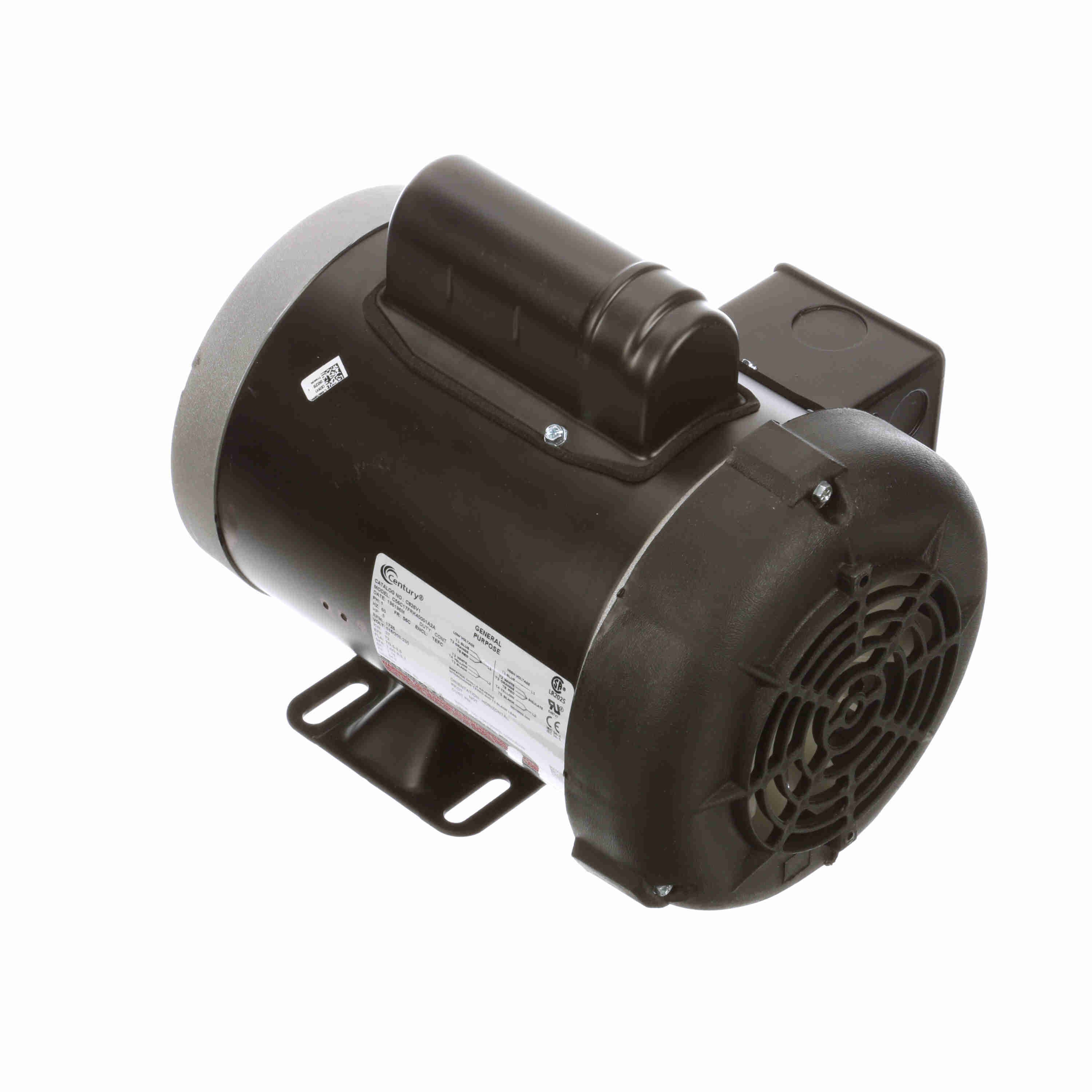

Century UC826V1 General Purpose Motor .5 HP 1725 RPM 115/208-230 V

Product Description

The Century UC826V1 General Purpose Motor is designed for versatile use in various applications. Operating at .5 HP and 1725 RPM, this motor ensures reliable performance. It is constructed with a totally enclosed fan-cooled enclosure for optimal protection.

• Capacitor Start Induction Run
• Operational at 115/208-230 V
• Rugged rolled steel construction

Product Highlights

This motor features a UL recognized component listing and CSA certification, assuring its safety and compliance. The continuous duty cycle design allows for maximum operation at rated power, while the permanently lubricated sealed bearings extend the motor's lifetime. The capacitor start design optimizes torque and efficiency, making it suitable for various applications.

Product Information

Standard Information

• Brand: Century
• MPN: UC826V1
• HP: 0.5
• RPM: 1725
• Voltage: 115/208-230 V
• Enclosure: Totally Enclosed Fan Cooled

Technical Specifications

• Electrical Type: Capacitor Start Induction Run
• Frame: 56C
• Diameter: 6.5 inches
• Phase: 1
• Rotation: Selective Counterclockwise
• Material: Rolled Steel
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2.07 inches
• Amperage: 7/3.5-3.5
• Bearing Type: Ball
• Mounting: Rigid Base
• Duty: Continuous
• Efficiency: 72%
• Service Factor: 1.15
• Frequency: 60 Hz
• Insulation Class: B
• C Dimension: 12.66 inches
