Product Description

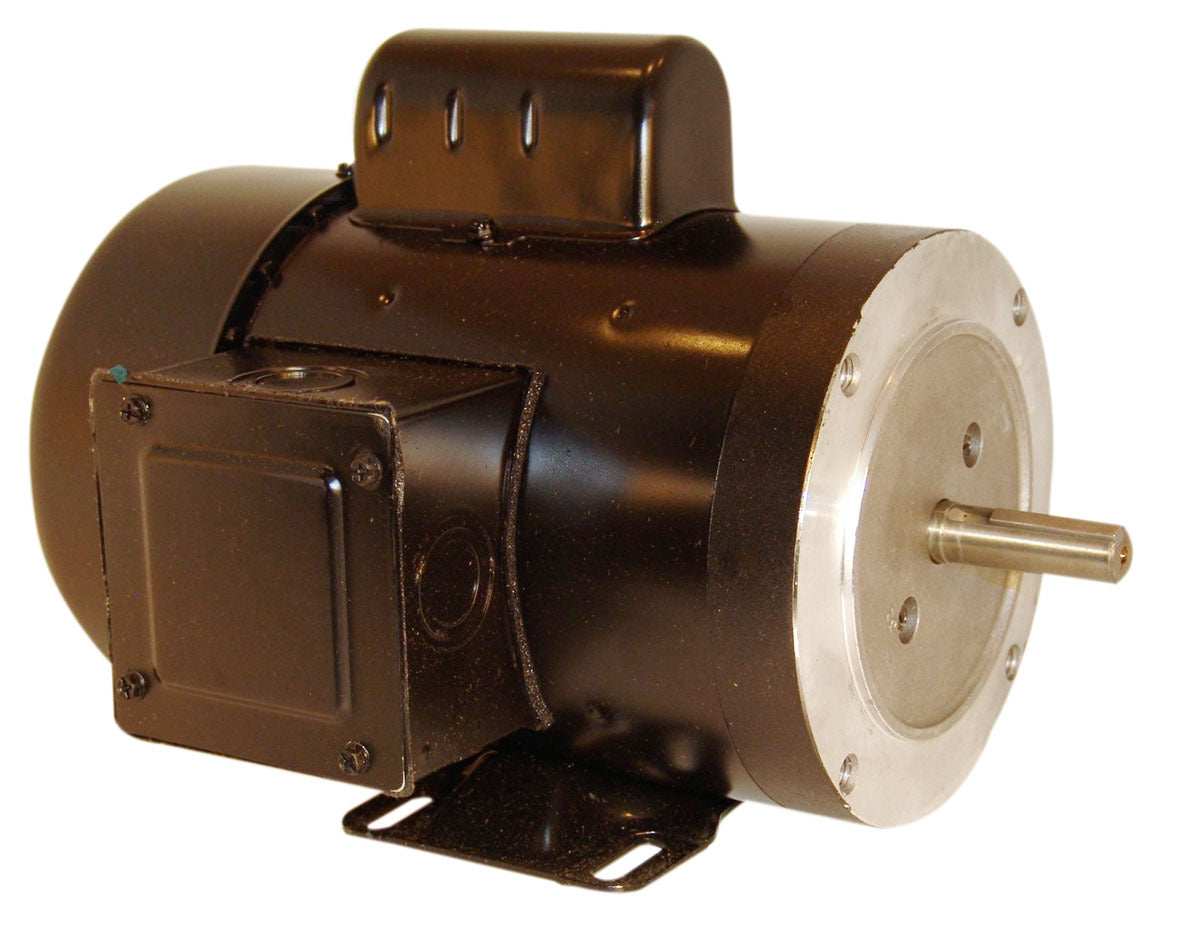

The Century UC824 General Purpose Motor is a versatile and reliable motor designed for various applications. It operates at 1/3 HP and 1725 RPM, providing efficient performance. The motor features a capacitor start, induction run, and rolled steel construction.
- 1/3 HP, 1725 RPM motor
- Totally Enclosed Fan Cooled (TEFC) enclosure
- Single-phase, 115/208-230 voltage
Product Highlights
This motor is perfect for use in demanding environments where durability and reliability are crucial. It includes ball bearings, a reversible counterclockwise rotation, and a rigid base for secure mounting.
Product Information
Standard Information
-
Brand: Century
-
MPN: UC824
Technical Specifications
-
HP: 1/3
-
RPM: 1725
-
Frame: G56C
-
Diameter: 6.5 inches
-
Enclosure: Totally Enclosed Fan Cooled
-
Phase: 1
-
Voltage: 115/208-230
-
Rotation: Reversible Counterclockwise
-
Material: Rolled Steel
-
Bearings Type: Ball/Ball
-
Mounting: Rigid Base
-
Amperage: 6.4/3.2
-
Shaft Type: Keyed
-
Shaft Extension: 2.07 inches
-
Shaft Diameter: 0.625 inches
-
Duty: Continuous
-
Frequency: 60 Hz
-
Insulation Class: B
-
Poles: 4
-
Service Factor: 1.15
-
Service Factor Amperage: Primary
-
Start Method: Across The Line
-
Ambient Temperature: 40 degrees C
