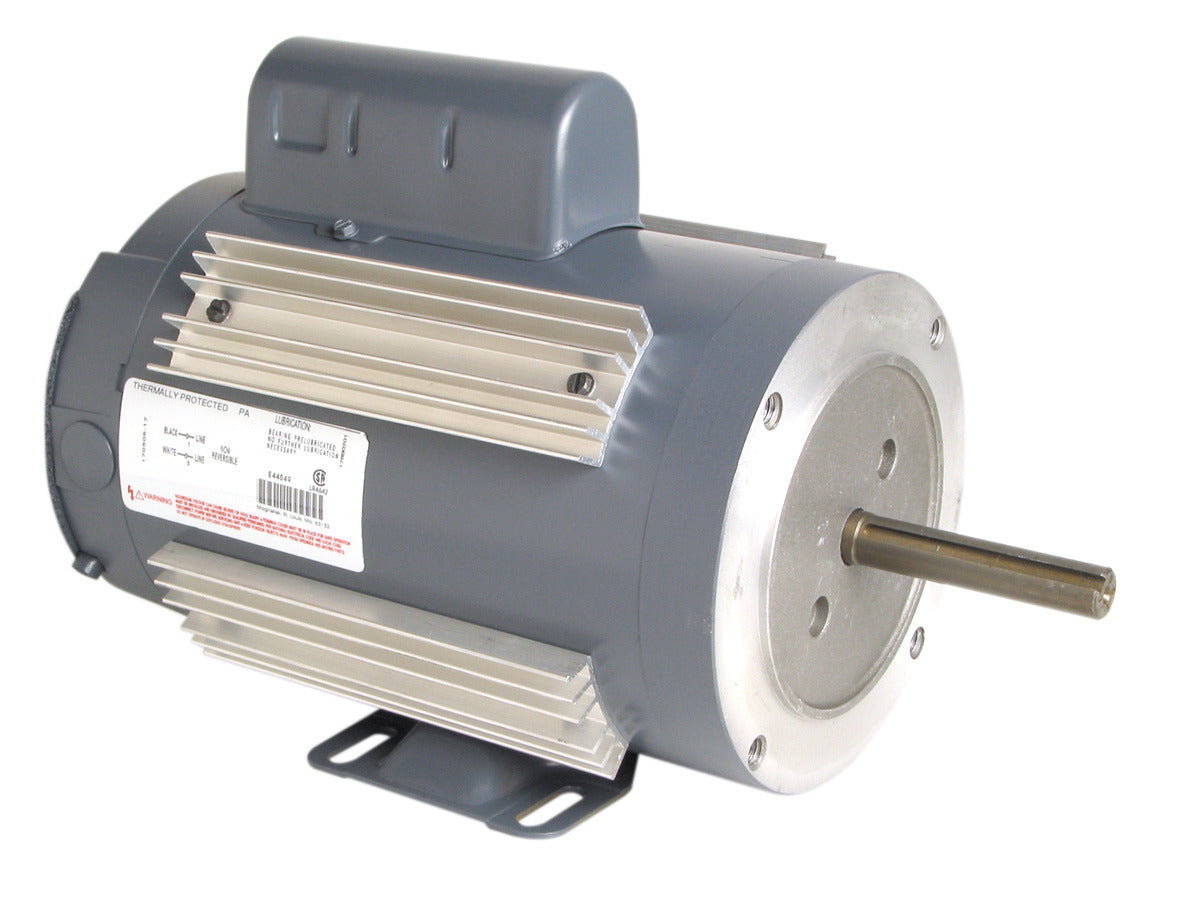

Century UC783 Direct Drive Motor 1 HP

Product Description

The Century UC783 Direct Drive Motor is a reliable choice for various HVAC applications. It features a permanent split capacitor and operates at single or dual voltage. This motor delivers 1.0 HP and operates at 850 RPM, providing efficient performance with minimal noise.

• Thermally protected for overheating prevention
• P56CZ frame and 6.5-inch diameter
• Totally enclosed air-over design

Product Highlights

This Century UC783 motor is designed to prevent overheating with automatic thermal protection. It includes Class B insulation to handle maximum temperatures and has a double-sealed bearing construction for extended life. The totally enclosed air-over design ensures dust and debris stay out, preserving the motor's performance.

Product Information

Standard Information

• Brand: Century
• MPN: UC783
• Type: Direct Drive Motor

Technical Specifications

• Electrical Type: Permanent Split Capacitor
• Horsepower: 1 HP
• RPM: 850
• Frame: P56CZ
• Diameter: 6.5 inches
• Voltage: 230 V
• Amperage: 5.1/5.1 A
• Shaft Type: Keyed
• Shaft Extension: 3.25 inches
• Shaft Diameter: 0.625 inches
• Enclosure: Totally Enclosed Air Over
• Insulation Class: B
• Rotation: Counterclockwise
• Bearings Type: Ball
