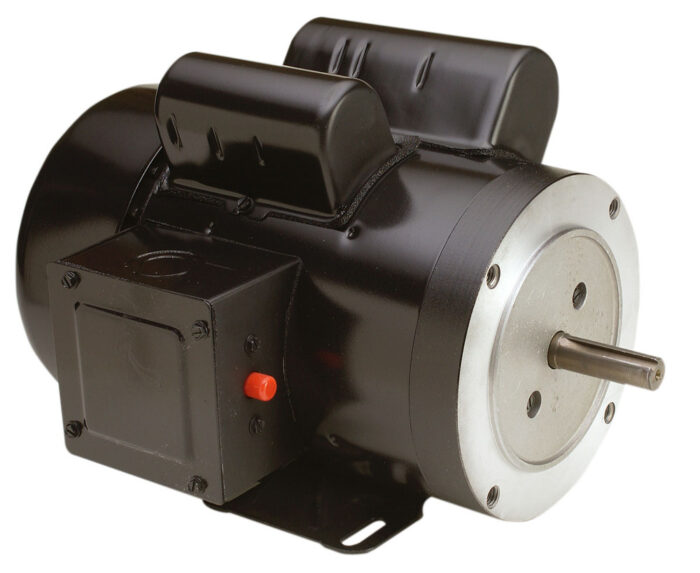

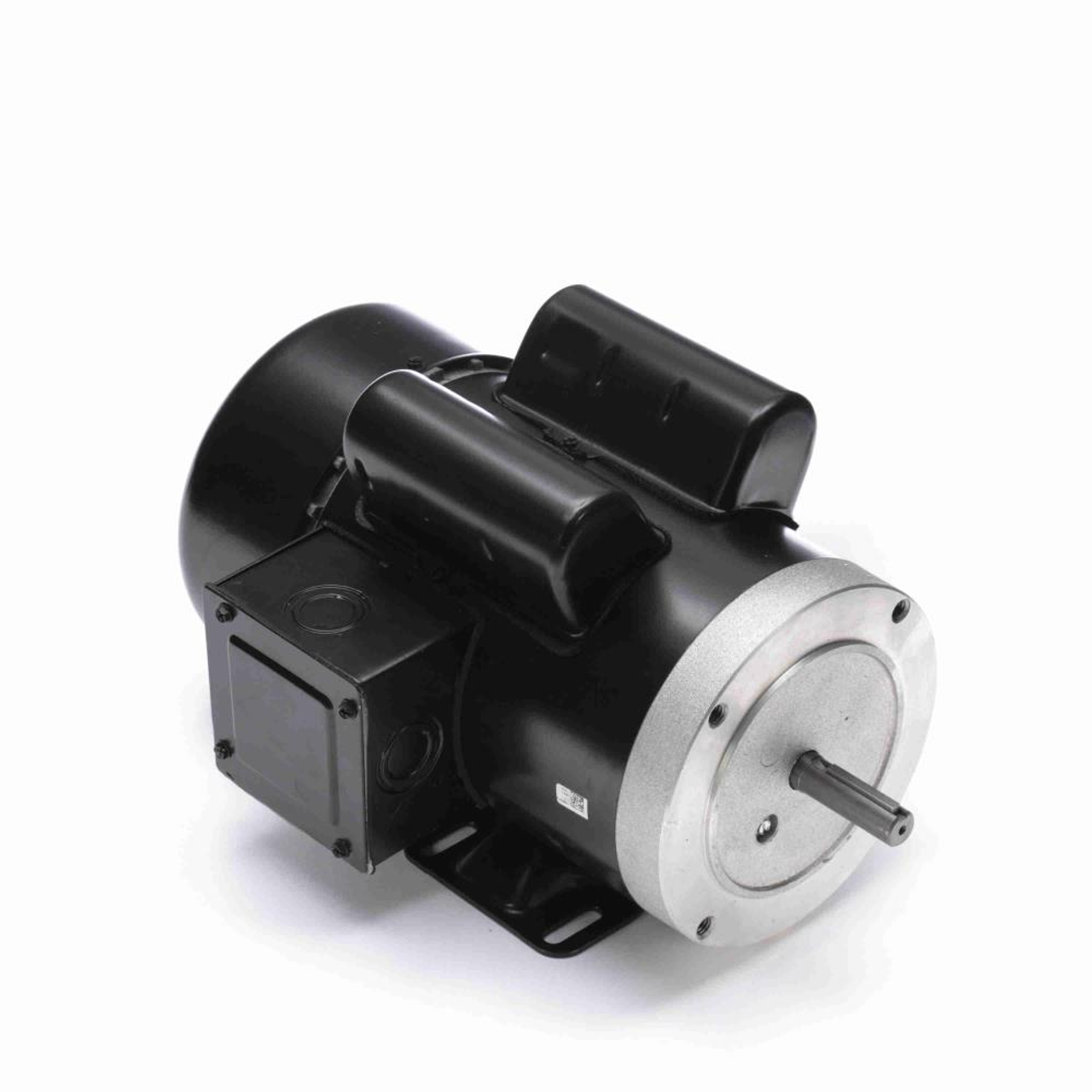

CENTURY MOTORS UC777 C-Face Motor

Product Description

The CENTURY MOTORS UC777 is a reliable capacitor start motor, tailored for direct mounting on NEMA C-face type equipment. It powers various industrial and commercial machines like pumps and speed reducers. This single-phase motor features a keyed shaft and offers electrical reversibility, accommodating both forward and reverse operation. With a frame size of 56C, it operates at a frequency of sixty Hz.

• Designed for NEMA C-face mounting.
• Features a keyed shaft and is electrically reversible.
• Suitable for pumps and speed reducers.

Product Highlights

This motor is efficient for various applications, including industrial machinery.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: UC777

Technical Specifications

• Horsepower: 1 1/2 HP
• RPM: 1800
• Input Voltage: 115/230 V
• Full Load Amperage: 7.5/15.0
• Service Factor: 1.20
• Frame Size: 56C
• Electrical Type: Capacitor Start
• Phase: Single
• Overload Protector: Manual
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Material: Rolled Steel
• Rotation: Reversible
• Number of Speeds: 1
• Bearing Type: Ball Bearing
• Frequency: 60 Hz
• Insulation Class: B
• Keyed Shaft: Yes
• Speed: 1
• Shaft Dimension: 5/8 x 1-7/8
• Mounting Type: Rigid
