Product Description

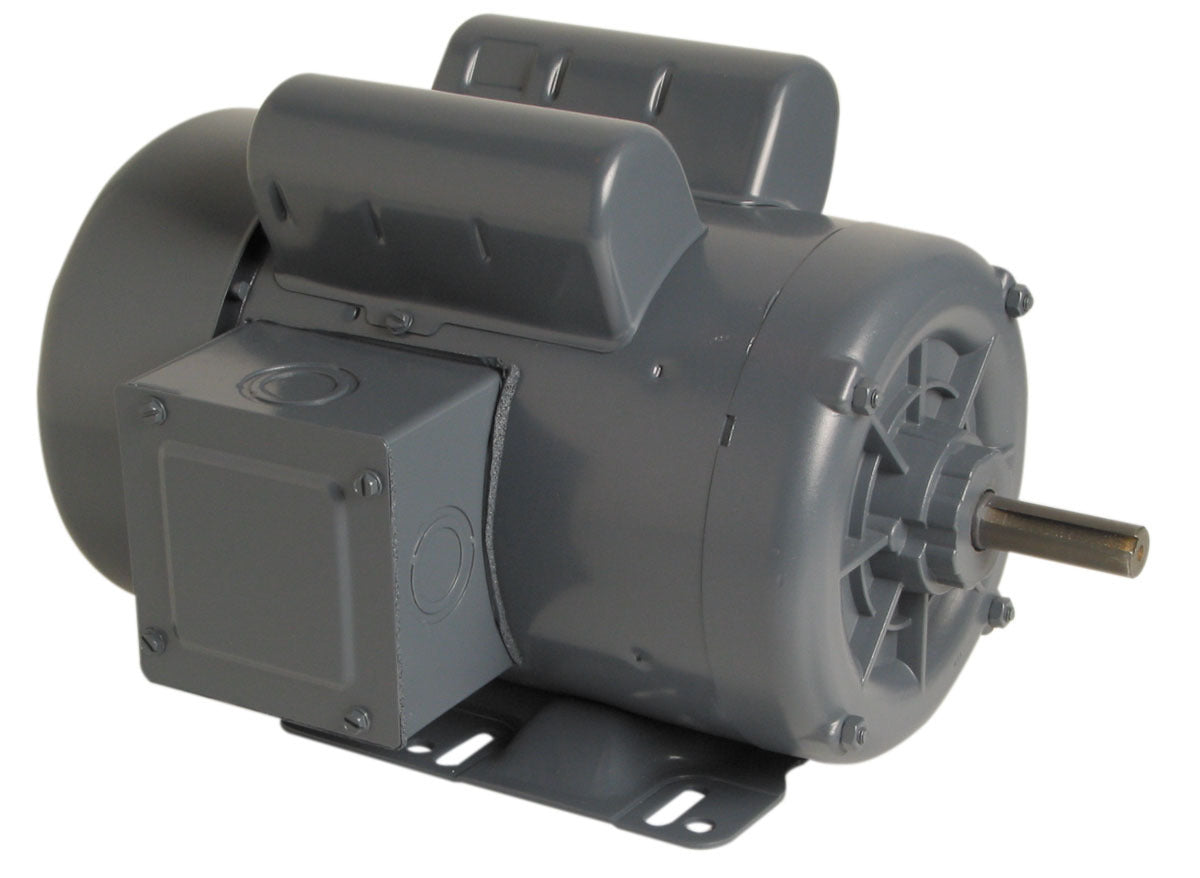

The Century UC686 is a general purpose motor with 1.5 horsepower and 1725 RPM. Designed for various applications, this motor is essential for HVAC systems, appliances, and machinery.
- 1.5 HP and 1725 RPM
- Thermally protected for safety
- Ball bearings for durability
Product Highlights
Reliable motor with UL and CSA certifications. Operates on 115/208-230 volts at 60 Hz. Features a totally enclosed fan-cooled design and selective counterclockwise rotation.
Product Information
Standard Information
-
Brand: Century
-
MPN: UC686
Technical Specifications
-
HP: 1.5
-
RPM: 1725
-
Frame: 56H
-
Enclosure: Totally Enclosed Fan Cooled
-
Voltage: 115/208-230
-
Rotation: Selective Counterclockwise
-
Diameter: 6.5 inches
-
Shaft Diameter: 0.625 inches
-
Shaft Extension: 1.88 inches
-
Mounting: Rigid Base
-
Bearings: Ball
-
Amperage: 15.0/7.8-7.5
-
Material: Rolled Steel
-
Insulation Class: B
-
Duty: Continuous
-
Frequency: 60 Hz
-
Service Factor: 1.15
