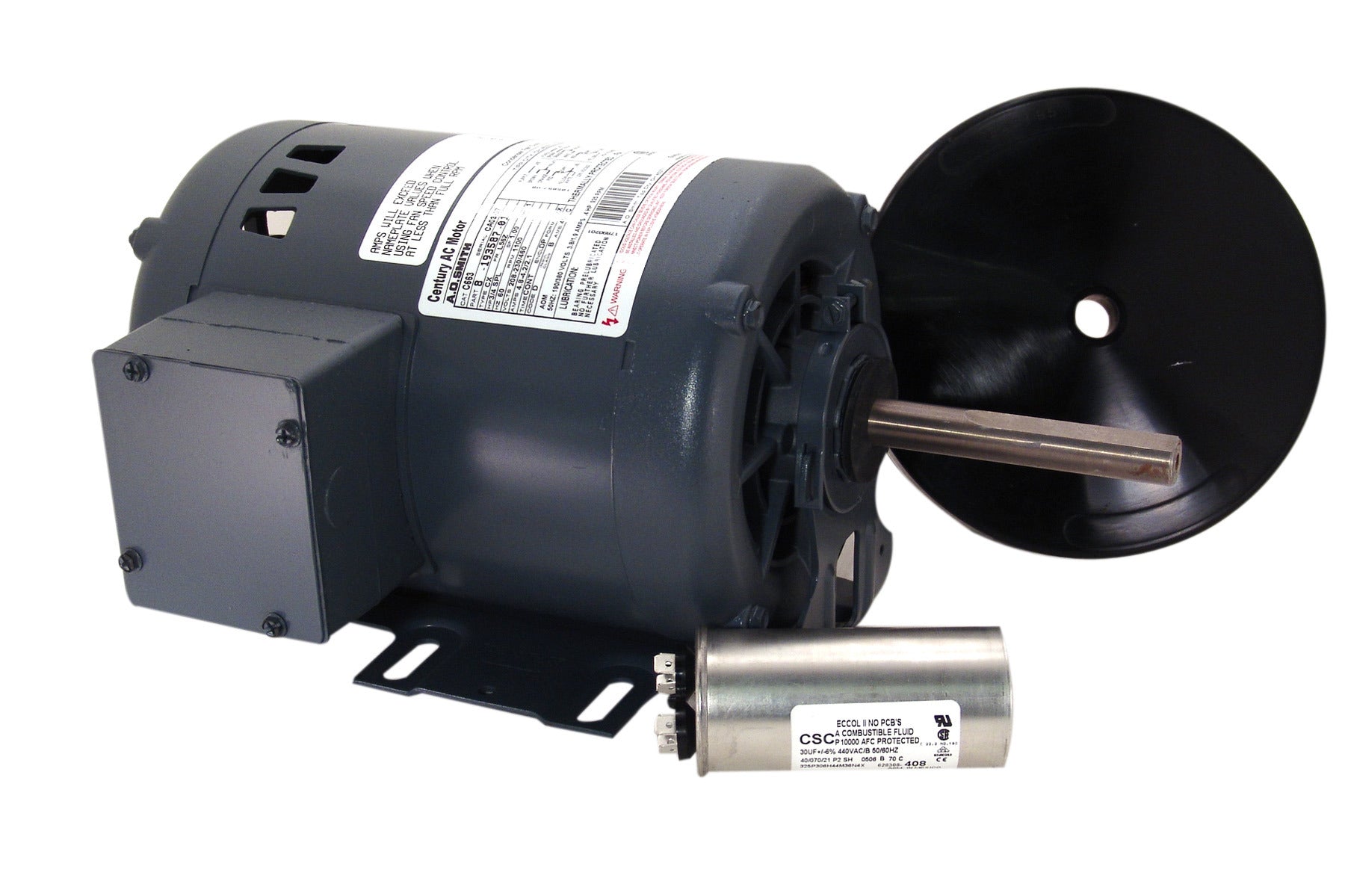

Century UC663 Condenser Fan Motor Single Phase

Product Description

The Century UC663 Condenser Fan Motor is designed for HVAC applications requiring single-phase motors. This motor operates on a voltage range of 208-230/460 volts and delivers a horsepower of 3/4. With a rotation of CCWSE, it features a robust rolled steel construction.

• PSC electrical type
• Amperage of 4.8-4.2/2.1
• Continuous duty

Product Highlights

This condenser fan motor by Century is ideal for HVAC systems. It is constructed from rolled steel and is designed for continuous duty operation. The motor is single-phase and has a resilient base mounting.

Product Information

Standard Information

• Brand: Century
• MPN: UC663
• Country of Origin: Mexico
• UPC Number: 787200000000
• Phase: Single
• Voltage: 208-230/460
• Amperage: 4.8-4.2/2.1
• Rotation: CCWSE

Technical Specifications

• Horsepower: 3/4
• KW: 0.56
• RPM: 1100
• Frame: 56Z
• Diameter: 6.5
• Enclosure: ODP
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Resilient Base
• Shaft Type: Flat
• Shaft Extension: 4.13
• Certification: UL Recognized, CSA
