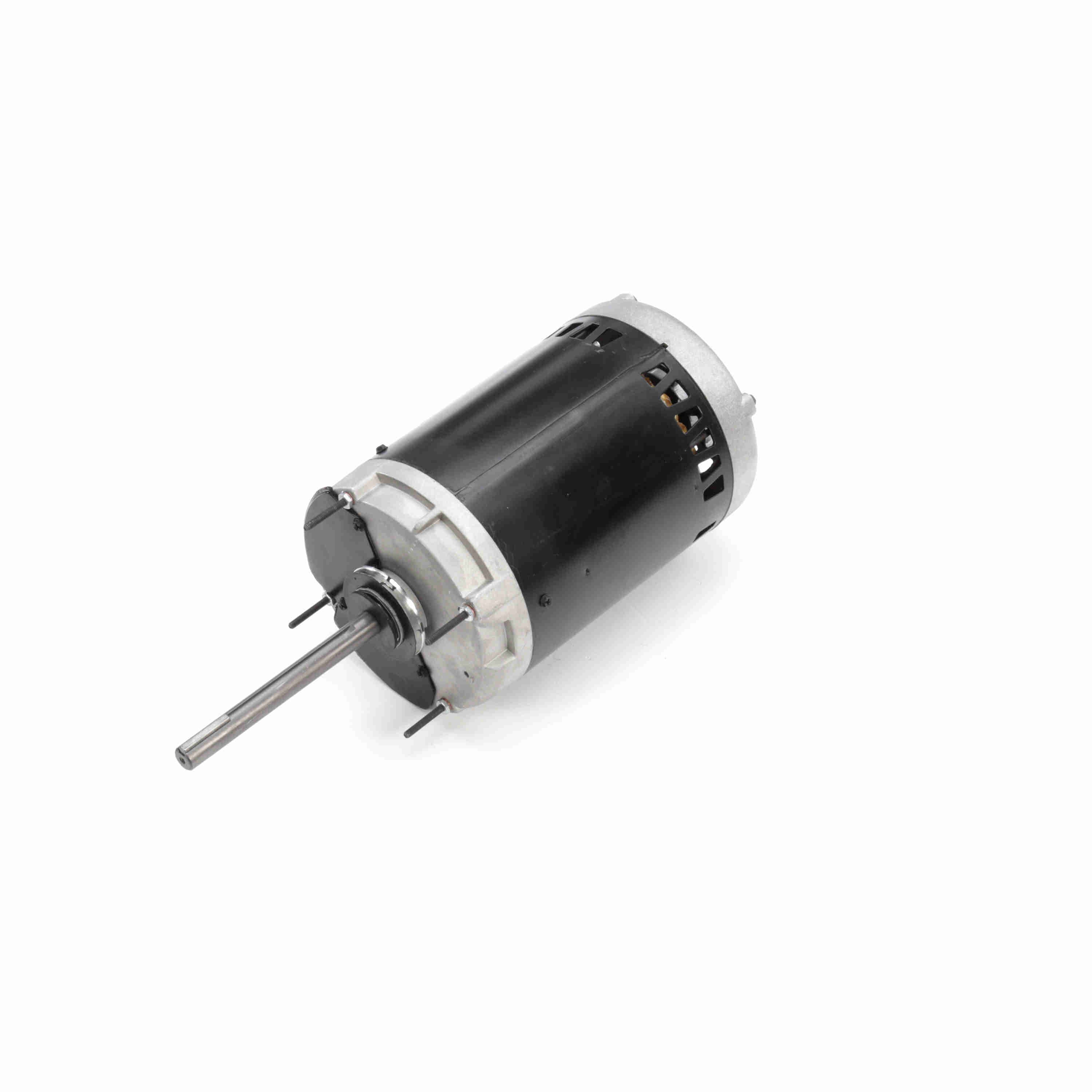

Century UC660 Condenser Fan Motor 3/4 HP 825 RPM

Product Description

The Century UC660 Condenser Fan Motor is a durable and efficient PSC motor. Suitable for HVAC systems, it offers a power output of 3/4 HP and operates at 825 RPM. Designed with a 56Y frame, it features a single-phase power supply and operates at voltages of 460/200-230. Constructed from rolled steel, this resilient base motor has ball bearings for smooth operation.

• 3/4 HP power output
• 825 RPM speed
• Resilient base mount

Product Highlights

The Century UC660 Condenser Fan Motor provides reliable performance for HVAC applications, combining power and durability. It uses a single-phase power supply, suitable for various voltage settings, and features a robust rolled steel construction.

Product Information

Standard Information

• Brand: Century
• MPN: UC660

Technical Specifications

• Electrical Type: PSC
• HP: 3/4
• KW: 0.56
• RPM: 825
• Frame: 56Y
• Diameter: 6.5
• Enclosure: OAO
• Phase: Single
• Voltage: 460/200-230
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting: Resilient Base
• Amperage: 2.6/5.3-5.2
• Shaft Type: Keyed
• Shaft Extension: 6.000
• Shaft Diameter: 0.625
• Insulation Class: B
• Service Factor: 1
• Locked Rotor Amps:
• Poles: 8
• Start Method: Across The Line
• Ambient Temperature: 60 degrees Celsius
