Product Description

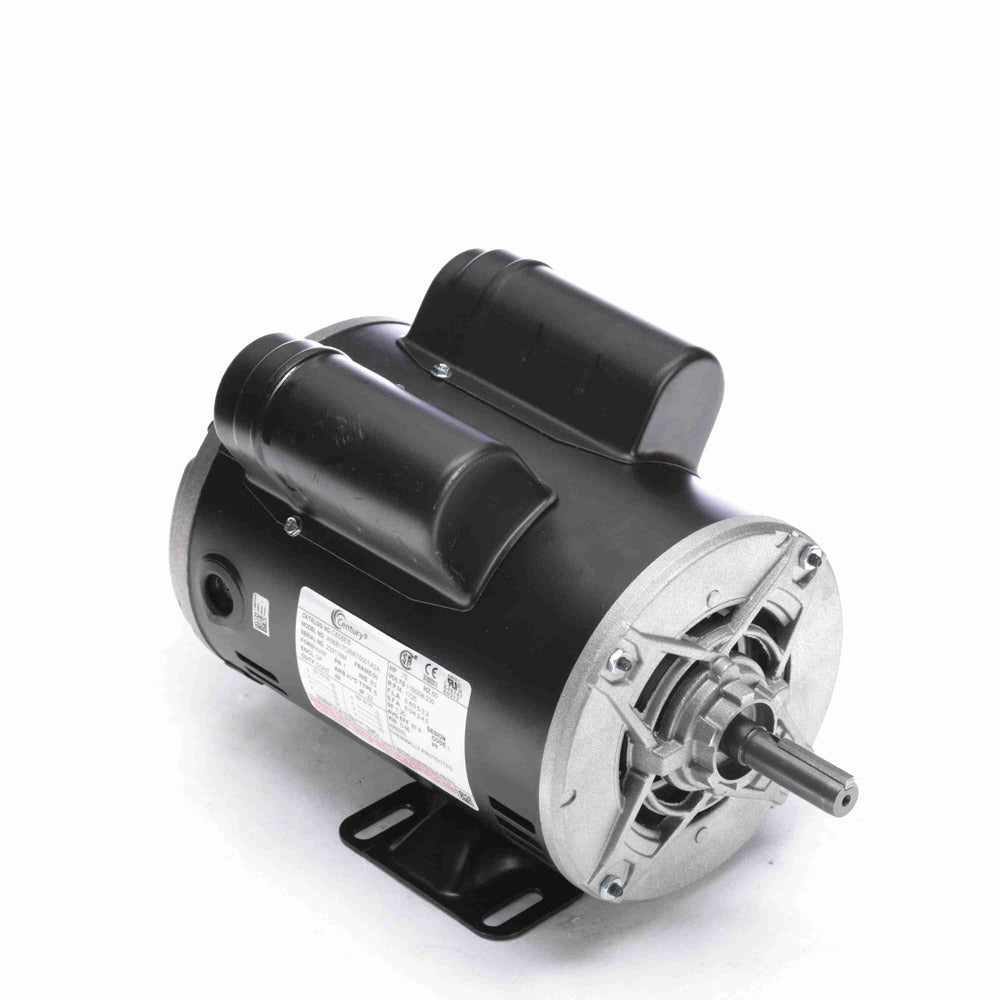

The Century UC658ES is a general-purpose motor designed for various applications. It operates at zero point seventy-five horsepower with a speed of one thousand seven hundred twenty-five RPM. This motor is constructed from rolled steel for enhanced durability. The mounting type is rigid base, and it features a drip-proof enclosure, making it suitable for different environments.
- UL recognized component with CSA certification for safety.
- Permanently lubricated, double-sealed bearings extend motor life.
- Selectable counterclockwise rotation for versatility.
Product Highlights
Reliable performance due to premium efficiency. Suitable for continuous duty applications, highlighting its heavy-duty construction.
Product Information
Standard Information
-
Motor Type: General Purpose Motor
-
Voltage: 115/208-230
Technical Specifications
-
Motor Power: 0.75 HP
-
Speed: 1725 RPM
-
Phase: 1
-
Amperage: 6.6/3.5-3.3
-
Shaft Diameter: 0.625 inches
-
Bearings Type: Ball
-
Service Factor: 1.25
-
Efficiency: 81.8%
