Product Description

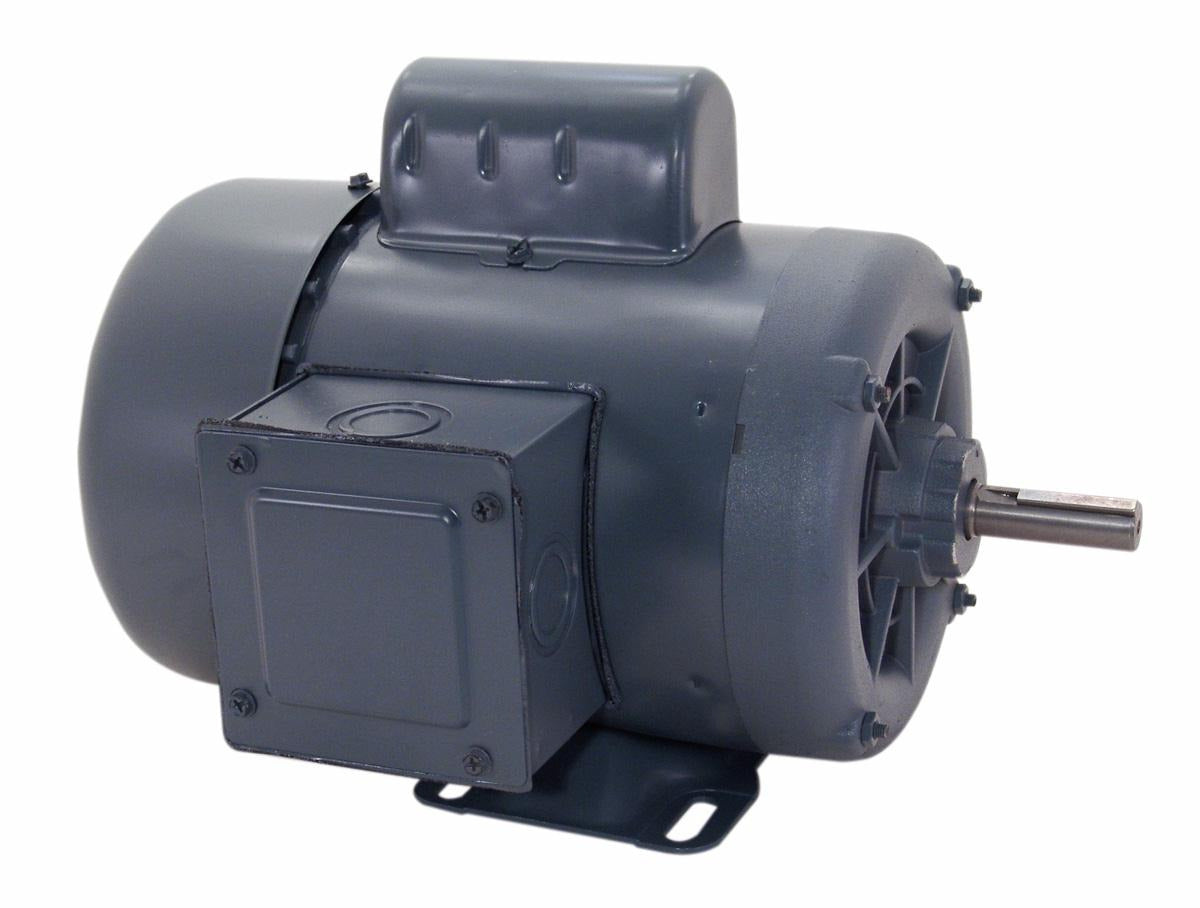

The Century UC620 is a general-purpose motor designed for various industrial applications. It provides a reliable power source with a 1 HP rating and versatile voltage options.
- 1 HP motor for various applications
- Reversible counterclockwise rotation
- Thermally protected for safety
Product Highlights
Suitable for a range of industrial tasks, this motor features a capacitor start for optimized torque and efficiency. The rolled steel construction ensures durability, and the sealed ball bearings are permanently lubricated to extend the motor's lifespan.
Product Information
Standard Information
-
Brand: Century
-
MPN: UC620
Technical Specifications
-
Electrical Type: Capacitor Start, Induction Run, Single or Dual Voltage
-
Horsepower: 1
-
KW: 0.75
-
RPM: 1725
-
Frame: L56
-
Diameter: 6.5 inches
-
Enclosure: Totally Enclosed Fan Cooled
-
Phase: 1
-
Voltage: 208-230/115
-
Rotation: Reversible Counterclockwise
-
Material: Rolled Steel
-
Bearings Type: Ball/Ball
-
Bearings SE Type: Ball
-
Bearings OSE Type: Ball
-
Mounting: Rigid Base
-
Amperage: 6.2-6.0/12.0
-
Shaft Type: Keyed
-
Shaft Extension: 1.94 inches
-
Shaft Diameter: 0.625 inches
-
Overload Protection: Thermally Protected
-
Ambient Temperature: 40°C
-
Frequency: 60 Hz
-
Insulation Class: B
-
Poles: 4
-
Service Factor: 1.15
-
Service Factor Amperage: Primary
-
Start Method: Across The Line
-
C Dimension: 13.36 inches
-
Duty: Continuous
-
Certifications: UL Recognized, CSA
