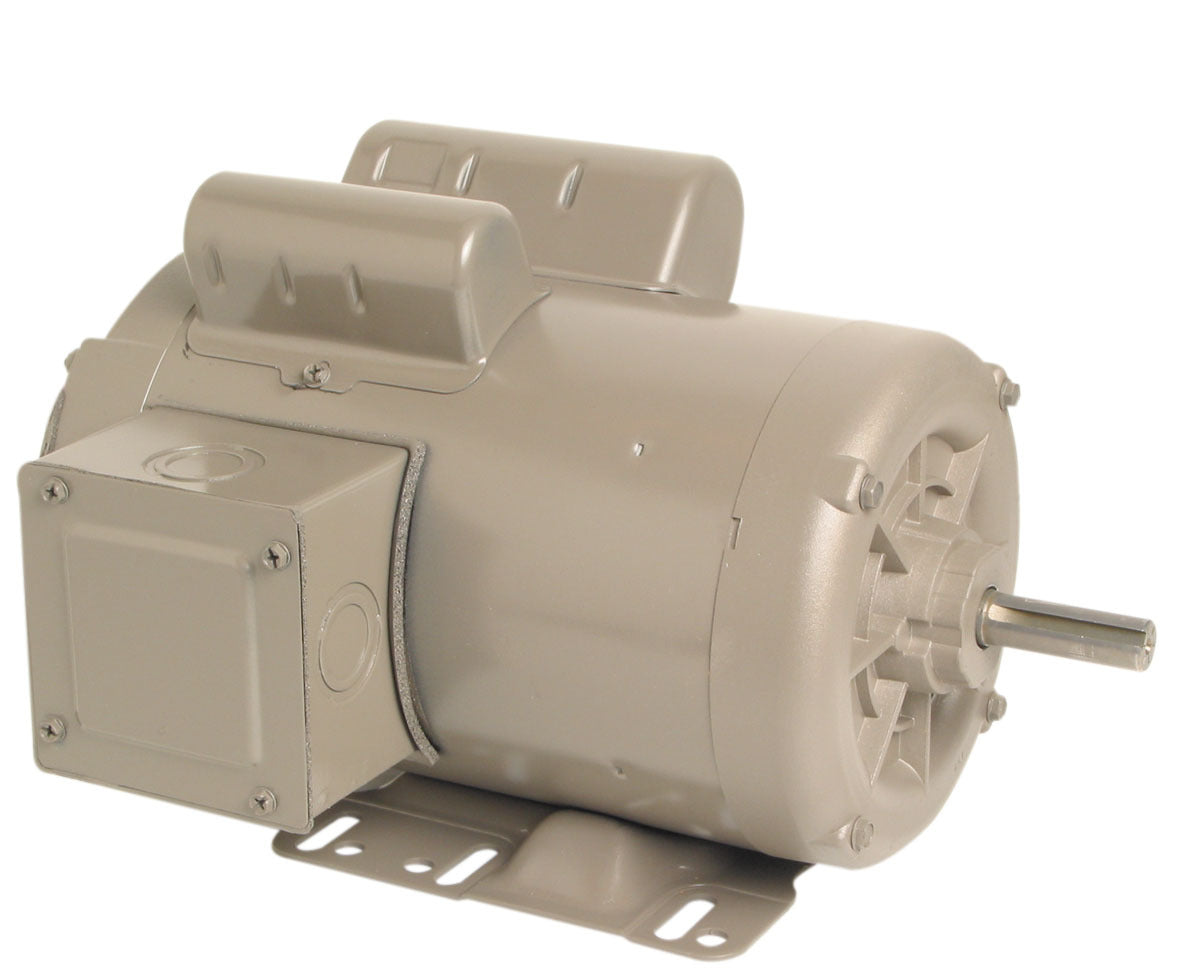

Century UC597 General Purpose Farm Duty Motor 1.0-0.29 HP 230V

Product Description

The Century UC597 General Purpose Farm Duty Motor offers reliable performance for various applications. With a power range of 1.0 to 0.29 HP, this motor ensures efficiency and durability.

• Capacitor start and run, multispeed motor
• Reversible counterclockwise rotation
• Thermally protected

Product Highlights

This motor includes a capacitor start design for optimized torque and efficiency. It features manual overload protection and double-shielded bearings for extended service life.

Product Information

Standard Information

• Brand: Century
• MPN: UC597
• Country of Origin: Mexico

Technical Specifications

• HP: 1.0-0.29
• RPM: 1725
• Frame: L56H
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Air Over
• Phase: 1
• Voltage: 230
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 5.3/3.0
• Shaft Type: Keyed
• Shaft Diameter: 0.625 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 1.94 inches
• Overload Protection: Thermally Protected
• Duty: Continuous
• Frequency: 60
• Insulation Class: B
• Poles: 4
• Service Factor: 1
• Shaft Diameter: 0.625 inches
• Ambient Temperature: 40°C
• Certifications: UL Recognized, CSA
