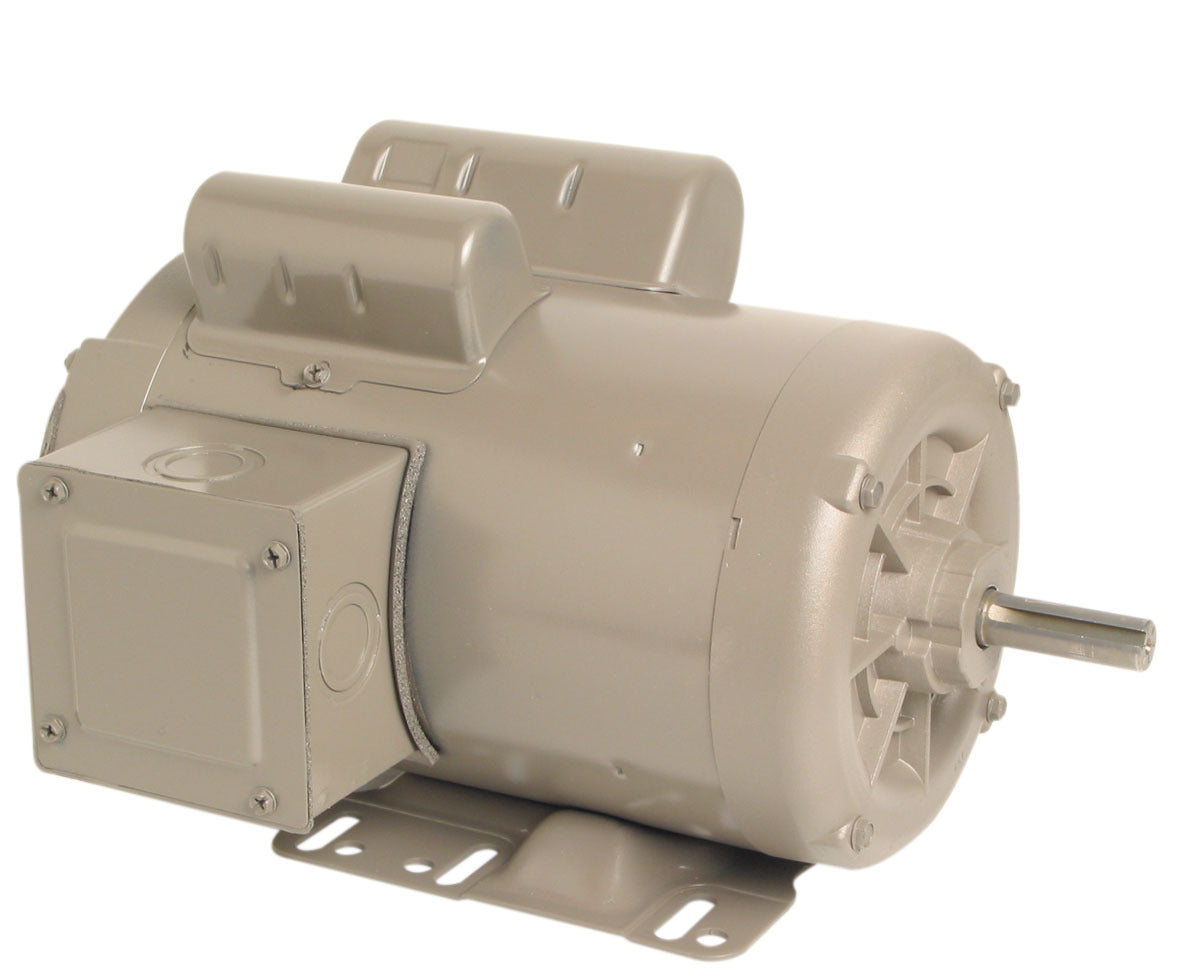

Century UC596 General Purpose Farm Duty Motor 1 HP 115V 1725 RPM

Product Description

The Century UC596 is a general purpose farm duty motor designed for reliable and efficient performance. This motor, with the MPN UC596, is built to handle various agricultural tasks.

• 1 HP power output
• 1725 RPM speed
• 115V single phase

Product Highlights

This motor is suitable for a wide range of farm applications. It features a rolled steel construction, ball bearings, and a rigid base mount.

Product Information

Standard Information

• Brand: Century
• MPN: UC596
• UPC Number: 787000000000
• Country of Origin: Mexico
• Certification CE: N
• Certification CSA: Y
• Certification UL: Recognized

Technical Specifications

• Electrical Type: PSC / Split Phase
• Horsepower: 1
• KW: 0.75
• RPM: 1725
• Frame: 56H
• Diameter: 6.5
• Enclosure: TEAO
• Phase: Single
• Voltage: 115
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting: Rigid Base
• Amperage: 11.4/6.4
• Shaft Type: Keyed
• Shaft Extension: 1.940
• Shaft Diameter: 0.625
