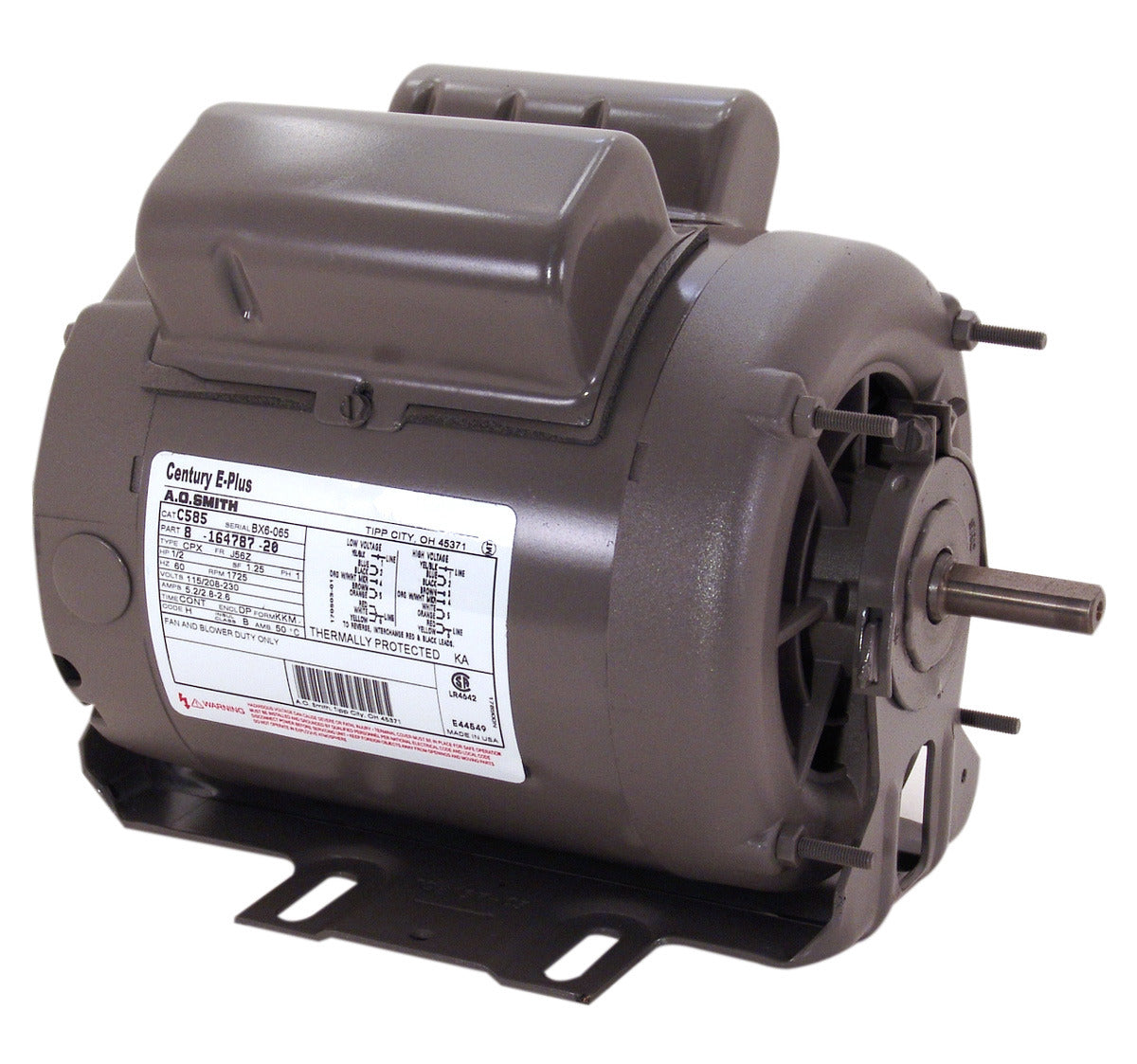

Century UC585 General Purpose Motor 1/2 HP 115/208-230

Product Description

The Century UC585 General Purpose Motor is designed for a variety of applications. It features a capacitor start and capacitor run design that improves efficiency. This motor operates at one-half horsepower with a speed of 1725 RPM. The unit can run on voltages of one hundred fifteen or two hundred eight/ two hundred thirty. It is constructed with rolled steel and has a drip-proof enclosure suitable for demanding environments.

• Reversible clockwise rotation for versatile installation
• Thermally protected for safety
• Cushion base mounting for reduced vibration

Product Highlights

This motor is energy efficient and suited for continuous duty applications.

Product Information

Standard Information

• Brand: Century
• Model: UC585

Technical Specifications

• HP: 1/2
• KW: 0.37
• RPM: 1725
• Frame: J56Z
• Voltage: 115/208-230
• Amperage: 5.2/2.8-2.6
• Shaft Diameter: 0.625 inches
• Shaft Extension: 1.560 inches
