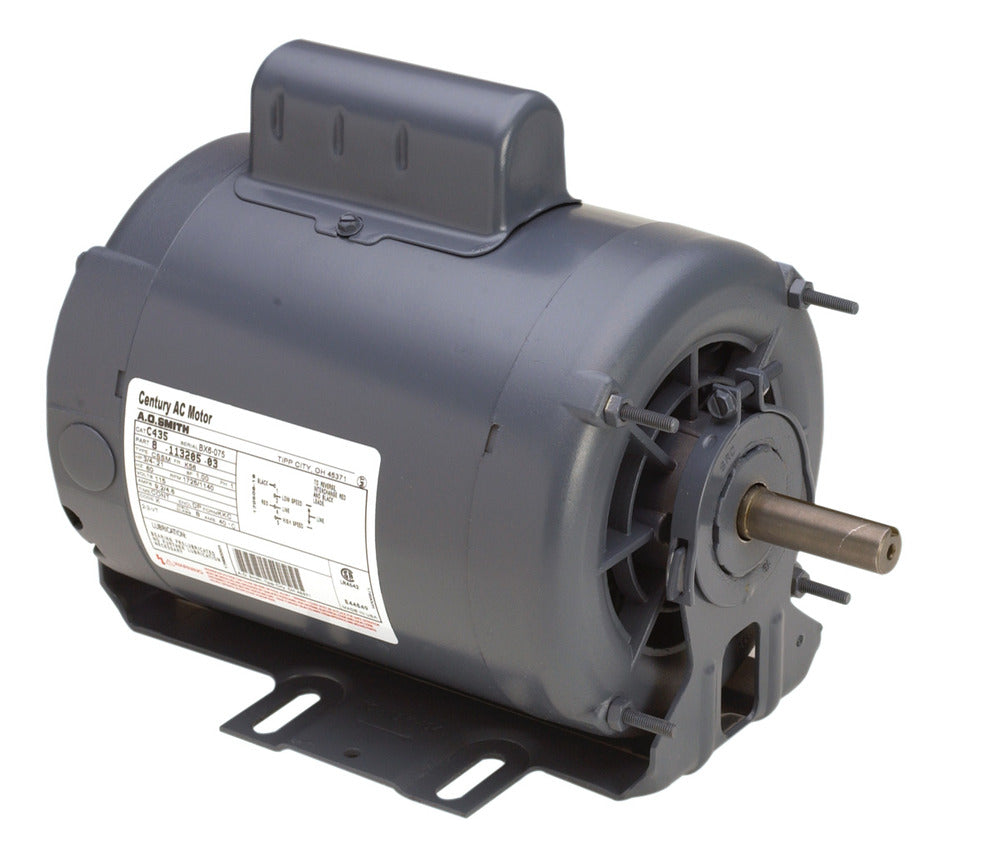

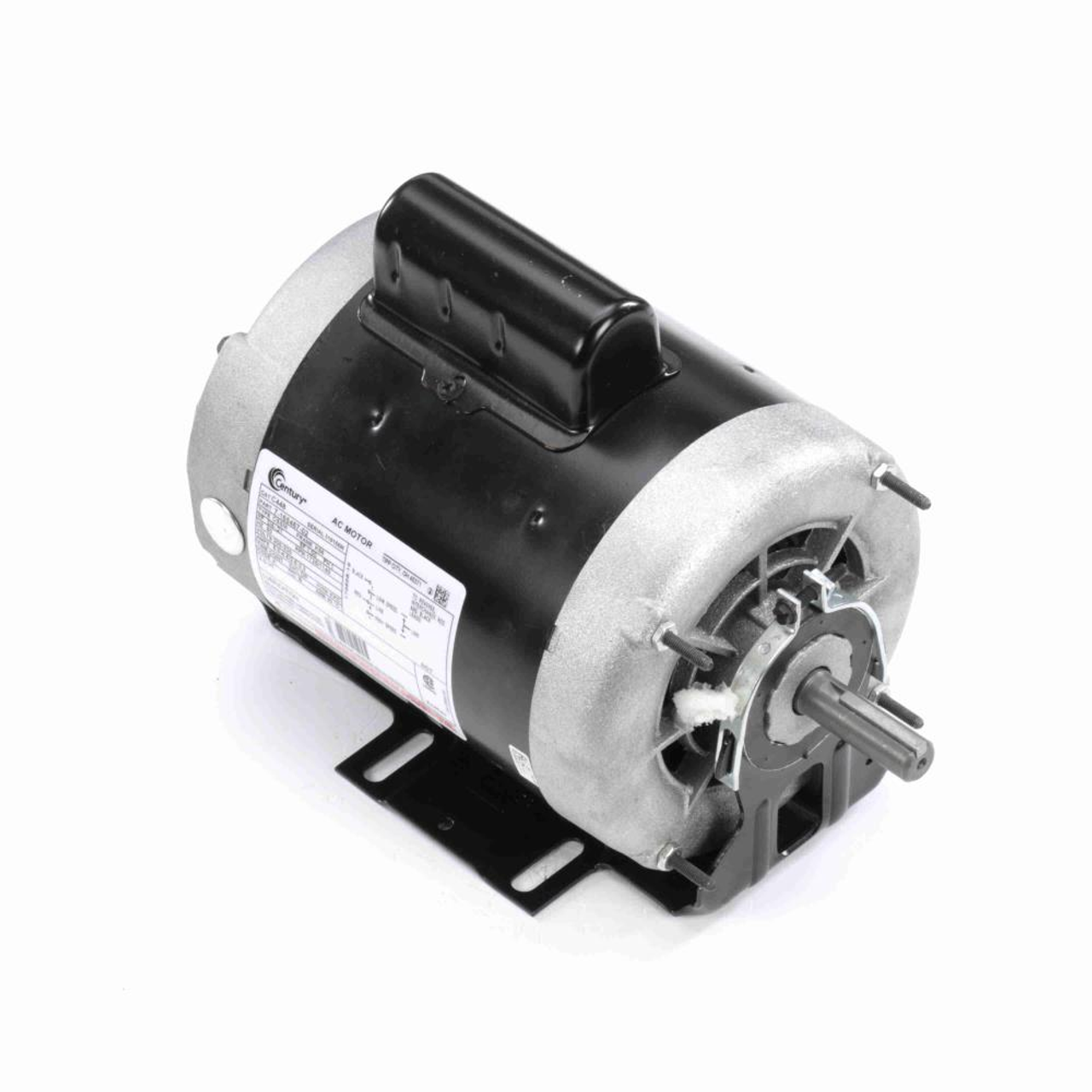

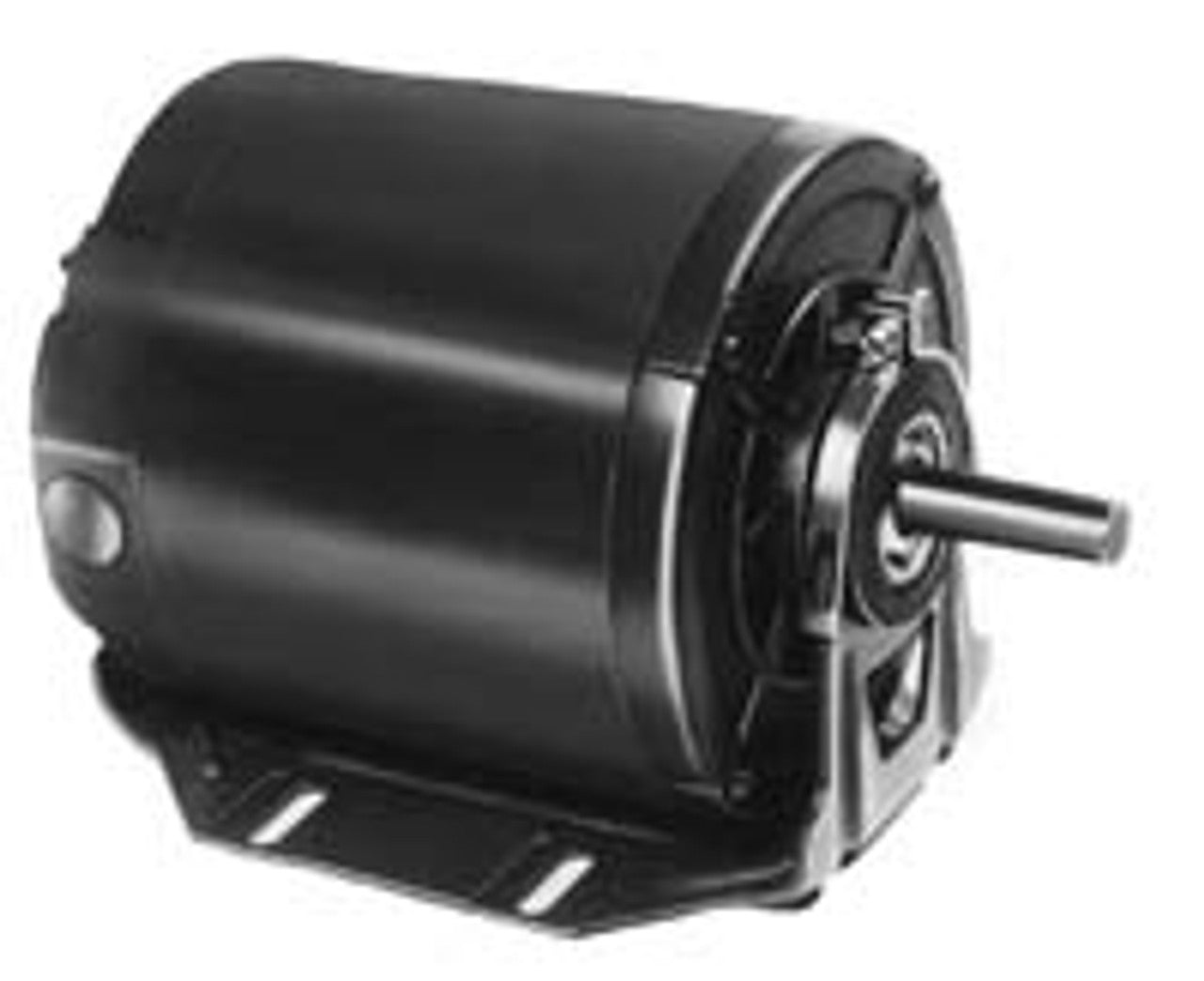

CENTURY MOTORS UC448 Fan and Blower Motor

Product Description

The CENTURY MOTORS UC448 fan and blower motor is intended for continuous duty uses in various applications. This motor supports reversible rotation and features a capacitor start for efficient operation. It operates as a belted drive motor with two speeds and a two-winding variable torque mechanism. The motor includes class B insulation and quick connect terminals.

• Reversible rotation for flexible installation.
• Capacitor start for reliable performance.
• Open drip proof enclosure for durability.

Product Highlights

The UC448 is suitable for HVAC systems and industrial use, providing reliable airflow control.

Product Information

Standard Information

• Manufacturer Part Number: UC448
• Horsepower: 3/4-.21 HP

Technical Specifications

• Number of Speeds: 2
• RPM: 1725/1140
• Input Voltage: 208-230 V
• Full Load Amps: 5.0-4.6/2.5-2.3
• Service Factor: 1.00
• Frame: 56
• Bearings: Ball Bearings
• Electrical Type: Capacitor start
• Enclosure: ODP (Open Drip Proof)
• Rotation: Reversible
• Overload Protector: Yes
• Material: Rolled steel
• Extended Bolts: Yes
• Shaft End: Yes
• Shaft Size: 5/8 inches x 1 7/8 inches
• Shaft Height: 3.5 inches
