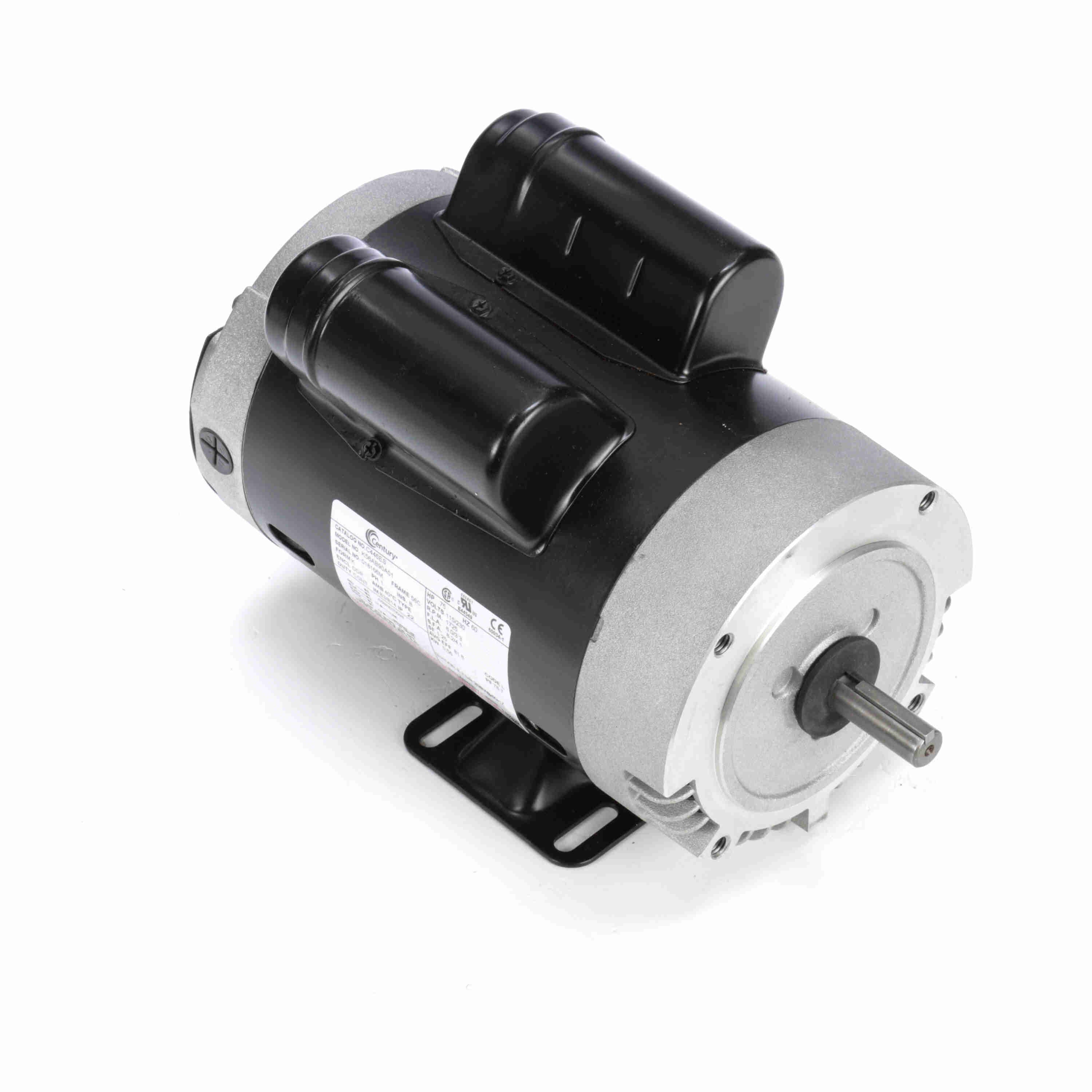

Century UC446ES General Purpose Motor 0.75 HP 115/230V 1725 RPM

Product Description

The Century UC446ES General Purpose Motor, with MPN UC446ES, is designed to offer efficient performance for various applications. This motor operates with a capacitor start and capacitor run mechanism, providing a 0.75 HP power output. Suitable for several trade uses, it ensures reliability and optimal functionality.

• Capacitor start and capacitor run mechanism.
• 0.75 HP power output.
• Rated for 115/230V, 1725 RPM.

Product Highlights

Ideal for different general-purpose applications, this motor features a robust rolled steel construction and permanently lubricated, double-sealed ball bearings to enhance durability. It is UL recognized and adheres to CSA standards, ensuring safety in various environments.

Product Information

Standard Information

• Brand: Century
• MPN: UC446ES
• Power: 0.75 HP

Technical Specifications

• Electrical Type: Capacitor Start Capacitor Run
• HP: 0.75
• KW: 0.56
• RPM: 1725
• Frame: 56C
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof
• Phase: 1
• Voltage: 115/230V
• Rotation: Counterclockwise Lead End
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: Rigid Base
• Amperage: 6.0/3.3
• Shaft Extension: 2.06 inches
• Shaft Diameter: 0.625 inches
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: B
• Service Factor: 1.25
