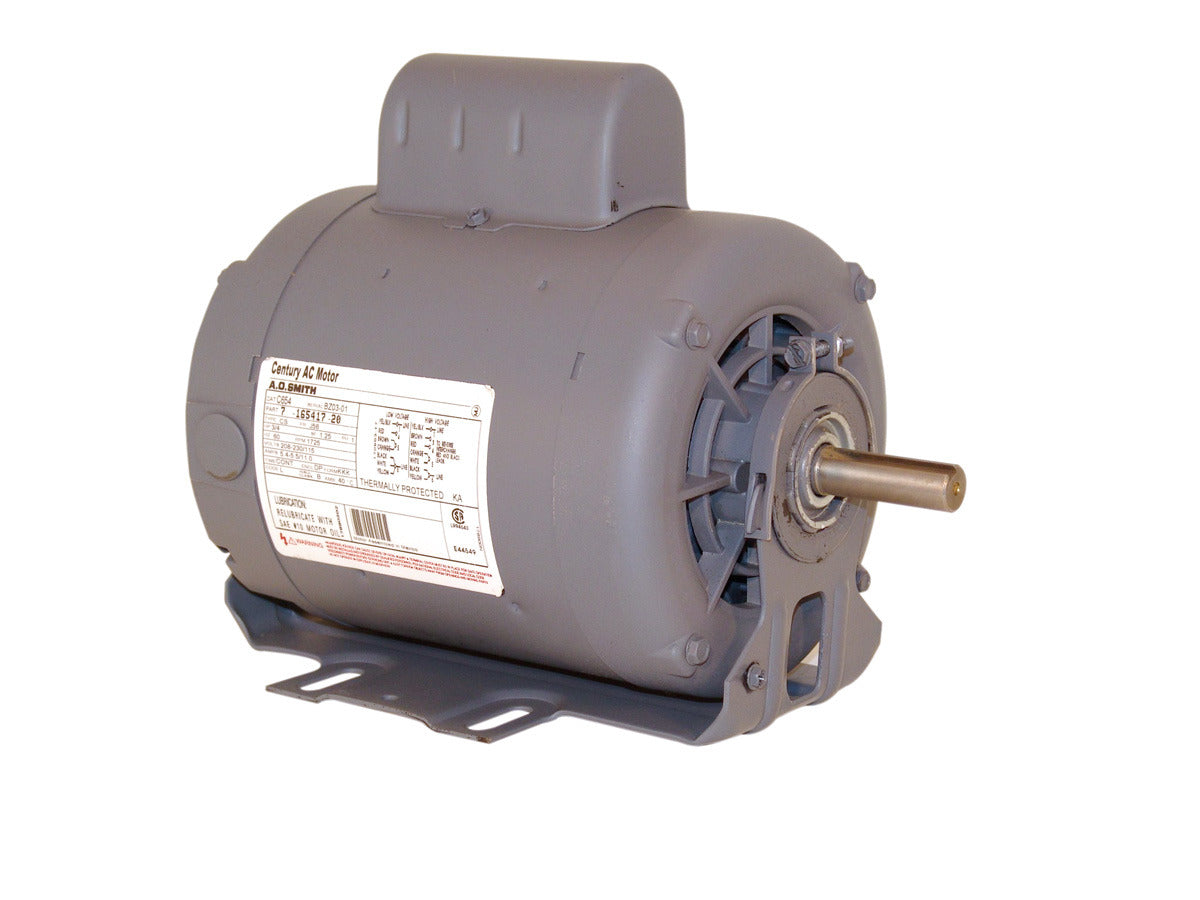

Century UC412 Fan and Blower Motor 1/2 HP 115/208-230V

Product Description

The Century UC412 Fan and Blower Motor is designed for various HVAC applications. This durable motor is equipped with a 1/2 HP power rating and operates on 115/208-230V. It maintains 1725 RPM and features a resilient base for easy mounting.

• 1/2 HP power
• 115/208-230V
• 1725 RPM

Product Highlights

This motor provides reliable performance in HVAC systems. It's built with a rolled steel material and a resilient base for easy installation.

Product Information

Standard Information

• Brand: Century
• MPN: UC412
• Type: Fan and Blower Motor
• Class: Fan and Blower Motor
• Country of Origin: Mexico
• UPC: 787000000000

Technical Specifications

• Electrical Type: Cap Start
• HP: 1/2
• KW: 0.37
• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/208-230
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Resilient Base
• Amperage: 8.2/4.0-4.1
• Shaft Type: NEMA 56
• Shaft Extension: 1.960 inches
• Shaft Diameter: 0.625 inches
• Certification CE: Yes
• Certification CSA: Yes
• Certification UL: Recognized
• Ambient Temperature: 40°C
• Duty: Continuous
• Insulation Class: B
• Service Factor: 1.25
• Poles: 4
• Start Method: Across The Line
