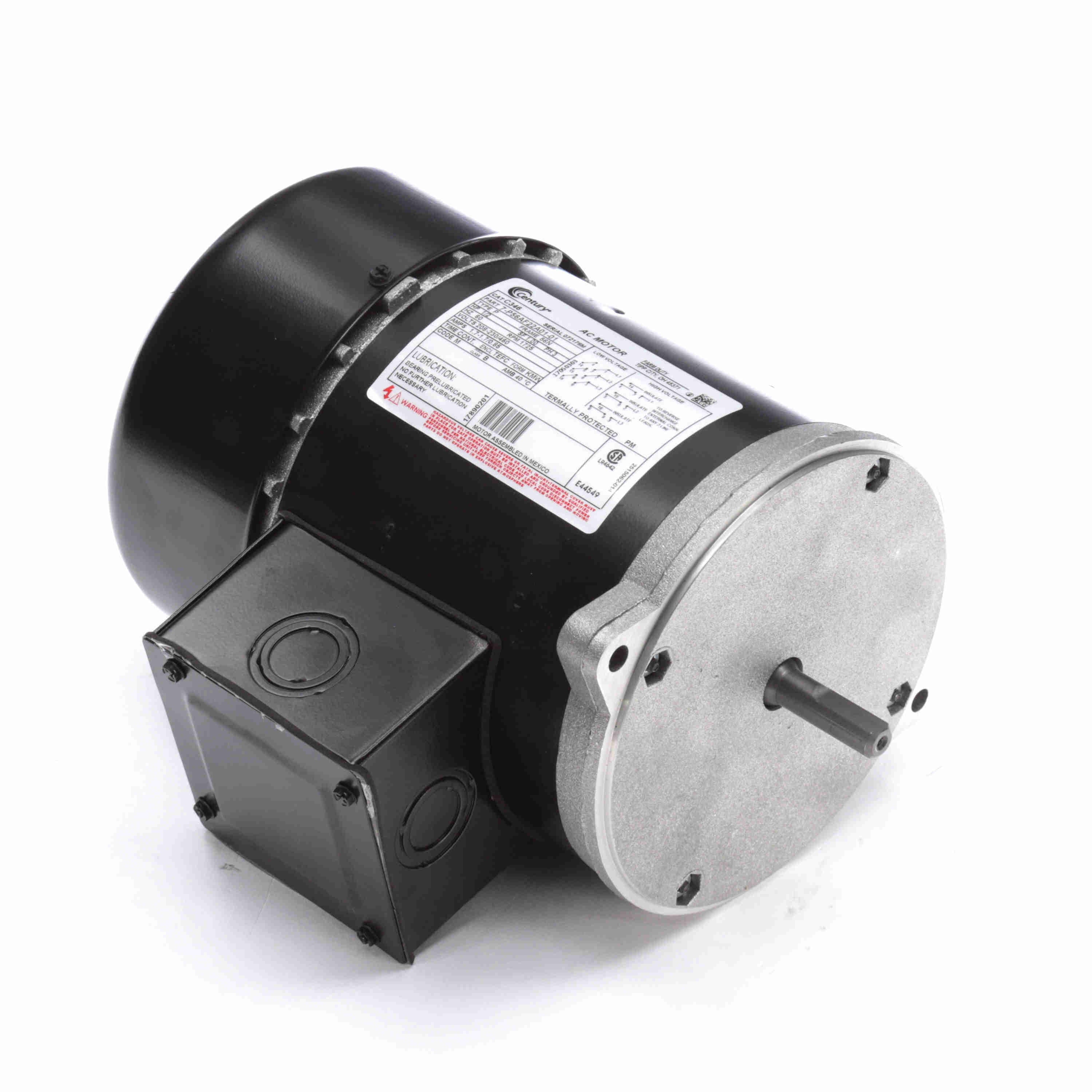

Century UC346 Auger Drive Motor 1/2 HP 208-230/460 V

Product Description

The Century UC346 Auger Drive Motor is designed for effective operation in agricultural applications. This motor has a power output of one half horsepower and operates at a range of two hundred eight to four hundred sixty volts. It features a totally enclosed fan cooled design which extends its lifespan and efficiency.

• Powerful one half horsepower motor
• Three-phase operation with reversible rotation
• UL recognized and CSA certified for safety

Product Highlights

The Century UC346 is a reliable and durable motor suitable for various auger drive applications. Its thermally protected design helps prevent overloads, ensuring consistent performance.

Product Information

Standard Information

• Electrical Type: Polyphase
• Enclosure Type: Totally Enclosed Fan Cooled

Technical Specifications

• Horsepower: 0.5
• Voltage: 208-230/460
• RPM: 1725
• Frame Size: 56N
• Bearings Type: Ball / Ball
• Shaft Extension: 1.75 inches
• Shaft Diameter: 0.5 inches
• Amperage: 1.7-1.7/0.85
• Ambient Temperature Rating: 40°C
