Product Description

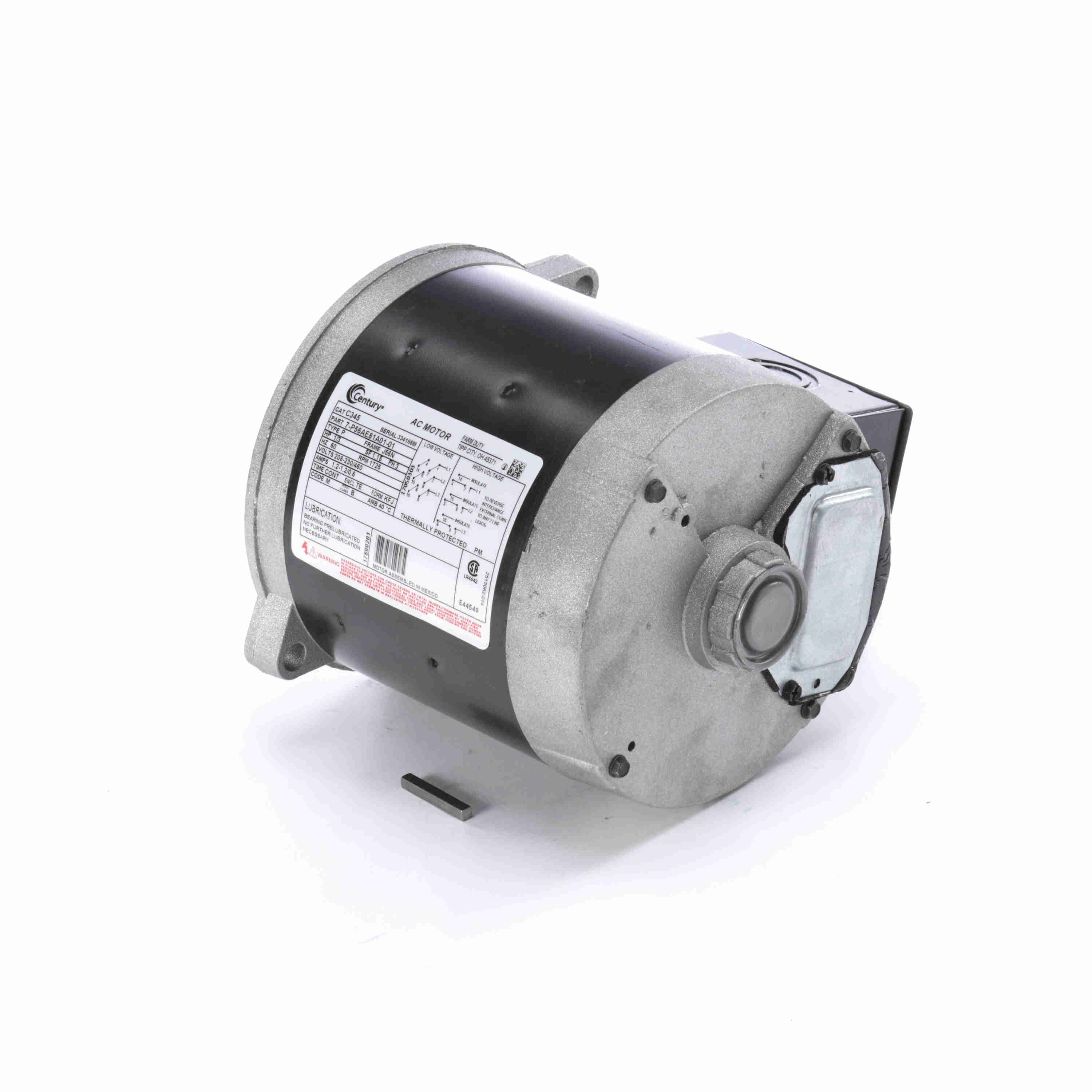

The Century UC345 Auger Drive Motor is built for farm duty applications. Featuring a 1/3 HP motor, this unit operates at 1725 RPM with a voltage of 208-230/460V. This motor is designed with a totally enclosed non-ventilated enclosure and a polyphase electrical type. The motor frame is J56N and the motor is thermally protected.
- Polyphase Electrical Type
- Thermally Protected
- Totally Enclosed Non-Ventilated
Product Highlights
This motor is UL recognized and CSA certified, ensuring safety and reliability. Ideal for auger drive systems, the motor includes double-shielded bearings, an extended shaft with wrench flats, and a manual-reset thermal protector.
Product Information
Standard Information
-
Brand: Century
-
MPN: UC345
-
UPC Number: 787000000000
-
Country of Origin: Mexico
Technical Specifications
-
Electrical Type: Polyphase
-
Horsepower: 1/3 HP
-
KW: 0.25
-
RPM: 1725
-
Frame: J56N
-
Diameter: 6.5 inches
-
Enclosure: Totally Enclosed Non-Ventilated
-
Phase: Three
-
Voltage: 208-230/460V
-
Rotation: Reversible Counterclockwise
-
Material: Rolled Steel
-
Bearings Type: Ball / Ball
-
Mounting: Round
-
Amperage: 1.2-1.2/0.6
-
Shaft Type: Flat
-
Shaft Extension: 1.75 inches
-
Shaft Diameter: 0.5 inches
-
Overload: Thermally Protected
