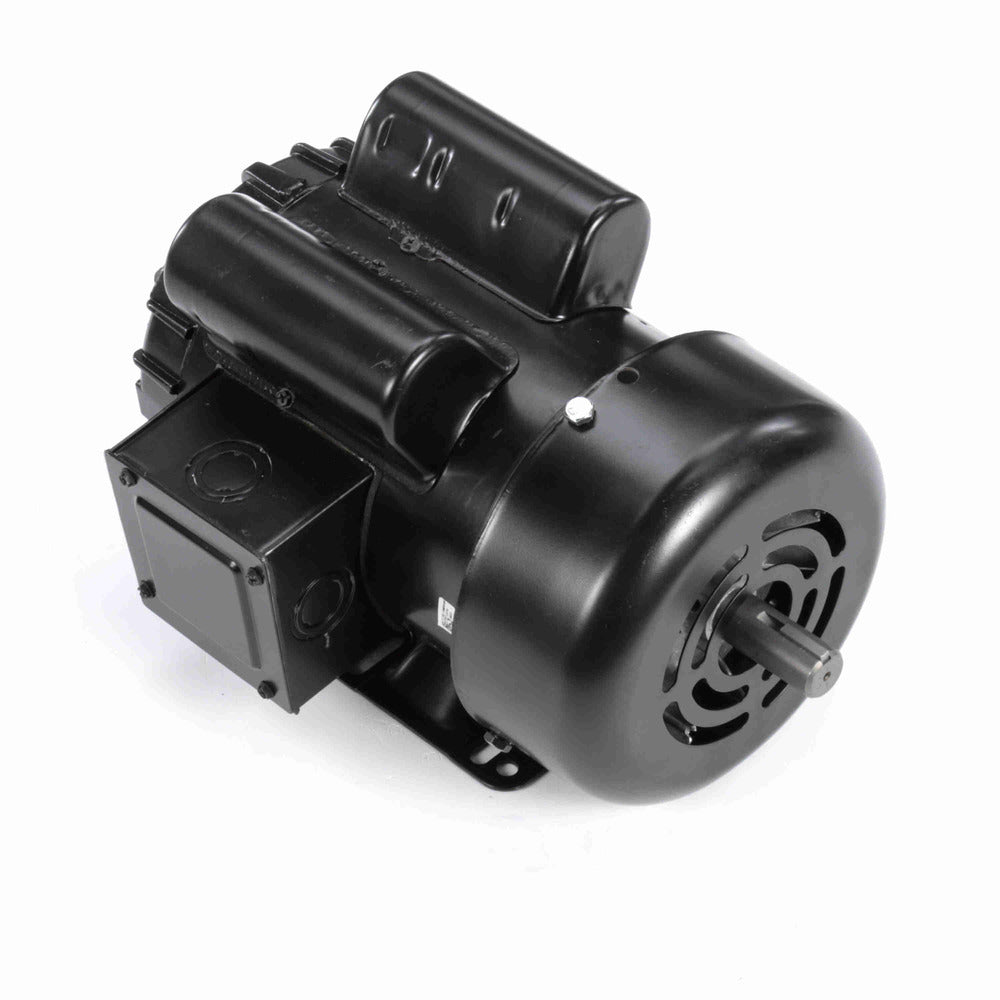

Century UC317 Grain Stirring Motor 1.5 HP Capacitor Start Capacitor Run Single or Dual Voltage 230V Thermally Protected

Product Description

The Century UC317 Grain Stirring Motor is designed for agricultural applications. This motor offers 1.5 HP power and features capacitor start and capacitor run for efficient operation. It is suitable for single or dual voltage usage and runs at 230 volts. The thermally protected design ensures safety during extended use.

• UL recognized component and CSA certification
• Manual overload protector for safety
• Thermally protected 1.5 HP motor

Product Highlights

Ideal for safely and efficiently stirring grain with a powerful thermally protected motor.

Product Information

Standard Information

• Brand: Century
• MPN: UC317
• Class: Grain Stirring Motor

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Horsepower: 1.5 HP
• RPM: 1725
• Frame: M56Y
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Fan Cooled
• Phase: 1
• Voltage: 230
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 7.4
• KW: 1.1
• Shaft Diameter: 0.875 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 1.44 inches
• Shaft Type: Keyed
• Overload: Thermally Protected
