Product Description

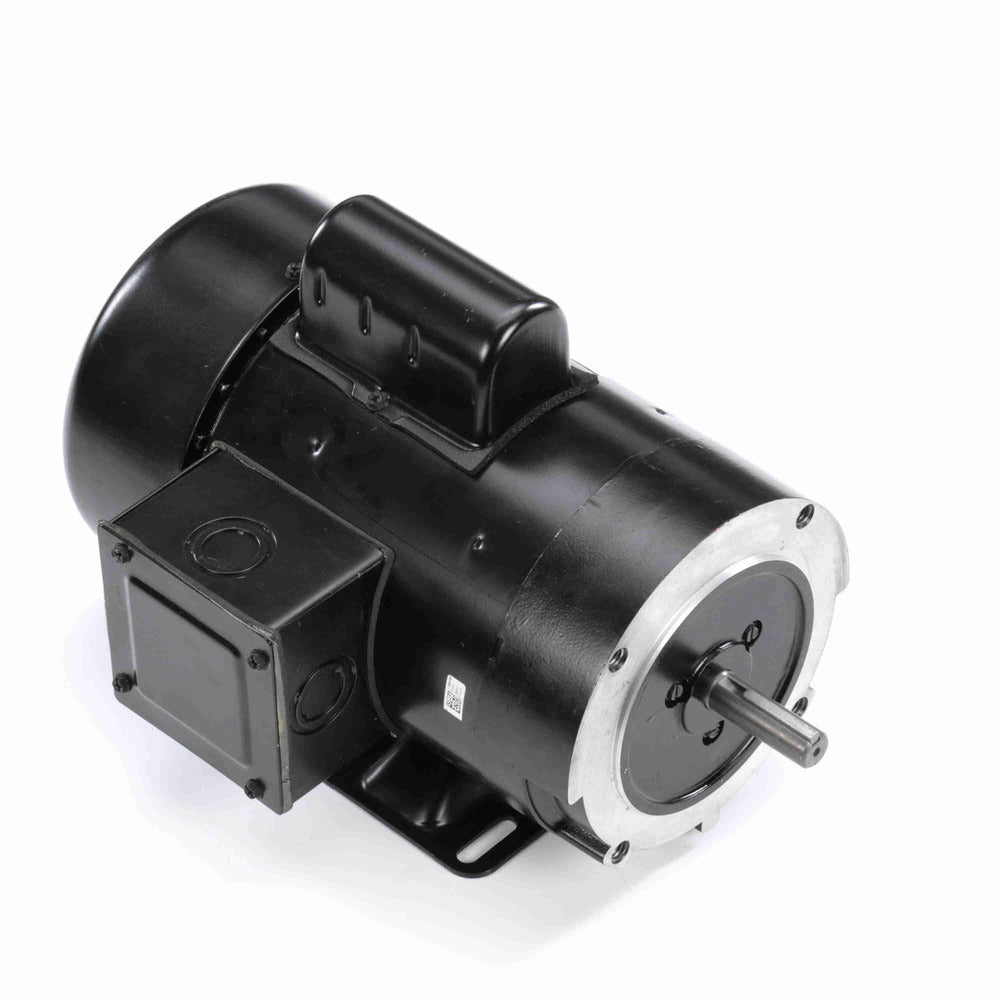

The Century UC313C is an agricultural fan motor designed to provide dependable ventilation solutions. It operates with a power rating of 1.0 HP and a rotational speed of 1725 RPM.
- Capacitor Start, Induction Run
- Thermally Protected
- Rigid Base Mounting
Product Highlights
This motor is constructed with rolled steel and features a totally enclosed fan-cooled design. It supports single or dual voltage, making it versatile for various applications. The reversible counterclockwise rotation and keyed shaft extension enhance its suitability for agricultural use where consistent airflow is critical.
Product Information
Standard Information
-
Brand: Century
-
Model: UC313C
Technical Specifications
-
Electrical Type: Capacitor Start, Induction Run
-
HP: 1.0
-
RPM: 1725
-
Frame: L56
-
Diameter: 6.5 inches
-
Enclosure: Totally Enclosed Fan Cooled
-
Phase: 1
-
Voltage: 230/115
-
Rotation: Reversible Counterclockwise
-
Overload Protection: Thermally Protected
-
Material: Rolled Steel
-
Mounting: Rigid Base
-
Amperage: 6.0/12.0
-
Shaft Type: Keyed
-
Shaft Diameter: 0.625 inches
-
Shaft Extension: 1.940 inches
