Product Description

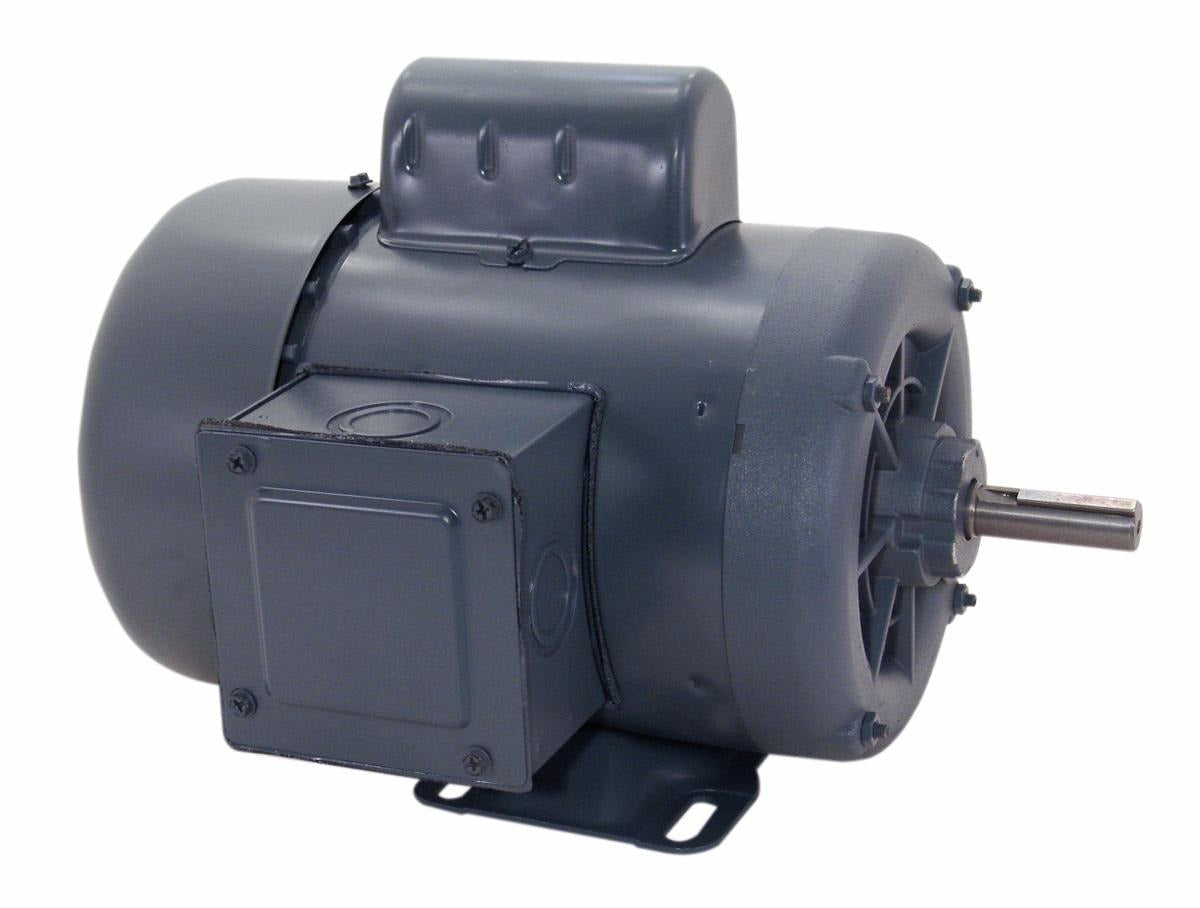

The Century UC313 is a general purpose farm duty motor designed for reliable performance in agricultural applications. The motor operates at one horsepower and is suitable for various tasks. This model can handle different voltage options, operating at two hundred thirty or one hundred fifteen volts. Its durable design includes a totally enclosed fan cooled structure to prevent dust and moisture from entering. The reversible counterclockwise rotation allows flexibility for different setups.
- Capacitor start and induction run for efficient operation
- Thermally protected with double-shielded bearings for prolonged service life
- Keyed shaft with a rigid base for secure mounting
Product Highlights
This motor is built for continuous duty and offers durable performance in demanding environments.
Product Information
Standard Information
-
Brand: Century
-
MPN: UC313
Technical Specifications
-
Motor Type: Capacitor Start, Induction Run
-
Power (HP): 1.0
-
Voltage: 230/115
-
RPM: 1725
-
Frame Size: L56
-
Amperage: 6.0/12.0
-
Shaft Diameter: 0.625 inches
-
Weight: 36 lbs
-
Dimensions: 17 inches (Length) x 11 inches (Width) x 11 inches (Height)
-
Overload Protection: Thermally Protected
