Product Description

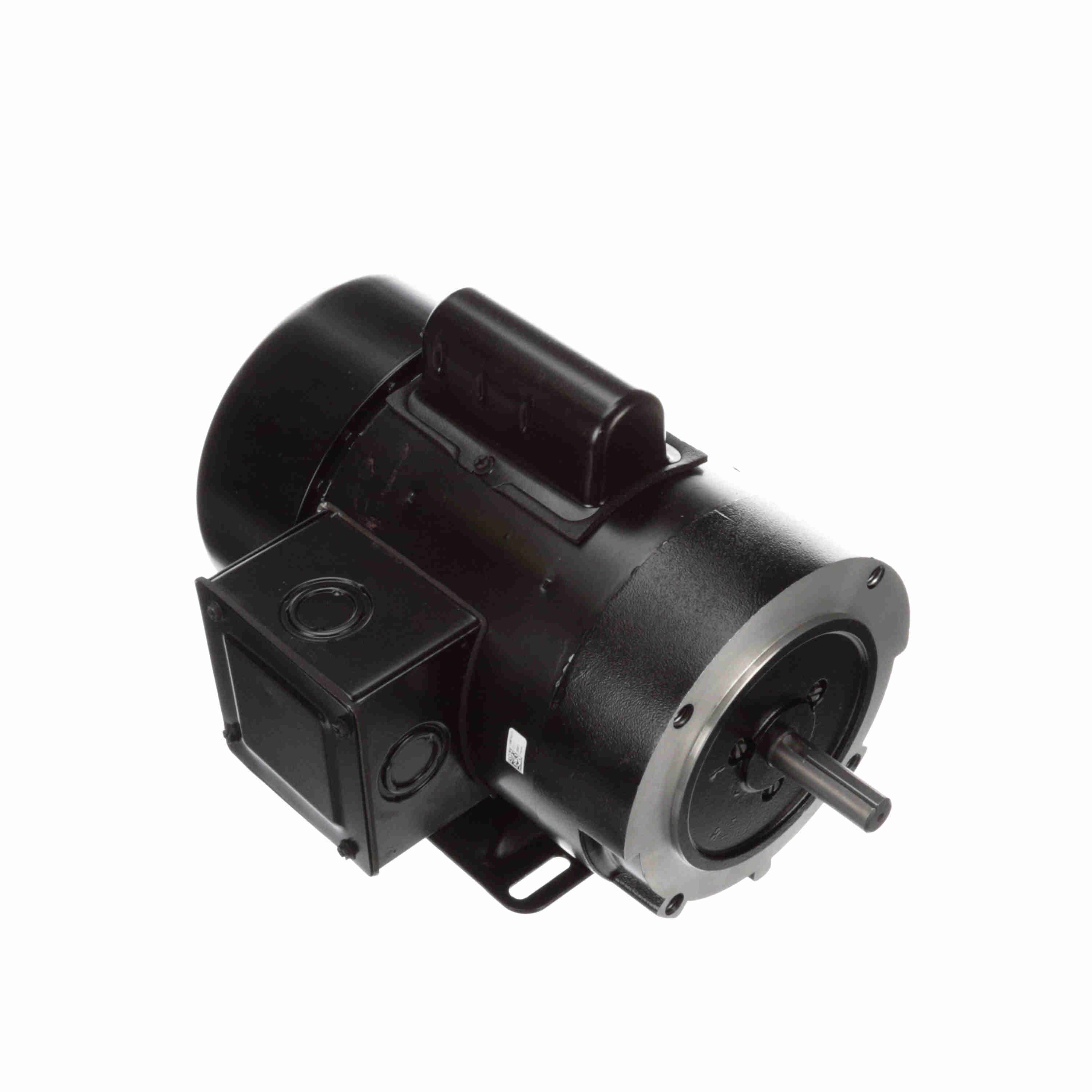

The Century UC312C General Purpose Farm Duty Motor is designed to meet the demanding needs of various farm applications. With 3/4 HP and 0.56 kW power, this motor guarantees reliable performance. It features a TEFC enclosure and is suitable for single-phase applications.
- Cap Start
- REV Rotation
- Rigid Base Mounting
Product Highlights
Perfect for farm duty applications requiring a robust and reliable motor. Single-phase, cap start with a TEFC enclosure.
Product Information
Standard Information
-
Brand: Century
-
MPN: UC312C
-
Duty: Continuous
-
Material: Rolled Steel
Technical Specifications
-
Electrical Type: Cap Start
-
HP: 3/4
-
KW: 0.56
-
RPM: 1725
-
Frame: 56C
-
Diameter: 6.5 inches
-
Enclosure: TEFC
-
Phase: Single
-
Voltage: 230/115
-
Rotation: REV
-
Bearings Type: Ball / Ball
-
Mounting: Rigid Base
-
Amperage: 5.2/10.4
-
Shaft Type: Keyed
-
Shaft Extension: 1.94 inches
-
Shaft Diameter: 0.625 inches
-
Insulation Class: B
-
Service Factor: 1.15
-
Ambient Temperature: 40C
-
Poles: 4
-
Starting Method: Across The Line
-
Frame Size: 56
