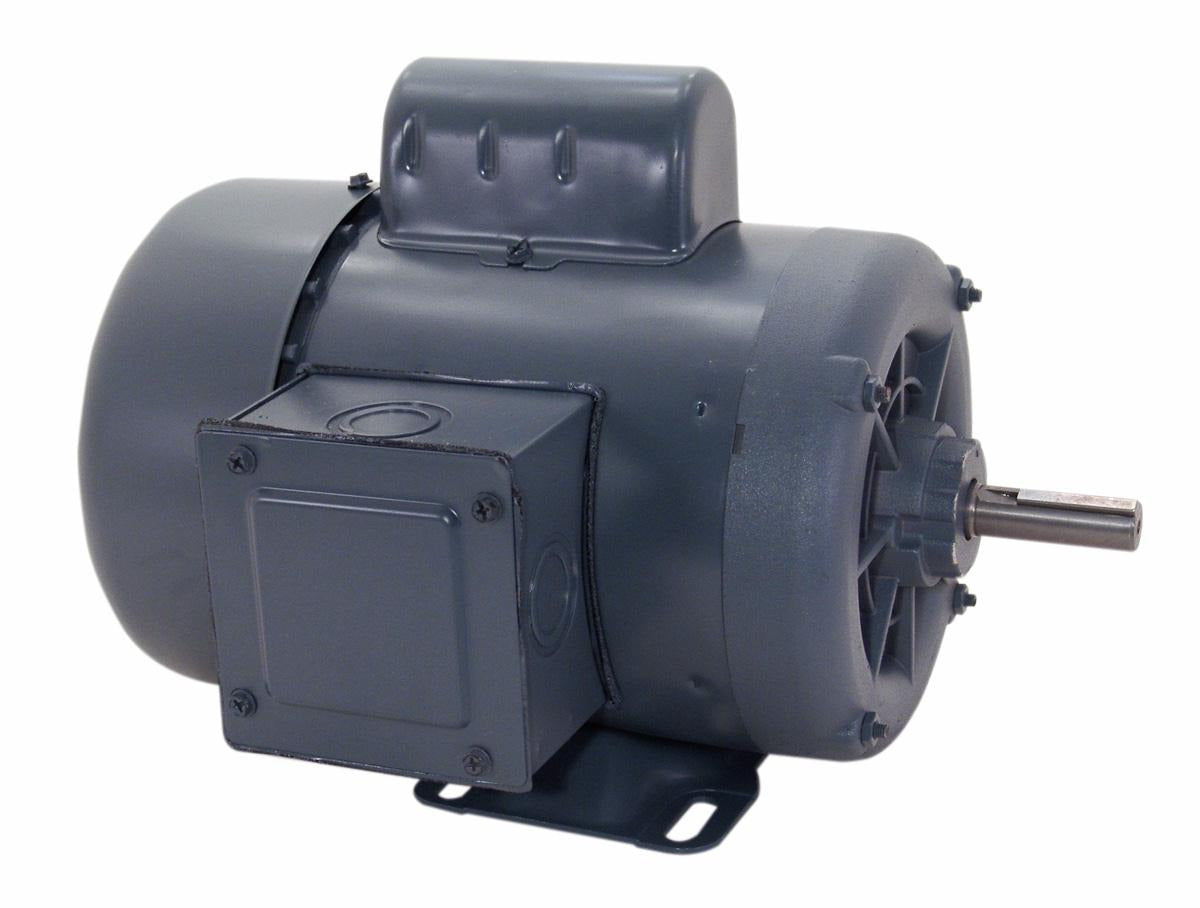

Product Description
The Century UC312 General Purpose Farm Duty Motor is a versatile and reliable option for various agricultural and industrial applications. With a power rating of 3/4 HP, this motor operates on a dual voltage of 230/115, making it suitable for different power requirements.
- Capacitor start, induction run
- Thermally protected for safety
- Reversible counterclockwise rotation
Product Highlights
This motor features a totally enclosed fan-cooled design for improved durability. It includes double-shielded ball bearings and EXXON Polyrex EM grease, allowing it to function in extreme temperatures. Condensation drains help in moisture management.
Product Information
Standard Information
-
Brand: Century
-
MPN: UC312
-
UPC: 7.87E+11
-
Country of Origin: Mexico
Technical Specifications
-
Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage
-
HP: 3/4
-
KW: 0.56
-
RPM: 1725
-
Frame: K56
-
Diameter: 6.5 inches
-
Enclosure: Totally Enclosed Fan Cooled
-
Phase: 1
-
Voltage: 230/115
-
Rotation: Reversible Counterclockwise
-
Material: Rolled Steel
-
Bearings Type: Ball / Ball
-
Mounting: Rigid Base
-
Amperage: 5.2/10.4
-
Shaft Type: Keyed
-
Shaft Extension: 1.94 inches
-
Shaft Diameter: 0.625 inches
-
Overload: Thermally Protected
-
Duty: Continuous
-
Frequency: 60 Hz
-
Insulation Class: B
-
Poles: 4
-
Service Factor: 1.15
-
Start Method: Across The Line
