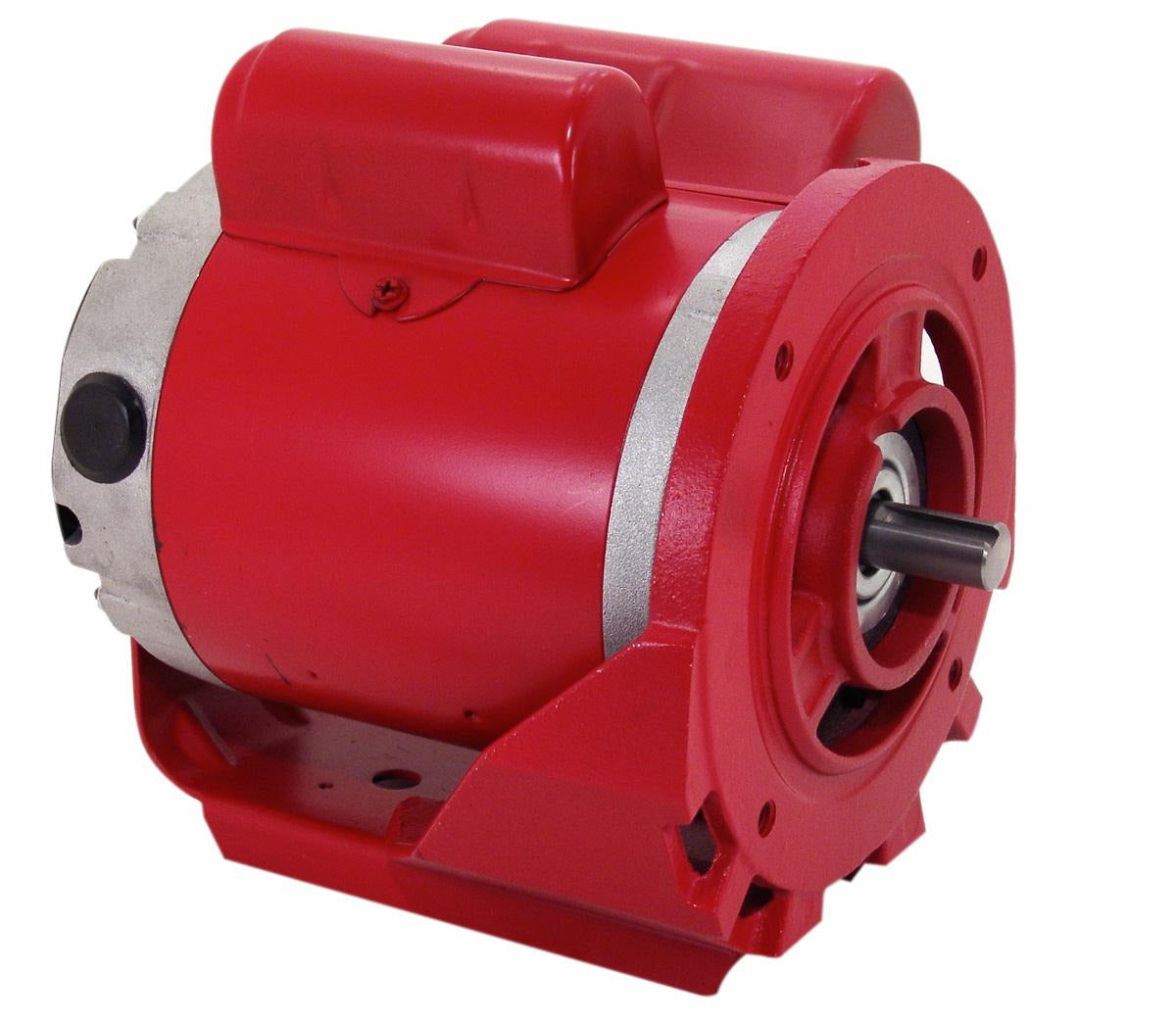

Century UC249 Hot Water Circulating Pump Motor 0.5 HP 115/208-230V

Product Description

The Century UC249 Hot Water Circulating Pump Motor is designed to ensure reliable hot water circulation. It features a 0.5 HP motor, operates at 1725 RPM, and supports voltages of 115 or 208-230. This motor is constructed with rolled steel and includes an open drip-proof enclosure for protection.

• 0.5 HP
• 1725 RPM
• Multiple voltage support

Product Highlights

This hot water circulating pump motor offers protection with a thermally protected design. It is capable of clockwise rotation and includes keyed shaft type features for better performance. Additionally, it mounts securely with a cushion base.

Product Information

Standard Information

• Brand: Century
• MPN: UC249

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Horsepower: 0.5 HP
• RPM: 1725
• Frame: Y56YZ
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof
• Phase: 1
• Voltage: 115/208-230
• Rotation: Clockwise
• Overload Protection: Thermally Protected
• Material: Rolled Steel
• Mounting: Cushion Base
• Amperage: 5.8 / 2.8-2.9
• Shaft Type: Keyed
• Shaft Diameter: 0.625 inches
• Shaft Extension: 1.18 inches
• Service Factor: 1.5
• Frequency: 60
• Insulation Class: B
• Number of Poles: 4
