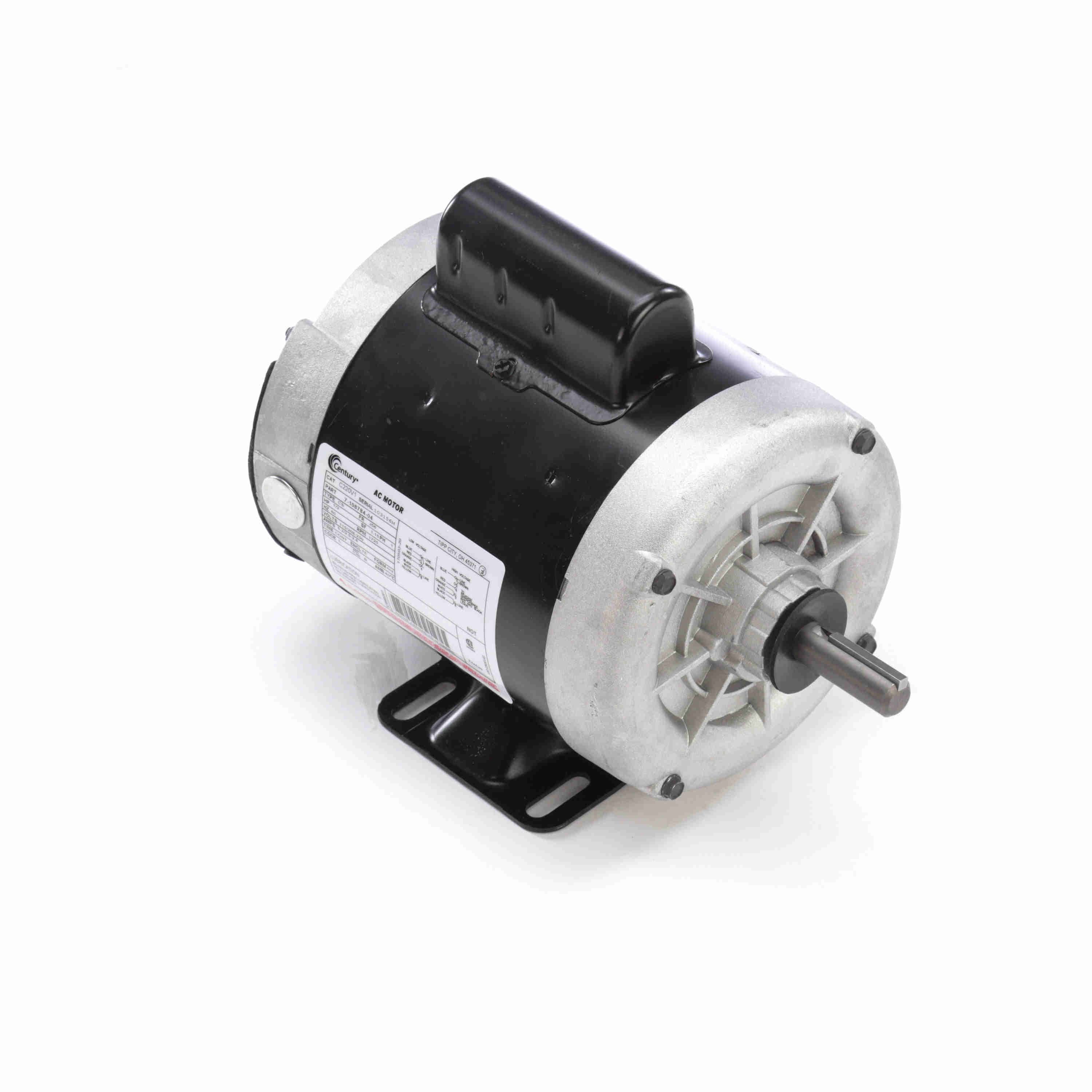

Century UC220V1 General Purpose Motor 115/208-230V 1725 RPM

Product Description

The Century UC220V1 General Purpose Motor offers a versatile solution for various electrical needs. This motor is designed with capacitor start and induction run, making it suitable for single or dual voltage applications. It operates at 115/208-230 volts with a horsepower of one-third and a speed of 1725 RPM.

• Capacitor start and induction run
• 115/208-230 volts operation
• One-third horsepower

Product Highlights

Century UC220V1 General Purpose Motor operates efficiently with a totally enclosed non-ventilated design, ensuring durability and longevity. Reversible clockwise rotation adds flexibility, while the rigid base and ball bearings guarantee stability and smooth operation.

Product Information

Standard Information

• Brand: Century
• MPN: UC220V1

Technical Specifications

• Electrical Type: Capacitor Start, Induction Run
• Horsepower: 0.33
• RPM: 1725
• Voltage: 115/208-230
• Phase: 1
• Frame: J56
• Enclosure: Totally Enclosed Non Ventilated
• Rotation: Reversible Clockwise
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 5.2/2.5-2.6
• Shaft Type: Keyed
• Shaft Diameter: 0.625 inches
• Shaft Extension: 1.97 inches
• Insulation Class: B
