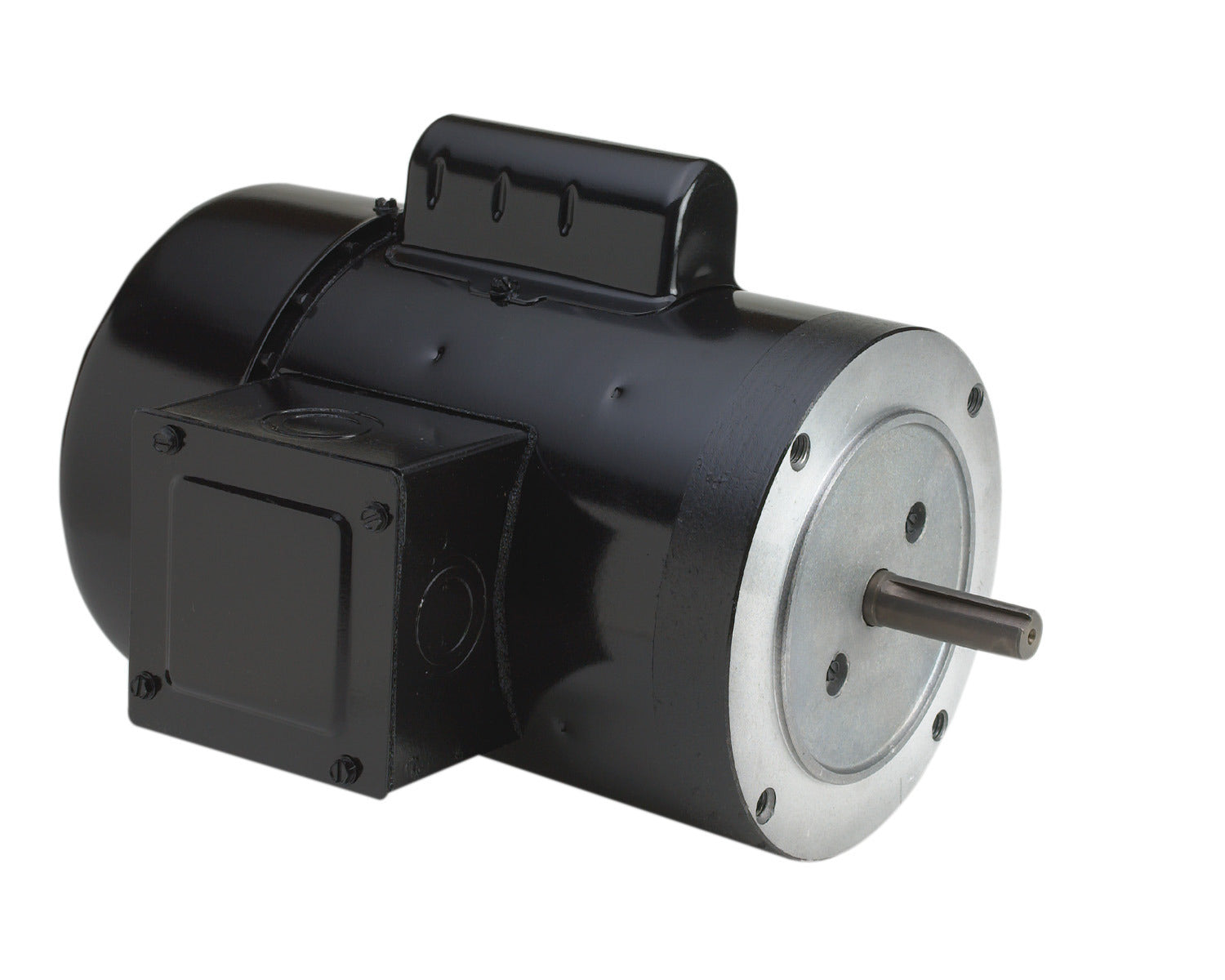

Century UC209 General Purpose Motor 1/3 HP 115/208-230

Product Description

The Century UC209 is a General Purpose Motor designed for various applications. This motor operates at one third horsepower, with a voltage rating of one hundred fifteen to two hundred eight volts and two hundred thirty volts. It features a capacitor start, induction run design that provides high efficiency and torque.

• Constructed with heavy-duty, rolled steel for durability
• Includes permanently lubricated, sealed bearings for extended motor life
• Reversible counterclockwise rotation for flexible installation

Product Highlights

This motor is suited for continuous duty cycles, enabling maximum operation at rated power levels. The UL recognized and CSA certified ensures it is safe for use in various environments.

Product Information

Standard Information

• Brand: Century
• Type: General Purpose Motor

Technical Specifications

• HP: 1/3
• Voltage: 115/208-230
• RPM: 1140
• Frame: L56C
• Dimensions: 15.5 inches (Length) x 10.5 inches (Width) x 10 inches (Height)
• Weight: 32 pounds
• Mounting Type: Round
• Amperage: 6.0/3.0-3.0
• Shaft Type: Keyed
• Shaft Diameter: 0.625 inches
• Bearings Type: Ball / Ball
