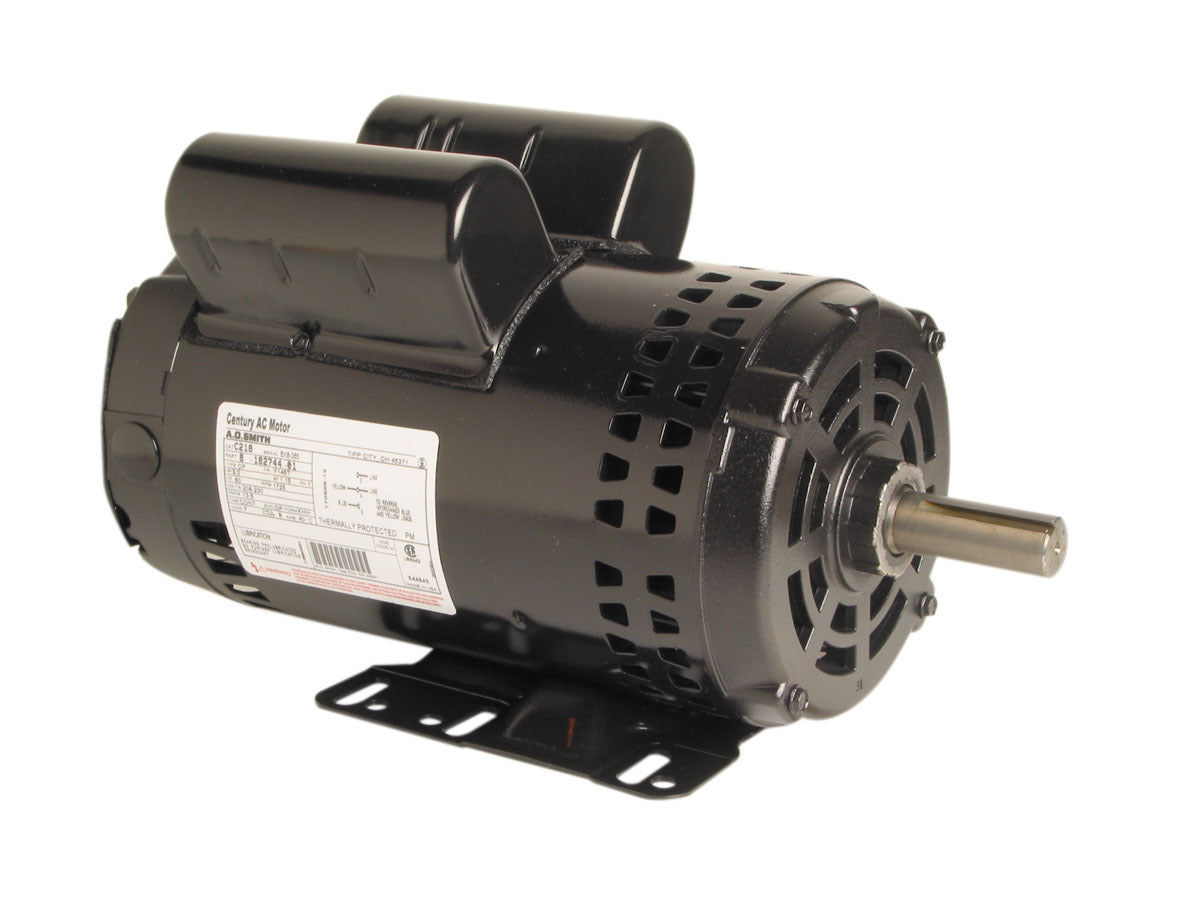

Century UC058 General Purpose Motor 3 HP 230V

Product Description

The Century UC058 is a general purpose motor suitable for various applications. This motor has 3 HP, operates at 230 volts, and has a 1725 RPM. It is thermally protected and features a keyed shaft.

• Capacitor Start, Capacitor Run
• Single or Dual Voltage
• 3 HP Power

Product Highlights

This motor promotes improved reliability and motor durability. It comes with a drip-proof enclosure and permanently lubricated bearings, extending the motor's lifetime.

Product Information

Standard Information

• Brand: Century
• MPN: UC058
• Frame: Y145T
• Voltage: 230
• Frequency: 60 Hz

Technical Specifications

• HP: 3
• RPM: 1725
• Amperage: 13.5
• Shaft Diameter: 0.875 inches
• Shaft Extension: 2.31 inches
• Material: Rolled Steel
• Mounting Type: Rigid Base
• Overload Protection: Thermally Protected
• Insulation Class: F
• Service Factor: 1.15
• Rotation: Reversible Counterclockwise
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• C Dimension: 15.06 inches
