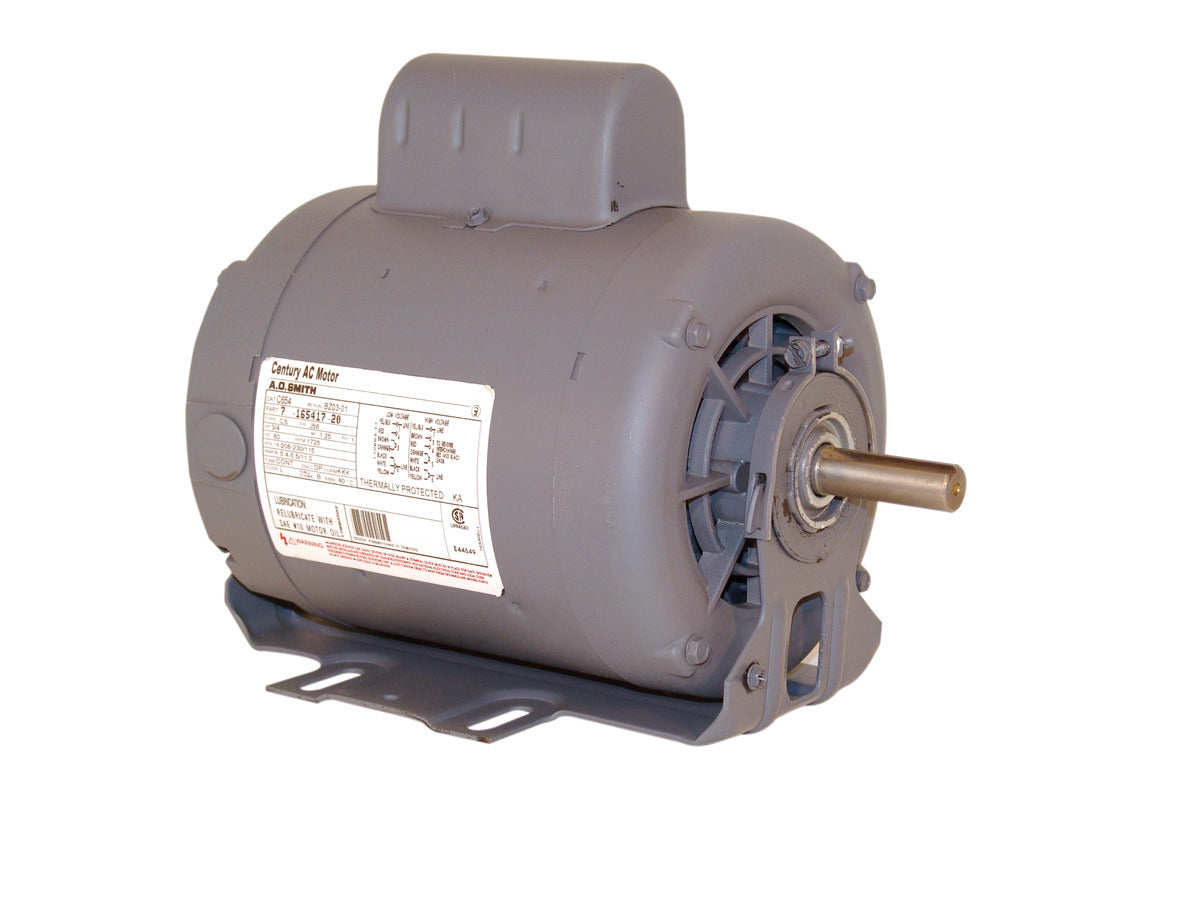

Century UC048 Direct Drive Motor 1/2 HP 115/230V

Product Description

The Century UC048 Direct Drive Motor is a robust and dependable motor designed for various HVAC applications. Its thermally protected system prevents overheating, while the Class B insulation ensures longevity under high temperatures. The motor's reversible counterclockwise rotation and totally enclosed air-over design make it versatile and safe for different uses.

• 1/2 HP Power Output
• Thermally Protected
• Reversible Counterclockwise Rotation

Product Highlights

This motor offers a continuous duty cycle and is suitable for various HVAC applications. Its design includes a totally enclosed air-over system and a fully gasketed structure to prevent contaminants from entering. The double-sealed bearings add to its durability.

Product Information

Standard Information

• Brand: Century
• Model: UC048
• Country of Origin: Mexico
• Certifications: UL Recognized, CSA Certified

Technical Specifications

• Electrical Type: Permanent Split Capacitor, Single or Dual Voltage
• HP: 1/2
• KW: 0.37
• RPM: 850
• Frame: K56Z
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Air Over
• Phase: 1
• Voltage: 115/230
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: Cushion Base
• Amperage: 6.6/3.3
• Shaft Type: Keyed
• Shaft Extension: 2.56 inches
• Shaft Diameter: 0.625 inches
• Insulation Class: B
• Duty: Continuous
• Frequency: 60 Hz
• Poles: 8
• Service Factor: 1
• Operating Temperature: 40°C
