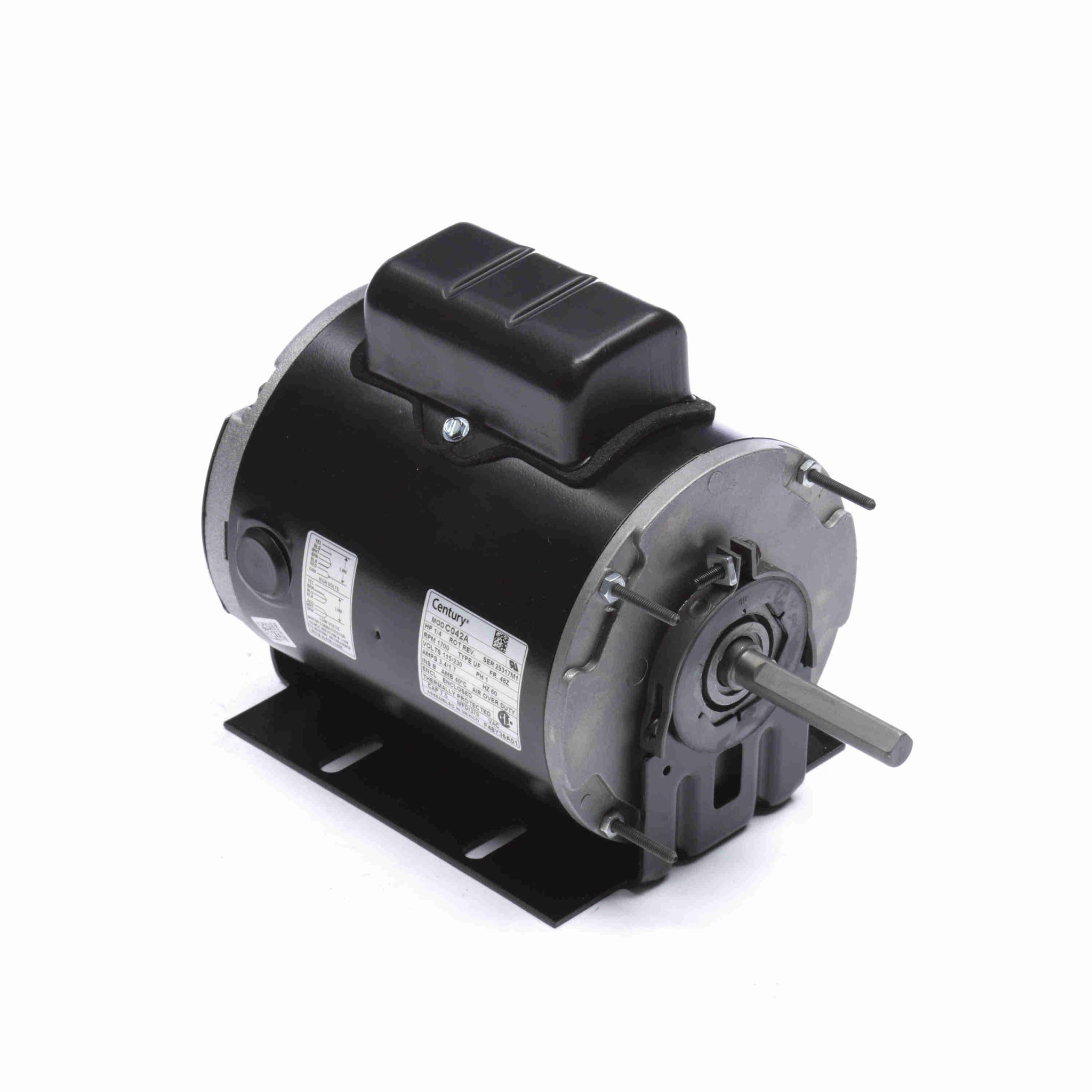

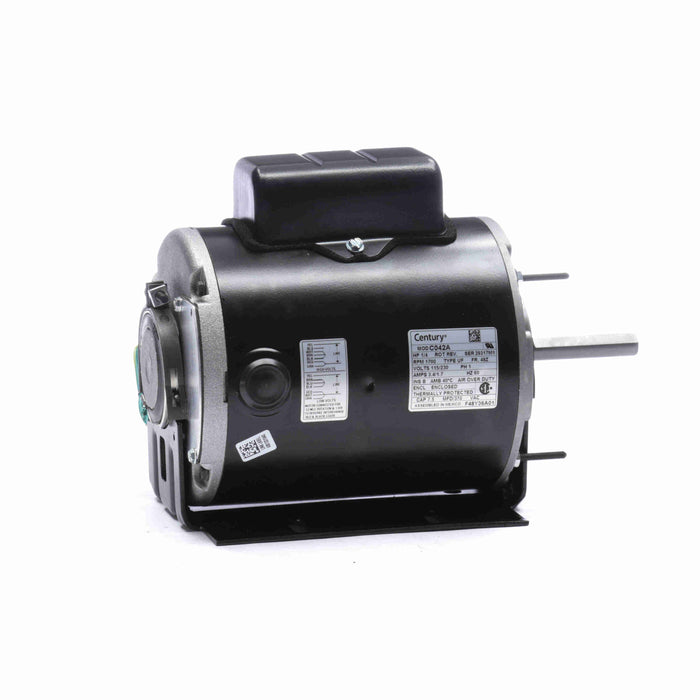

CENTURY MOTORS UC042 Direct Drive Motor 1/4 HP 115/230 Voltage

Product Description

The CENTURY MOTORS UC042 is a direct drive motor designed for various applications. This motor operates on 115/230 voltage and features a single-phase PSC design. It has a 48Z frame and a TEAO (Totally Enclosed Air Over) enclosure. The motor is constructed with rolled steel and includes ball bearings. It is designed for continuous duty and includes automatic thermal protection.

• Operates on 115/230 voltage at 60 Hz.
• Features a TEAO enclosure and a 48Z frame.
• Includes a 5/8 adapter and key.

Product Highlights

This motor is ideal for HVAC applications requiring reliable operation and durability.

Product Information

Standard Information

• Product Type: PSC (Permanent Split Capacitor)
• Horsepower: 1/4

Technical Specifications

• RPM: 1700
• Input Voltage: 115/230
• Input Current: 3.4/1.7
• Frequency: 60 Hz
• Phase: 1
• Frame Size: 48Z
• Enclosure Type: TEAO (Totally Enclosed Air Over)
• Mounting Type: Cradle/Stud
• Motor Diameter: 5-5/8
• Shaft Diameter: 1/2
• Shaft Length: 3-1/8
• Rotation: Reversible
• Number of Speeds: 1
• Service Factor: 1.00
• Bearings: Ball
• Thermal Protection: Automatic
• Maximum Ambient Temperature: 40° C
• Insulation Class: B
• Duty Cycle: Continuous
• Capacitor: 7.5MFD @ 370VAC (Included)
• Material: Rolled Steel
• Overload Protector: Auto
• Shaft Sleeve Key: Supplied
• Base: Resilient
• Power Rating (In HP): 0.25
• Power Rating (In KW): 0.19
• Frame: 48Z
• Max Ambient: 40°C
• Connection Drawing No: 614131-342
• DE Bearing Type: Ball
• Duty: Air Over
• Electrical Type: Permanent Split Capacitor
• Frame Length: 6
• Frame Material: Rolled Steel
• Frame Type: 48Z
• Number of Poles: 4
• ODE Bearing Type: Ball
• Outline Drawing No: C042A-S01
• Shaft Extension: 3.14
• Shaft Type: Flat
• Starting Type: Across The Line
