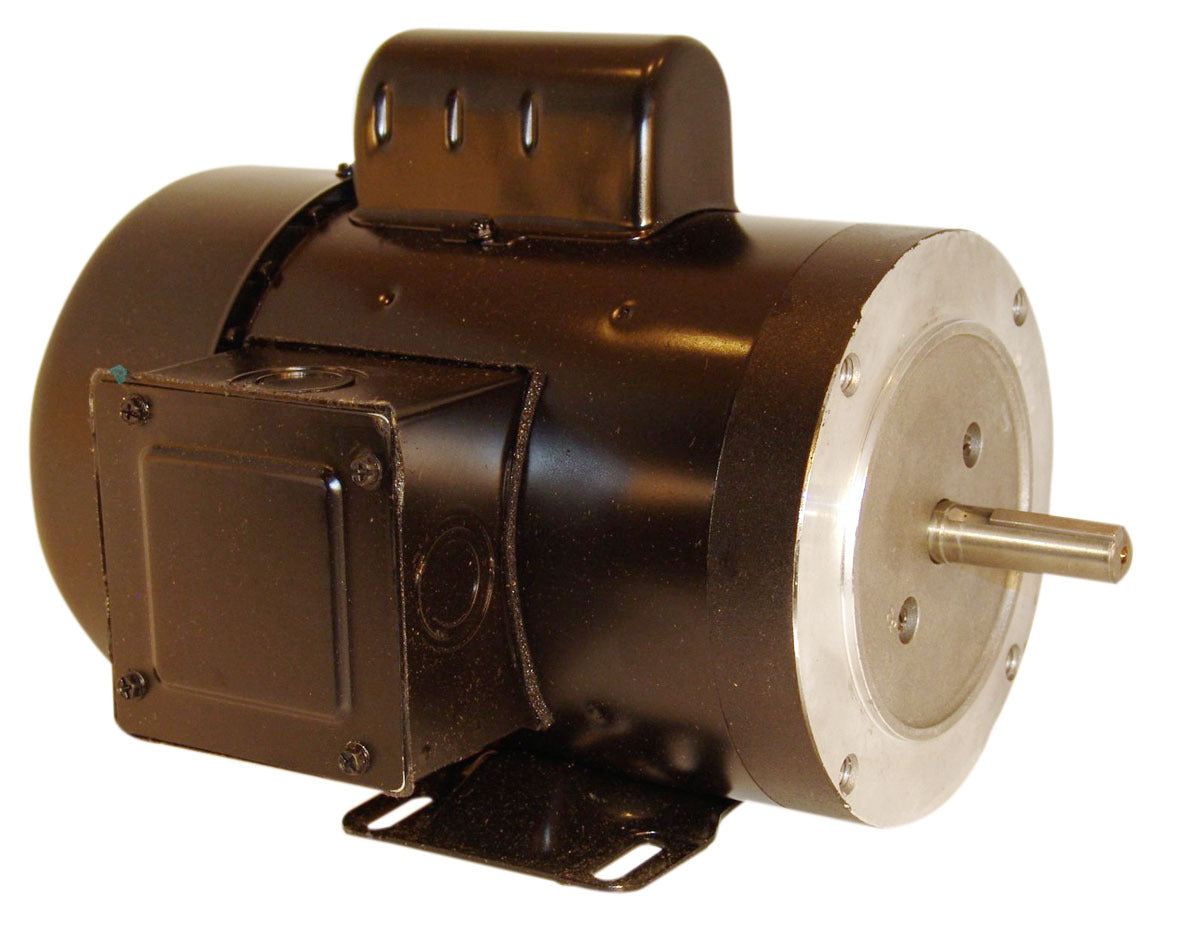

Century UB888 General Purpose Motor Capacitor Start 1/2 HP 115/208-230V 3450 RPM

Product Description

The Century UB888 General Purpose Motor is designed for a variety of applications requiring reliable motor performance. This motor is equipped with a capacitor start and induction run electrical type for optimal operational efficiency. Rated at 1/2 horsepower, it operates with a voltage of 115/208-230 volts and a speed of 3450 RPM.

• Capacitor start design enhances motor torque and efficiency
• Durable rolled steel construction ensures longevity
• Permanently lubricated sealed bearings for extended motor life

Product Highlights

This motor features a totally enclosed fan-cooled enclosure to protect against external elements, enhancing durability. The reversible counterclockwise rotation makes it adaptable for various applications. It has a continuous duty cycle, allowing maximum operation at the rated power.

Product Information

Standard Information

• Brand: Century
• MPN: UB888

Technical Specifications

• Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage
• HP: 1/2
• KW: 0.37
• Frame: J56C
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Fan Cooled
• Phase: 1
• Voltage: 115/208-230
• Rotation: Reversible Counterclockwise
• Overload: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 7.4/3.5-3.7
• Shaft Type: Keyed
• Shaft Extension: 2.070
• Shaft Diameter: 0.625
• RPM: 3450
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: B
• Service Factor: 1.15
• Start Method: Across The Line
