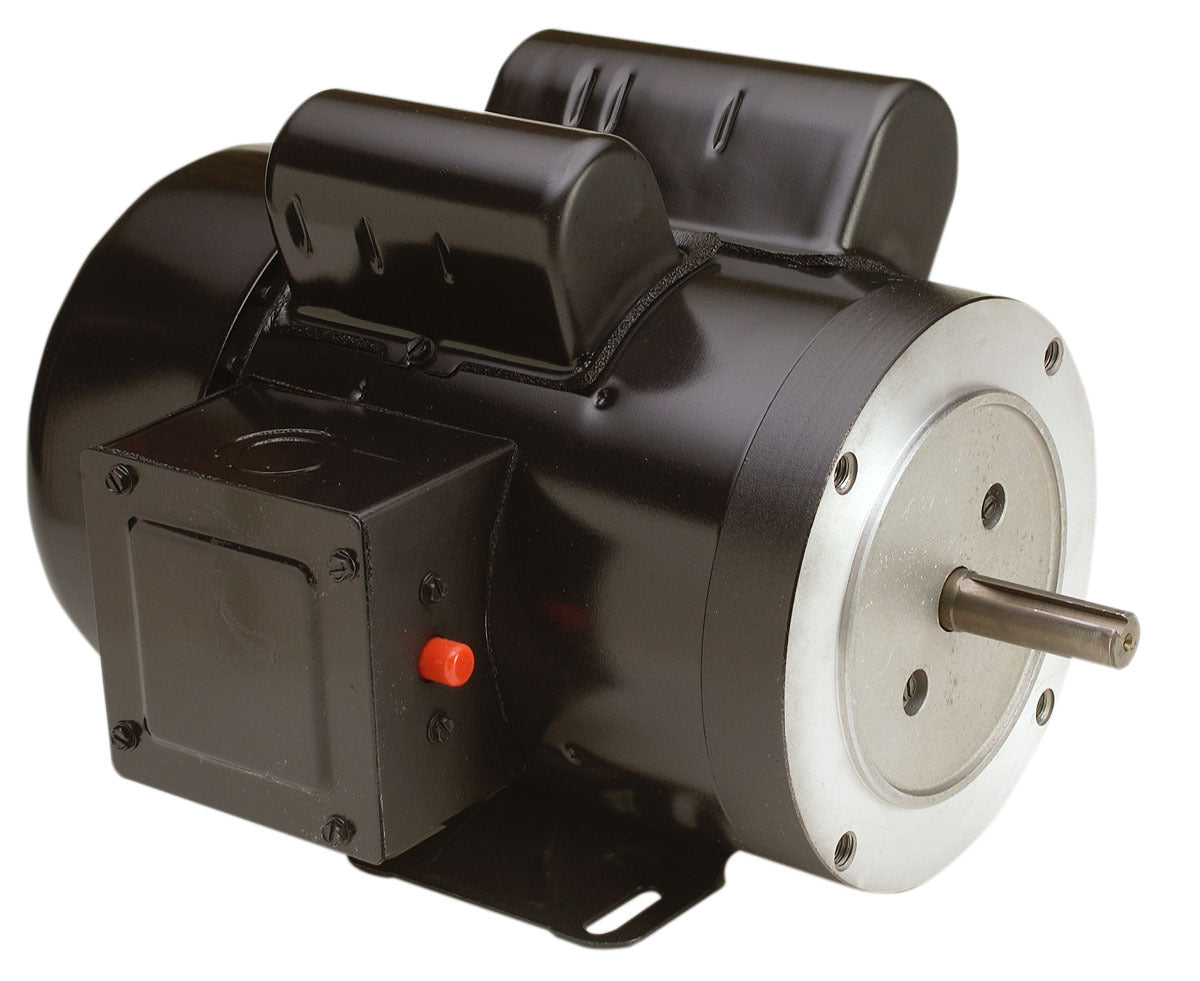

Century UB871 General Purpose Motor 1.5 HP 115/230 volts 3450 RPM

Product Description

The Century UB871 General Purpose Motor is a versatile and reliable solution for various industrial applications. Designed with capacitor start and capacitor run mechanism, it ensures efficient performance. It operates at a power of 1.5 HP and supports dual voltage of 115 and 230 volts.

• Totally enclosed fan cooled design
• Rigid base mounting
• Thermally protected for safety

Product Highlights

This motor is ideal for continuous duty cycles. Its heavy-duty rolled steel construction provides durability while the permanently lubricated sealed bearings enhance longevity. The capacitor start design optimizes motor torque and efficiency.

Product Information

Standard Information

• Brand: Century
• MPN: UB871
• Motor Type: General Purpose
• Phase: Single
• Voltage: 115/230 volts
• Amperage: 13.0/6.5

Technical Specifications

• Horsepower: 1.5
• Frame: T56C
• Diameter: 6.5 inches
• RPM: 3450
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2.07 inches
• Enclosure: Totally Enclosed Fan Cooled
• Material: Rolled Steel
• Overload Protection: Thermally Protected
• Bearings Type: Ball (DE and ODE)
• Mounting: Rigid Base
• Frequency: 60 Hz
• Insulation Class: B
• Number of Poles: 2
• Service Factor: 1.15
