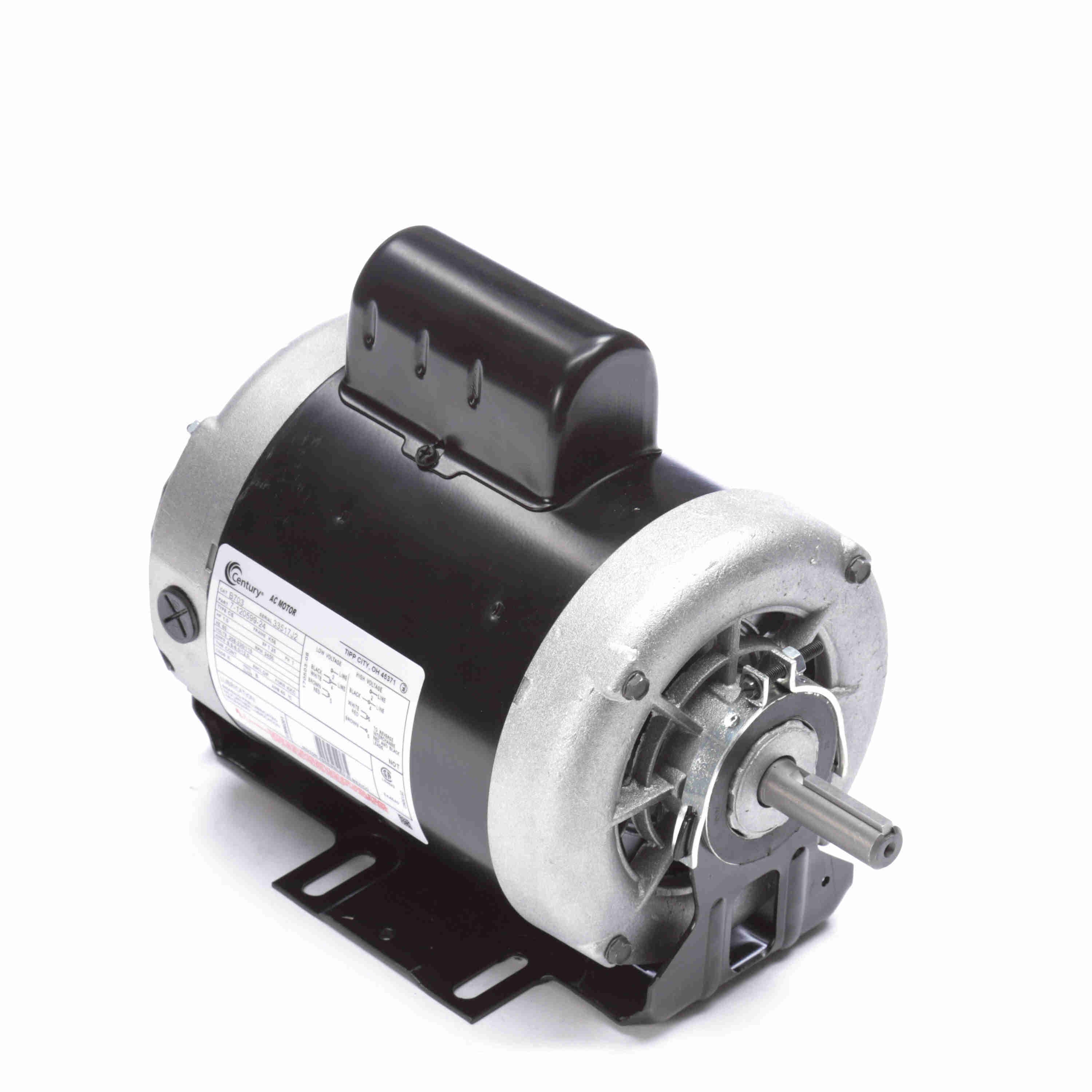

Century UB837 General Purpose Motor 2 HP 3450 RPM Drip Proof 208-230/115V

Product Description

The Century UB837 General Purpose Motor is a 2 HP motor designed for various electrical applications. It features capacitor start, capacitor run, single or dual voltage options. The motor operates at 3450 RPM and is housed in a drip-proof enclosure.

• 2 HP motor
• 3450 RPM speed
• Capacitor start and run

Product Highlights

This general-purpose motor offers premium efficiency and durability. Its rolled steel construction and permanently lubricated, double-sealed ball bearings ensure a long operational life.

Product Information

Standard Information

• Brand: Century
• MPN: UB837
• Voltage: 208-230/115V
• Horsepower: 2 HP
• RPM: 3450

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• HP: 2
• KW: 1.5
• Frame: L56
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 208-230/115
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Cushion Base
• Amperage: 10.0-9.5/19.0
• Shaft Type: Keyed
• Shaft Extension: 1.94 inches
• Shaft Diameter: 0.625 inches
• RPM: 3450
• UL Component: Recognized
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Capacitor Run Voltage
• Ambient Temperature: 40C
• Duty: Continuous
• Frequency: 60
• Insulation Class: B
• Poles: 2
• Service Factor: 1.2
• Start Method: Across The Line
