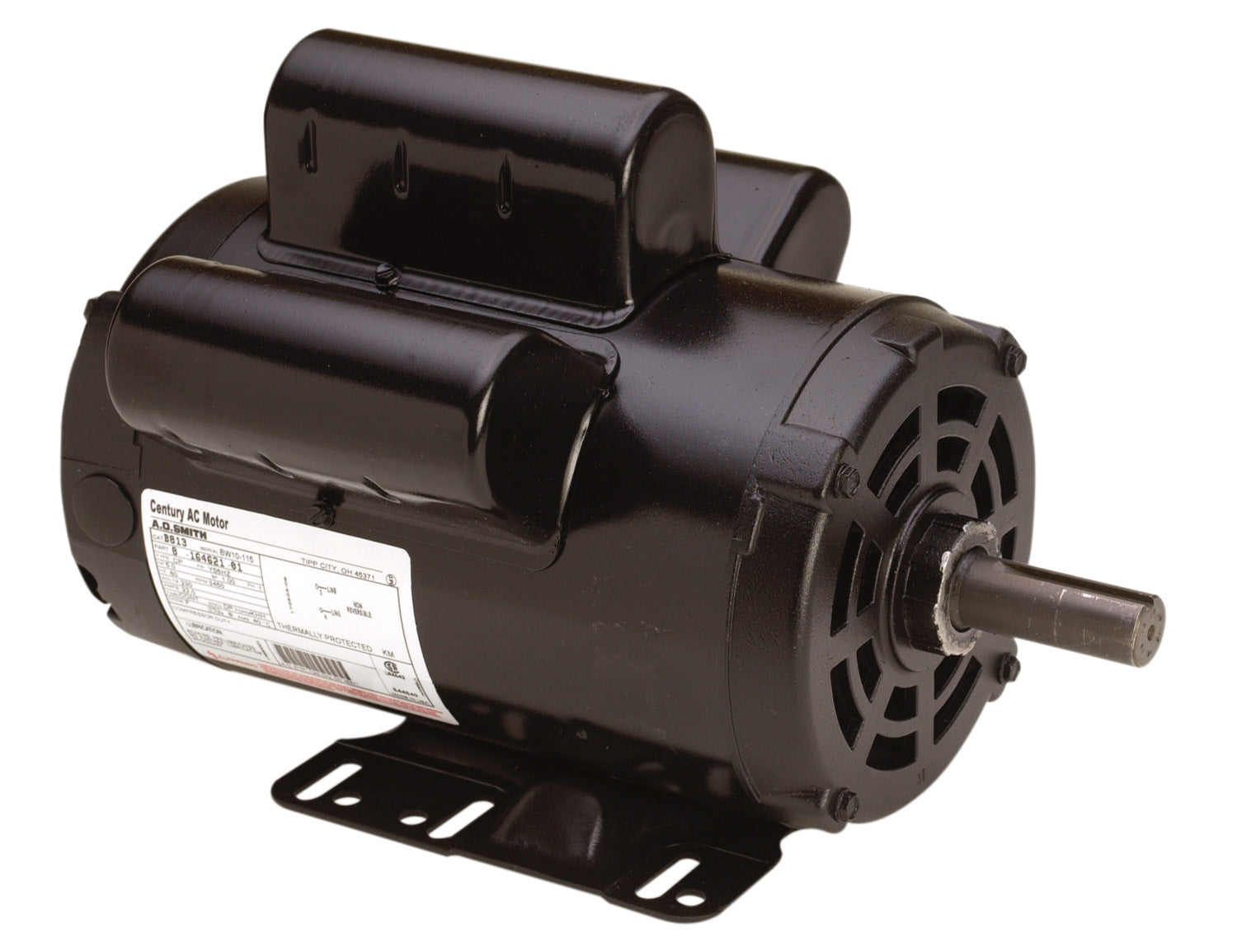

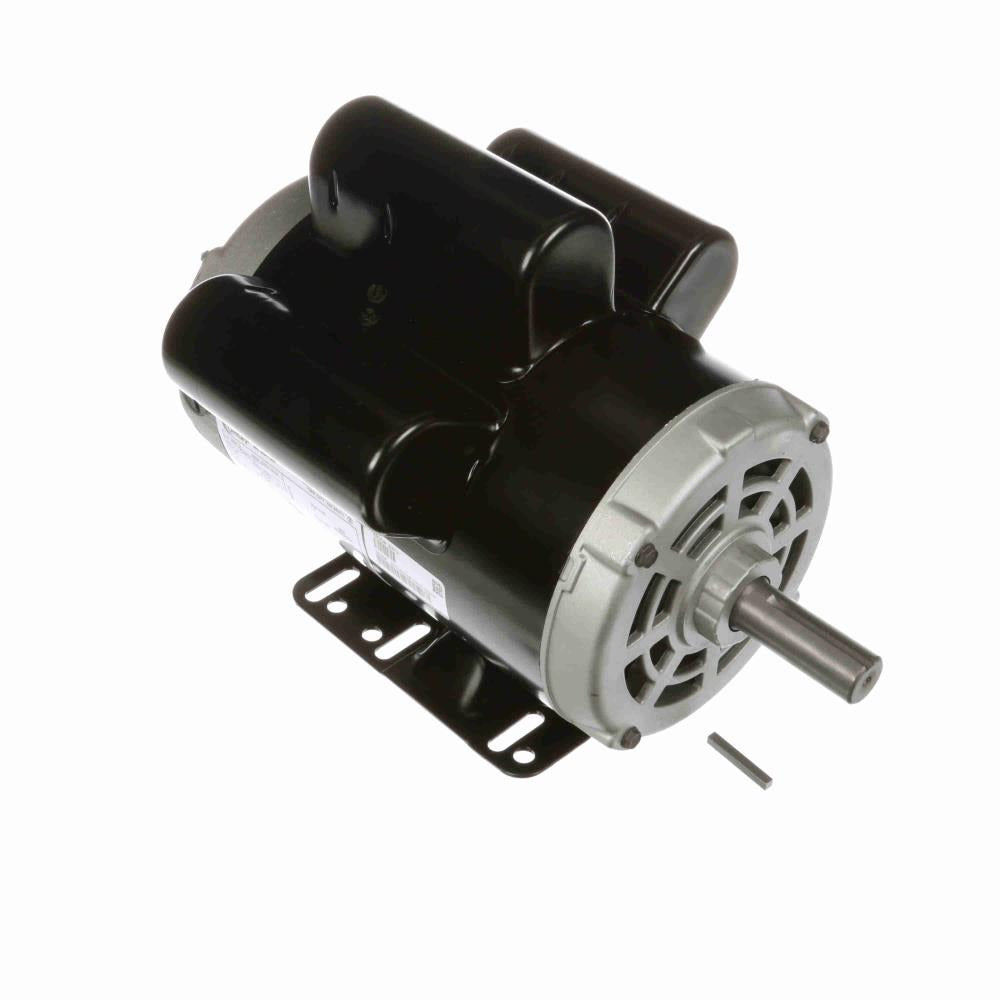

Century UB813 Air Compressor Motor 5 HP 3.7 KW

Product Description

The Century UB813 Air Compressor Motor is a robust and efficient motor designed for demanding air compressor applications. It features capacitor start and capacitor run for low-amp, high-efficiency performance.

• 5 horsepower
• 3.7 kW
• 230 volts

Product Highlights

The Century UB813 motor is ideal for air compressor systems, providing reliable and efficient performance. It is thermally protected and built with rolled steel for durability.

Product Information

Standard Information

• Brand: Century
• MPN: UB813

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Horsepower: 5 HP
• Frame: Y56HZ
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 230
• Rotation: Clockwise
• Overload: Thermally Protected
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 22.0
• Shaft Type: Keyed
• KW: 3.7
• RPM: 3450
• Shaft Diameter: 0.875 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 2.310
• UL Recognized: Yes
• CSA Certified: Yes
