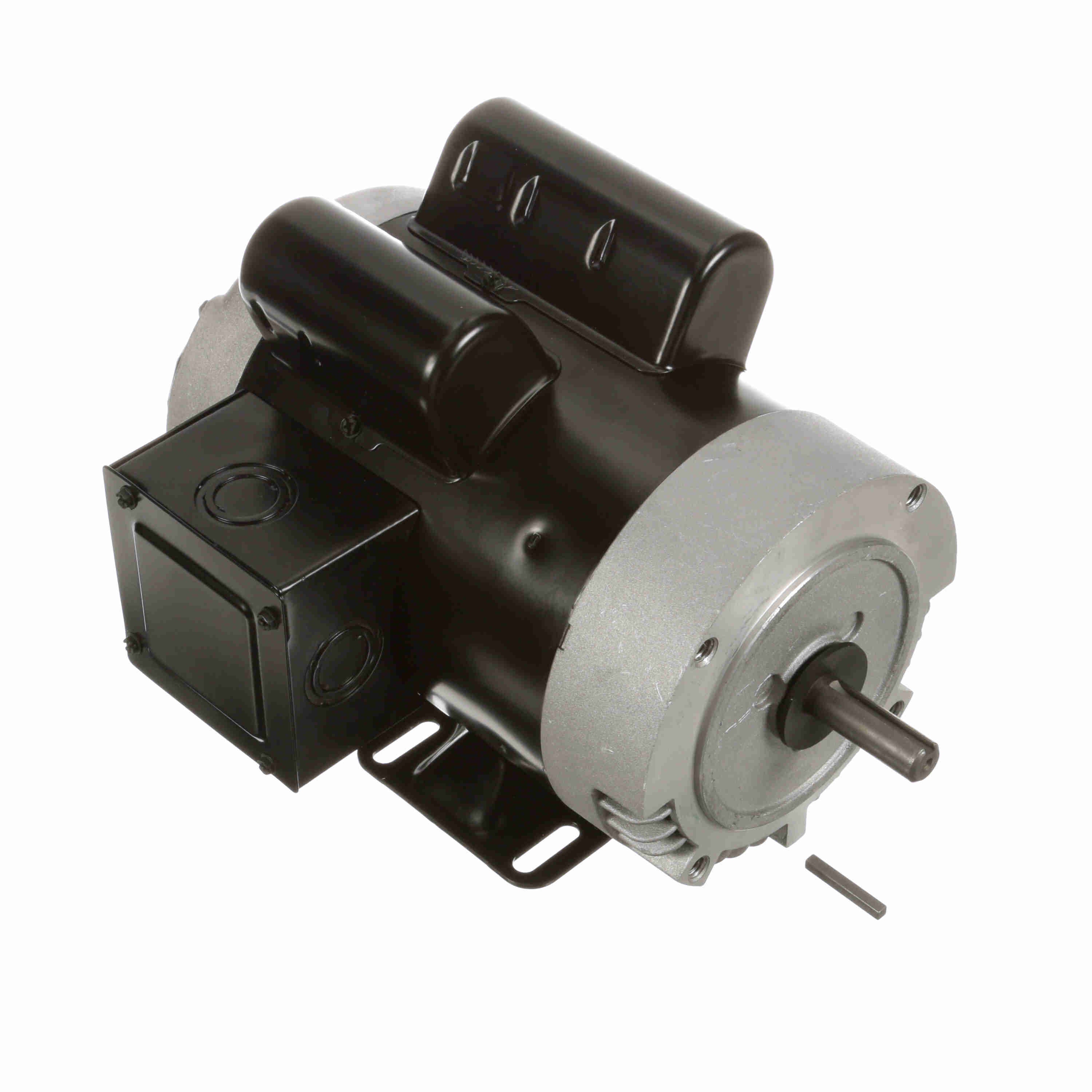

Century UB764ES General Purpose Motor 2 HP L56C Frame

Product Description

Century UB764ES General Purpose Motor is designed for various industrial applications. It provides a reliable and efficient performance, making it suitable for numerous tasks.

• Capacitor start, capacitor run
• Single or dual voltage operation
• Thermally protected

Product Highlights

This motor includes features such as a durable rolled steel construction, permanently lubricated bearings, and reversible counterclockwise rotation. It is designed for continuous duty and operates at 115/230 volts.

Product Information

Standard Information

• Brand: Century
• MPN: UB764ES

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• HP: 2
• KW: 1.5
• Frame: L56C
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 115/230
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 17.8/8.9
• Shaft Type: Keyed
• RPM: 3450
• Shaft Diameter: 0.625 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 1.88 inches
• Overload: Thermally Protected
• Efficiency: 83
• Frequency: 60
• Service Factor: 1.15
• Insulation Class: B
• Poles: 2
• Duty: Continuous
