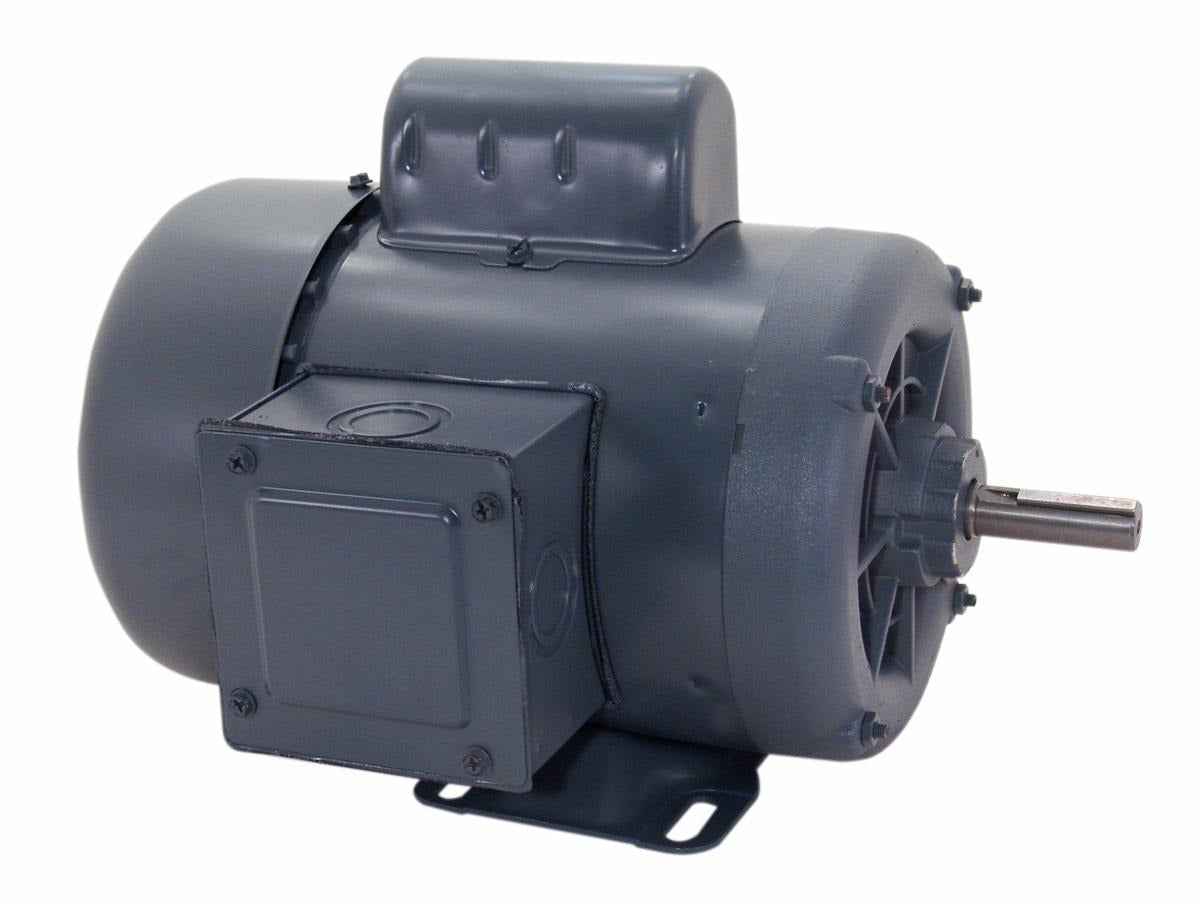

Century UB695 General Purpose Motor 1.0 HP

Product Description

The Century UB695 is a general purpose motor with a power of one horsepower. This motor operates on a dual-voltage system and features a reversible counterclockwise rotation. Built with heavy-duty rolled steel, it offers durability suitable for various applications. The motor includes permanently lubricated sealed bearings, which extend its lifespan.

• Continuous duty cycle design allows maximum operation at the rated power.
• Thermally protected against overload, ensuring safety during use.
• Robust construction with a totally enclosed fan-cooled enclosure.

Product Highlights

This motor is ideal for HVAC systems, pumps, and other machinery requiring reliable performance.

Product Information

Standard Information

• Brand: Century
• MPN: UB695

Technical Specifications

• Power Rating: 1 HP
• Voltage: 208-230/115
• Amperage: 6.1-6.0/12.0
• RPM: 3450
• Frame Size: J56
• Diameter: 6.5 inches
• Shaft Diameter: 0.625 inches
• Weight: 32 lbs
