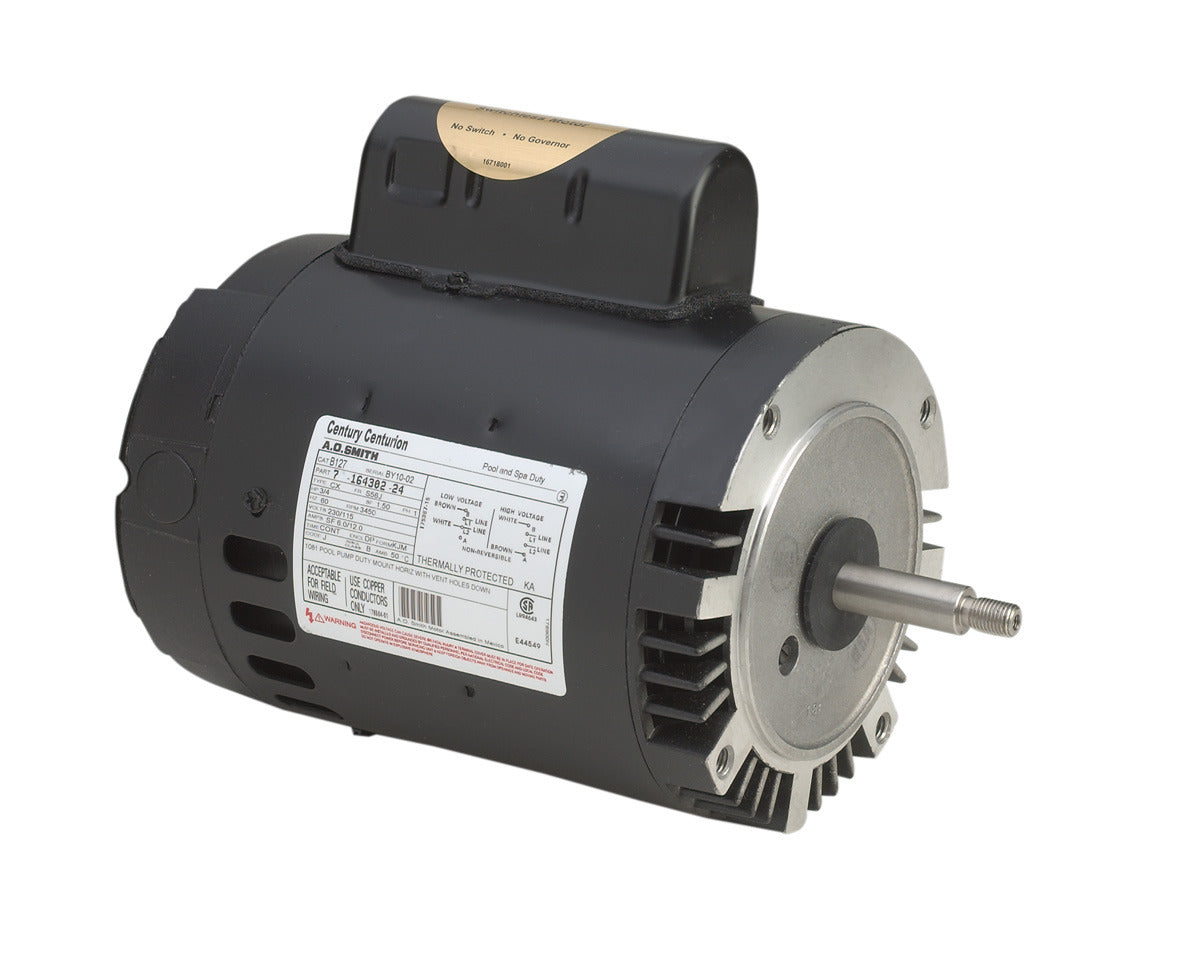

Century UB638 Pool and Spa Motor 3/4 HP 208-230/115V

Product Description

The Century UB638 Pool and Spa Motor is designed for reliable and efficient performance. This motor is a key component for pool and spa applications, ensuring smooth and efficient operation.

• Permanent Split Capacitor, Single Or Dual Voltage
• 3/4 HP Motor
• Thermally Protected

Product Highlights

This motor is a 3/4 HP Permanent Split Capacitor motor, designed for single or dual voltage applications. It features a drip-proof enclosure and rolled steel construction for added durability. The motor operates at 3450 RPM and is thermally protected for safety. It has ball bearings for smooth operation and a counterclockwise rotation at the pump end.

Product Information

Standard Information

• Brand: Century
• MPN: UB638

Technical Specifications

• HP: 3/4
• KW: 0.56
• Frame: U56J
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 208-230/115
• Rotation: Counterclockwise Pump End
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Round
• Orientation: Horizontal
• Amperage: SF 5.4-5.0/10.0
• Shaft Type: 7/16 Threaded
• Shaft Extension: 2.604 inches
• Shaft Diameter: 0.625 inches
• RPM: 3450
• Overload: Thermally Protected
