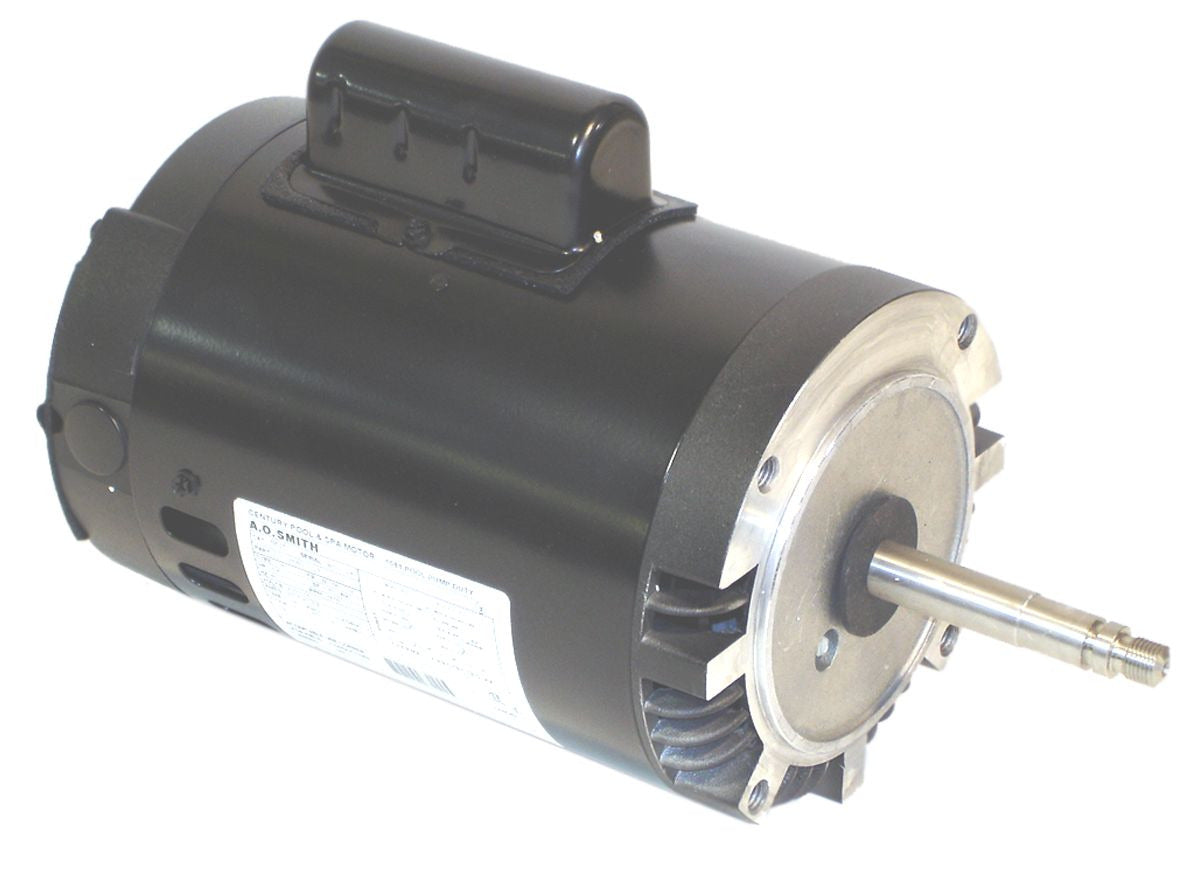

Century UB625 Pool and Spa Motor 0.75 HP 230/115V

Product Description

The Century UB625 pool and spa motor delivers reliable performance for various pool and spa applications. Designed to operate at 0.75 HP, this motor supports both 230V and 115V, providing flexibility and compatibility with different setups.

• 0.75 HP power
• Runs on 230V and 115V
• Thermally protected

Product Highlights

This pool and spa motor is ideal for ensuring consistent water flow and efficient operation. It features ball bearings for smooth motion and a drip-proof enclosure to protect against moisture.

Product Information

Standard Information

• Brand: Century
• Model: UB625
• Type: Pool and Spa Motor
• Certification: UL Recognized

Technical Specifications

• HP: 0.75
• Voltage: 230/115
• Frame: N56CZ
• Amperage: 6.4/12.8
• RPM: 3450
• Material: Rolled Steel
• Orientation: Horizontal
• Enclosure: Drip Proof
• Shaft Diameter: 0.665 inches
• Shaft Extension: 3.82 inches
• Phase: 1
• Rotation: Counterclockwise Pump End
• Bearings Type: Ball/Ball
• Overload Protection: Thermally Protected
• Ambient Temperature: 40°C
• Frequency: 60 Hz
• Insulation Class: B
• Service Factor: 1.5
