Product Description

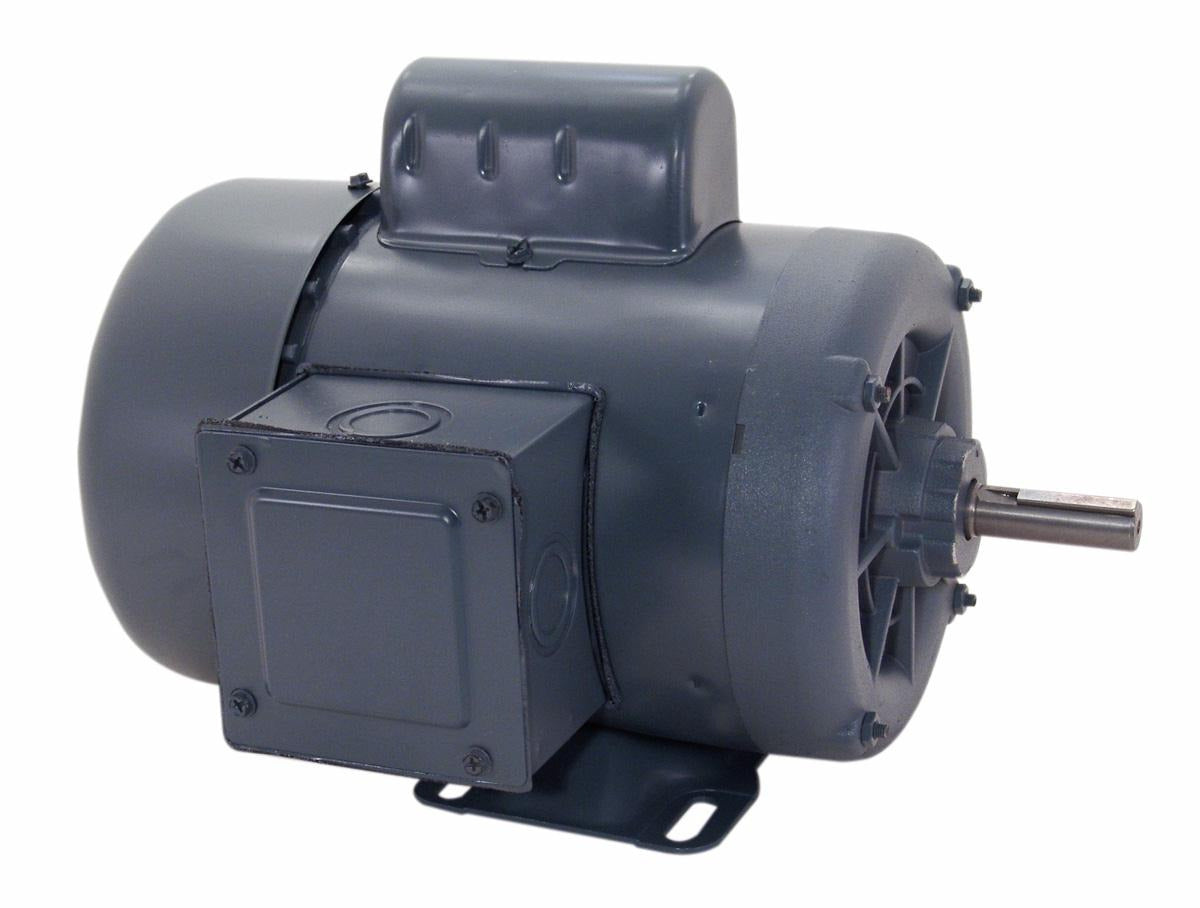

The Century UB621 Agricultural Fan Motor provides reliable performance for agricultural applications. This single-phase motor has a power output of 0.5 HP and features a capacitor start, induction run mechanism.
- 115/208-230 volts
- 3450 RPM
- Rigid base mounting
Product Highlights
This 0.5 HP motor is designed for agricultural fans and offers total enclosure to protect against environmental elements.
Product Information
Standard Information
-
Brand: Century
-
MPN: UB621
-
Country of Origin: Mexico
-
Weight: 25 lbs
Technical Specifications
-
Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage
-
HP: 0.5
-
Frame: H56
-
Diameter: 6.5 inches
-
Enclosure: Totally Enclosed Fan Cooled
-
Phase: 1
-
Voltage: 115/208-230
-
Rotation: Reversible Counterclockwise
-
Material: Rolled Steel
-
Amperage: 7.4/3.7-3.7
-
Shaft Type: Keyed
-
KW: 0.37
-
RPM: 3450
-
Shaft Diameter: 0.625 inches
-
Bearings DE Type: Ball
-
Bearings ODE Type: Ball
-
Shaft Extension: 1.94 inches
-
Mounting: Rigid Base
-
Frequency: 60 Hz
-
Insulation Class: B
-
Poles: 2
-
Service Factor: 1.15
-
Frame Prefix: H
-
Frame Size: 56
-
Frame Suffix: C
