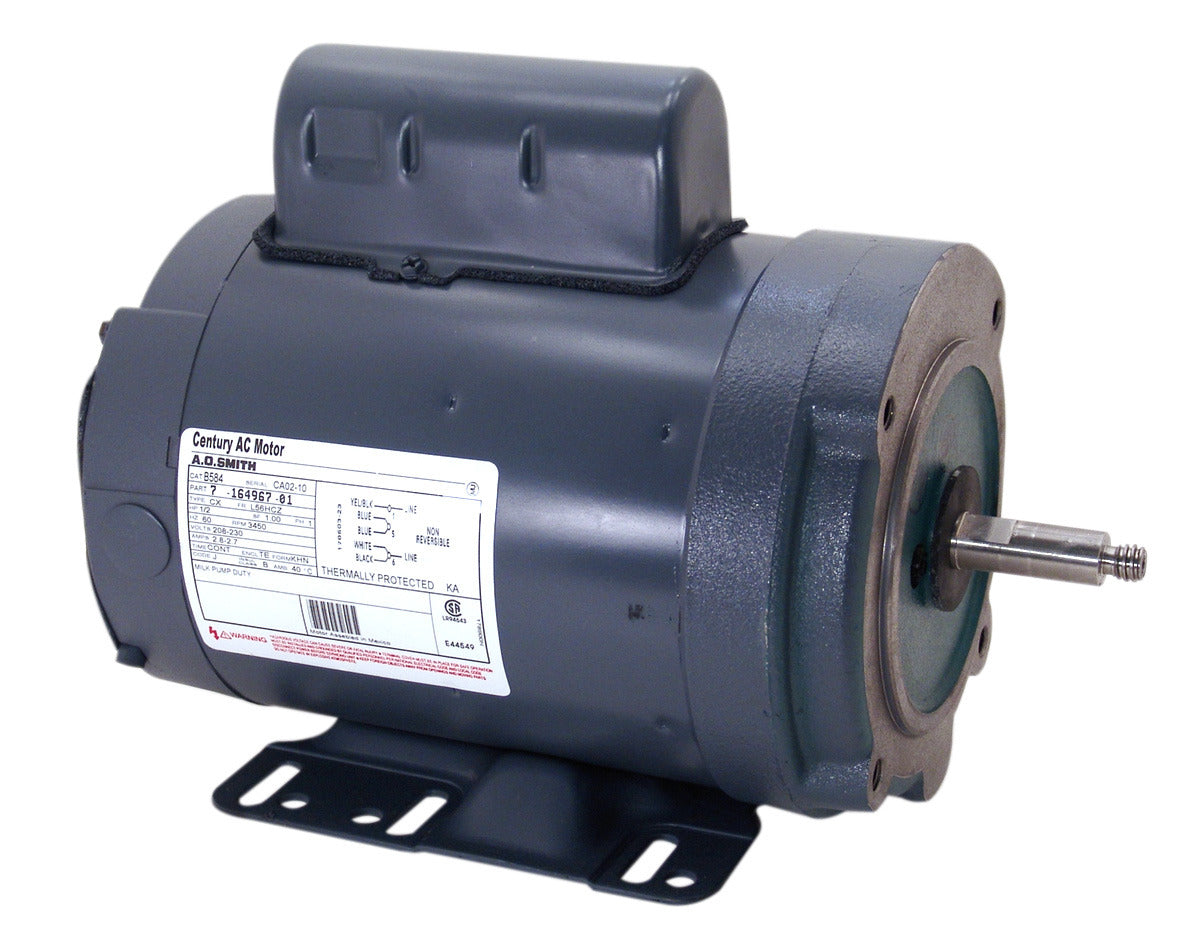

Century UB586 General Purpose Farm Duty Motor 1 HP 3450 RPM Rigid Base

Product Description

The Century UB586 General Purpose Farm Duty Motor is designed for various agricultural applications. With a 1 HP motor, operating at 3450 RPM, it ensures reliable and efficient performance. This motor features a totally enclosed non-ventilated design, protecting it from harsh environments.

• Permanent Split Capacitor
• Single or Dual Voltage
• Rigid Base Mounting

Product Highlights

Delivering 1 HP power, this motor is ideal for farm and agricultural use. It ensures smooth operation with its high RPM and durable construction.

Product Information

Standard Information

• Brand: Century
• MPN: UB586

Technical Specifications

• Electrical Type: Permanent Split Capacitor, Single or Dual Voltage
• HP: 1
• KW: 0.75
• Frame: L56HCZ
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Non-Ventilated
• Phase: 1
• Voltage: 208-230
• Rotation: Clockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 4.8-4.5
• Shaft Type: Threaded
• Shaft Extension: 2.33 inches
• Shaft Diameter: 0.625 inches
• RPM: 3450
• Overload: Thermally Protected
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 2
• Service Factor: 1
• Shaft Diameter: 0.625 inches
